Sinotruk HOWO Cement Mixer Truck The Perfect Addition to Your Construction Equipment
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use
The Sinotruk Hydraulic Concrete Mixer Truck is a state-of-the-art vehicle specifically designed for the efficient transportation of concrete to construction sites. Its unique design, often compared to a field snail or olive car, ensures unrivaled efficiency in carrying mixed concrete. Featuring cylindrical mixers crafted for optimal performance, this truck is an indispensable asset for any construction project.The mixing drum of the Sinotruk Hydraulic Concrete Mixer Truck is in constant rotation during transit, ensuring the concrete remains in its fluid state. Upon reaching the destination, the drum is thoroughly rinsed with water to prevent any residual concrete from hardening, thereby maintaining its full operational capacity and longevity.
Basic Info.
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |
Product Description

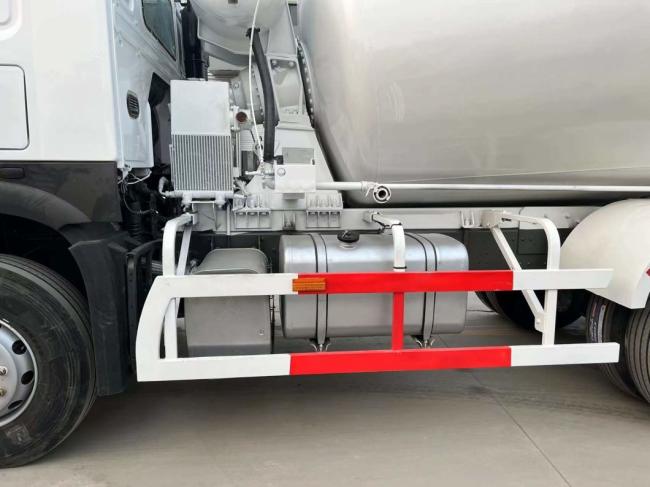

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
| brand | Sinotruk Howo | |
| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro II | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |


We offer an extensive range of used tipper trucks,tractors, and concrete mixer trucks, all from 2013 onward. Each vehicle is in impeccable condition and available at exceptionally competitive prices!For more detailed photos and comprehensive information, please contact us.



Matters Needing Attention
1. Conduct a thorough inspection of all mechanical components before starting the vehicle. Only proceed if the system is confirmed to be in perfect condition.
2. Ensure the mixing lever is in the 'neutral' position before starting the engine.
3. Once the engine is running, switch the mixing lever to the 'discharge' position to expel any residual water from the cylinder.
4. During loading, position the stirring operating rod in the 'loading' setting.
5. Secure the discharge groove in the 'traveling' position before starting transportation to prevent any swinging.
6. When maneuvering the joystick, always allow a brief pause in the 'neutral' position before moving to the next setting.
7. Adhere to high standards of civilized construction practices: avoid indiscriminate disposal of excess materials. After discharging, thoroughly clean the mixing drum, tank, roller, and other components. When entering the cylinder to remove concrete residues, ensure the vehicle is off, the key is removed, and supervision is provided from outside.
Our Factory
Shipment
We typically ship our trucks via RO-RO vessel or bulk vessel. Special container shipping arrangements can also be made upon request.
Original Spare Parts
We provide authentic spare parts. Our diligent after-sales service team, managed by the After-market Division, guarantees exceptional support and an efficient supply chain for swift parts delivery.
Our Product
Thank You for Choosing Us
Q: How about the delivery time?
A: We typically have most of our trucks and machines in stock, allowing for delivery within 7 days. Custom orders usually require a production time of approximately 30 days.
Q: How many units of trucks do you produce annually?
A: We manufacture approximately 30,000 units annually, with nearly 5,000 units updated monthly.
Q: How do you control product quality?
A: Our factory is equipped with a state-of-the-art production workshop staffed by highly trained workers. Each product undergoes rigorous inspections. We also recondition trucks and machines through a professional and meticulous process.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we do accept custom orders. Our minimum order quantity (MOQ) is just 1 unit.
