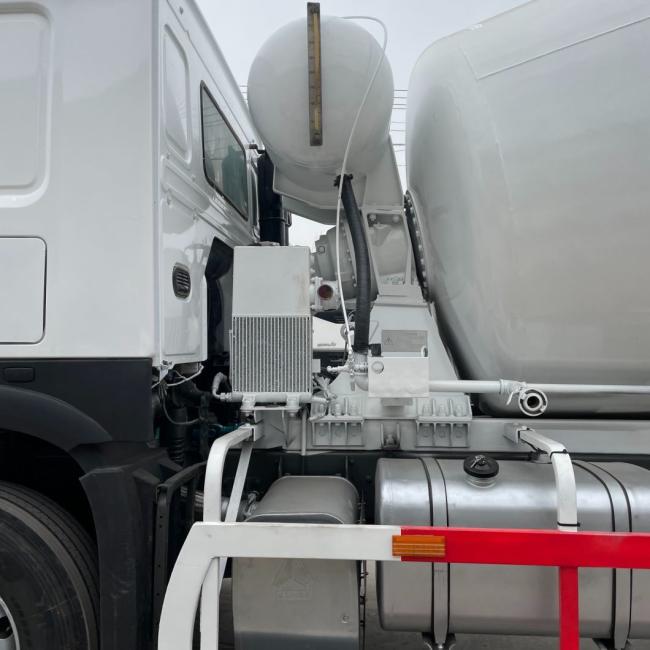

Sinotruk Cement Mixer Truck 8x4 Drive Mode and Tyre for Heavy Construction Projects
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Description
Basic Information
| Drive type: | 8X4 | Body size: | 10.175×2.496×3.125 m |
| Front overhang/rear overhang: | 1.5/1.7 m | Wheelbase: | 1800+3600+1350mm |
| Vehicle weight: | 11.25 tons | Maximum speed: | 80km/h |
| Front track/rear track: | Front track: 2041/2041mm; Rear track: 1830/1830mm | | |
Engine parameters
| engine model: | Sinotruk D10.38-50 | Fuel type: | diesel fuel |
| Number of cylinders: | 6 cylinders | Maximum output power: | 276kW |
| Maximum horsepower: | 380 hp | Displacement: | 9.726L |
| Emission Standards: | National Five | Engine Type: | Inline six-cylinder, water-cooled, four-stroke, supercharged, intercooled, high-pressure common rail |
| Rated speed: | 2000RPM | | |
Upload parameters
| Vehicle type: | Concrete mixer truck | Top brand: | Sinotruk HOWO (HOWO) |
| Vehicle Origin: | Tangshan, Hebei | Stirring volume: | 5.5m³ |
Gearbox parameters
| Gearbox Model: | Sinotruk 10th gear | Number of gears: | 10 levels |
Chassis parameters
| Chassis Brand: | Sinotruk HOWO (HOWO) | Chassis Model: | ZZ1317N3667E1 |
| Chassis series: | HOWO-7 | Speed ratio: | 4.8 |
| Number of springs: | 11/11/12 | | |
tire
| Number of tires: | 12 | Tire specifications: | 12.00R20 16PR, 12.00-20 16PR |
| brand | Sinotruk Howo | |
| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro II | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
Our Factory
Shipment
Original Spare Parts
Our Product
Thank You for Choosing Us
Q: How about the delivery time?
A: We typically have most of our trucks and machines in stock, allowing for delivery within 7 days. Custom orders usually require a production time of approximately 30 days.
Q: How many units of trucks do you produce annually?
A: We manufacture approximately 30,000 units annually, with nearly 5,000 units updated monthly.
Q: How do you control product quality?
A: Our factory is equipped with a state-of-the-art production workshop staffed by highly trained workers. Each product undergoes rigorous inspections. We also recondition trucks and machines through a professional and meticulous process.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we do accept custom orders. Our minimum order quantity (MOQ) is just 1 unit.
