30T Payload HOWO Heavy-Duty 12m3 Concrete Mixing Truck for Your Construction Business
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use
The Mixer Truck is a specialized vehicle designed for transporting concrete used in construction projects. Due to its unique shape, it's often referred to as a field snail car or olive car. Equipped with cylindrical mixers, these trucks ensure the safe and efficient conveyance of pre-mixed concrete.
The mixing drum continuously rotates during transit to prevent the concrete from setting. Post-delivery, the drum is washed with water to remove residual concrete, ensuring the drum's capacity remains optimal for future use.
Basic Info.
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |
Product Description
Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
| brand | Sinotruk Howo | |
| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |

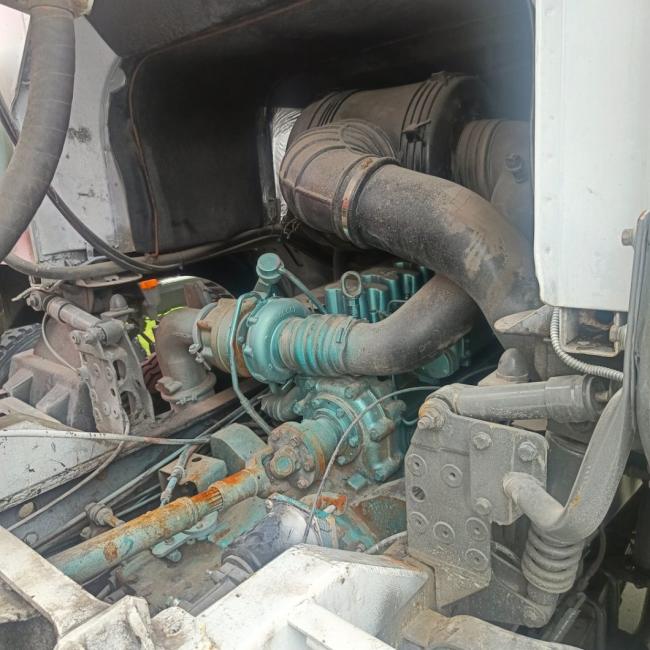

| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro 3 | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
We provide a wide range of used tipper trucks,tractor trucks, and concrete mixer trucks from 2013 onwards, all in excellent condition and competitively priced!For more photos and details, please contact us.
Matters Needing Attention
1. Thoroughly inspect all parts of the mechanical system before starting to ensure everything is in good working condition.
2. Before starting, ensure the mixing lever is in the "neutral" position.
3. After starting, switch the mixing lever to the "discharge" position to clear any water from the cylinder.
4. When loading, set the stirring operating rod to the "loading" position.
5. Secure the discharge groove in the "traveling" position before transportation to prevent it from swinging.
6. When operating the joystick, it should briefly stay in the "neutral" position before moving to the next position.
7. Maintain a clean work area; do not pour excess materials randomly. After discharge, clean the mixing drum, tank, roller, and related parts. When entering the cylinder to remove concrete clumps, ensure the vehicle is off, the switch key is removed, and someone is monitoring from outside.
Our Factory
Shipment
We typically ship trucks by RO-RO vessel or bulk vessel, with the option to use special containers if required.
Original Spare Parts
We supply genuine spare parts. Our comprehensive after-sales service system ensures excellent support, utilizing an efficient supply chain for prompt delivery.
