ISO9000 Certified 12m3 Beiben Concrete Mixer Truck Initial Payment Sinotruk Chassis
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use
The Sinotruk Chassis HOWO 12m3 Standard Concrete Mixer Truck is a masterfully engineered marvel, designed for the flawless transportation of concrete to diverse construction sites. Its unique design, often compared to a field snail car or olive car, is equipped with state-of-the-art cylindrical mixers, ensuring the safe and efficient conveyance of pre-mixed concrete. This guarantees your projects proceed without a hitch.
The innovative mixing drum of our truck is in continuous rotation during transit to prevent concrete from hardening. After delivery, the drum is meticulously cleaned with water to remove any residual concrete, ensuring the drum remains in peak condition and ready for future tasks.
Basic Info.
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |
Product Description

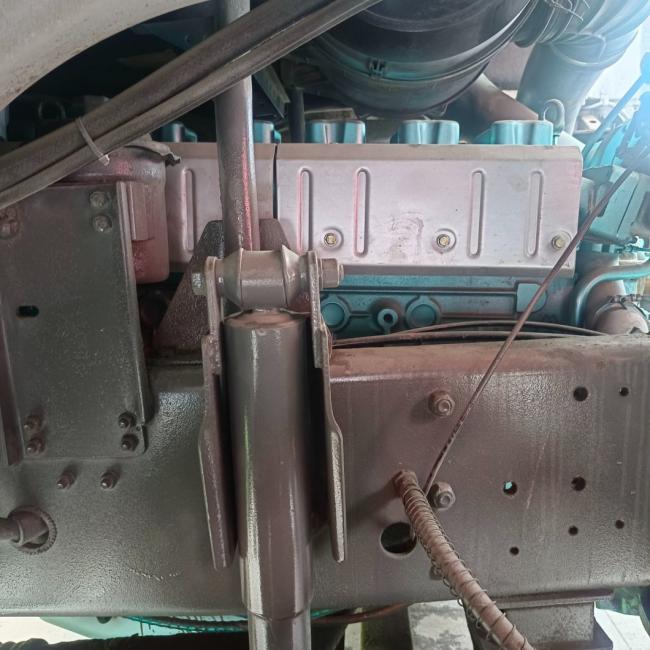

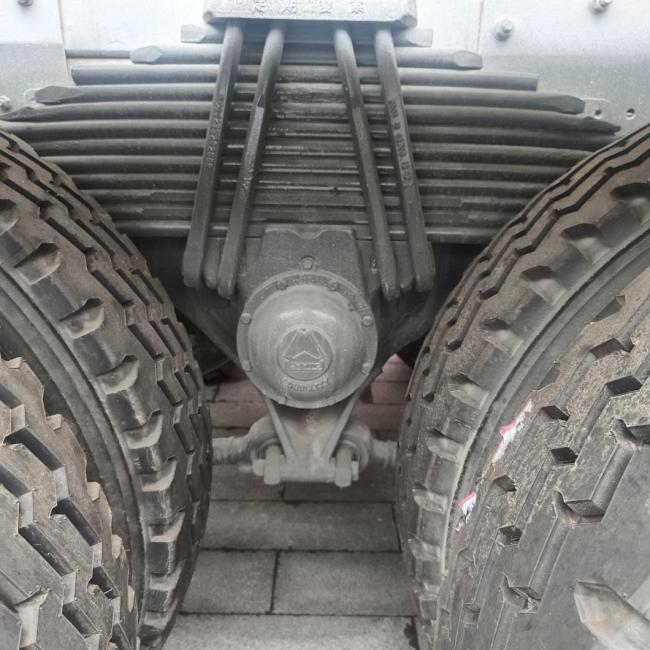

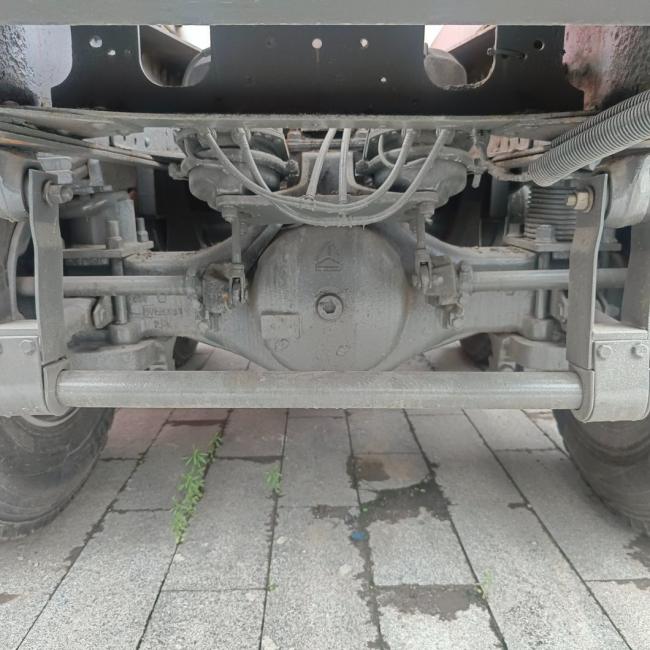

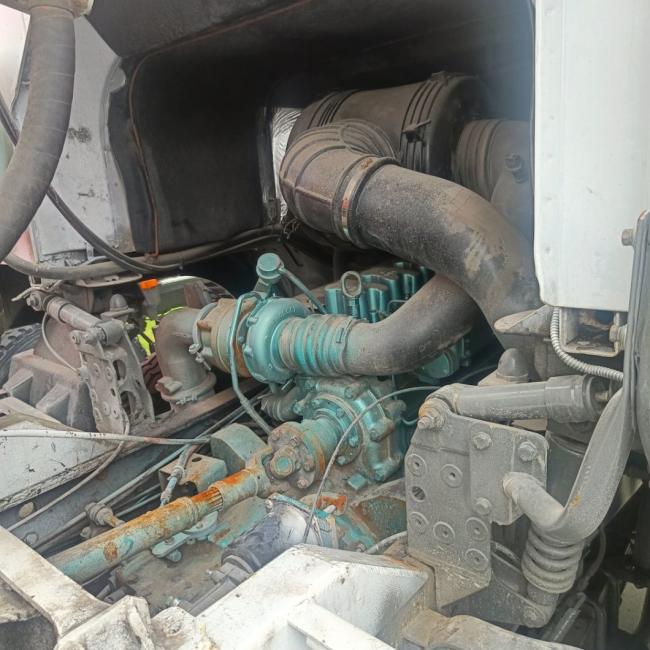

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
| brand | Sinotruk Howo | |
| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro 3 | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
We offer a premium selection of used tipper trucks,tractor trucks, and concrete mixer trucks from the year 2013 onwards. Each vehicle is in exceptional condition and available at highly competitive prices!For more photos and detailed information, please contact us.
Matters Needing Attention1. Conduct a thorough inspection of all parts of the mechanical system before starting to ensure flawless operation.
2. Before starting, ensure the mixing lever is set to the 'neutral' position.
3. After starting, switch the mixing lever to the 'discharge' position to expel any water from the cylinder.
4. When loading, adjust the stirring operating rod to the 'loading' position.
5. Secure the discharge groove in the 'traveling' position before transportation to prevent it from swinging.
6. During joystick operation, briefly pause in the 'neutral' position before moving to the next position.
7. Maintain a spotless work area; avoid pouring excess materials haphazardly. After discharging, clean the mixing drum, tank, roller, and related components. If entering the cylinder to remove concrete clumps, ensure the vehicle is off, the switch key is removed, and have someone monitor from outside.
Our Factory
Shipment
We typically ship our trucks via RO-RO vessel or bulk vessel. Specialized containers can also be arranged if required.
Original Spare Parts
We offer genuine spare parts complemented by an extensive after-sales service system that guarantees exceptional support. Our efficient supply chain ensures prompt and reliable delivery.
