12m3 Concrete Mixer Truck with Sinotruk Chassis and Durable Construction Vehicle
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Intended Applications
The Mixer Truck is a highly specialized vehicle, meticulously crafted for the seamless transportation of concrete, indispensable for a myriad of construction projects. Its unique design has earned it endearing nicknames such as the field snail car or olive car. Equipped with state-of-the-art cylindrical mixers, these trucks are essential in ensuring the safe, efficient, and timely delivery of pre-mixed concrete directly to your construction site.
The mixing drum continuously rotates during transit to prevent the concrete from setting. Following delivery, the drum undergoes an extensive water wash to remove any residual concrete, thereby preserving its capacity and ensuring readiness for subsequent uses.
Essential Information
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |
Comprehensive Product Description

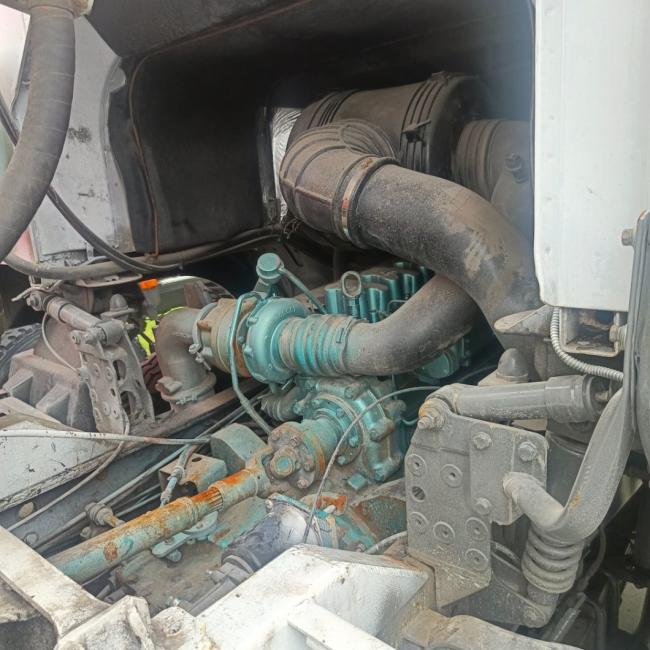

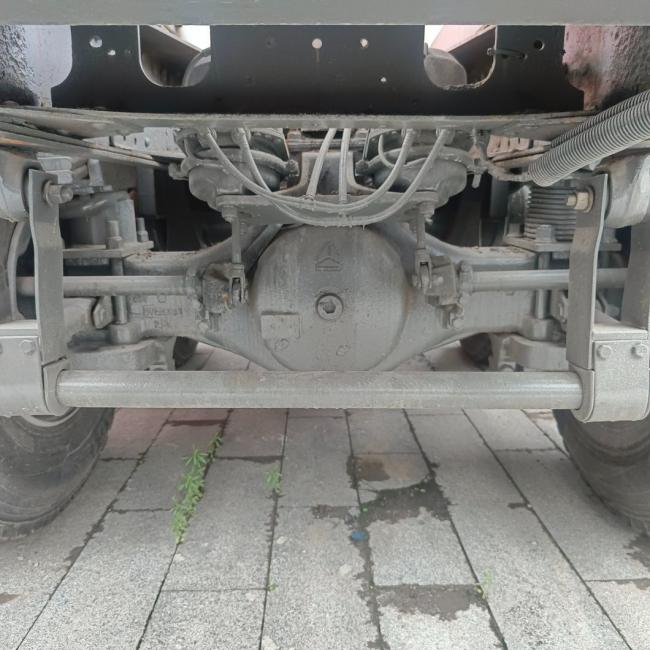

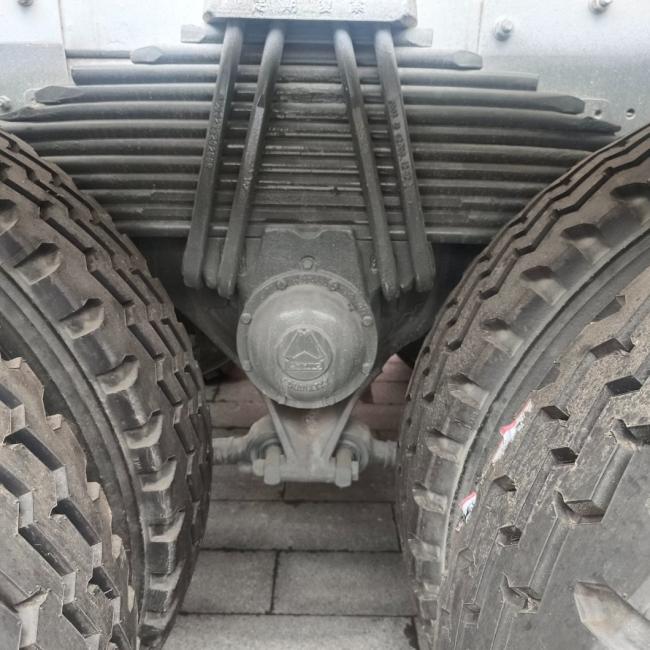

Discover an array of Detailed Pictures showcasing the SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
| brand | Sinotruk Howo | |
| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro 3 | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
We provide a broad assortment of top-quality used tipper trucks,tractor trucks, and concrete mixer trucks from 2013 onwards, all in excellent condition and offered at highly competitive prices!For further photos and detailed information, please do not hesitate to contact us.
Important Considerations1. Perform a thorough inspection of all mechanical systems before starting to ensure they are in optimal working condition.
2. Before ignition, verify that the mixing lever is set to the "neutral" position.
3. Once the engine is running, shift the mixing lever to the "discharge" position to expel any water from the cylinder.
4. During loading, adjust the stirring operating rod to the "loading" position.
5. Secure the discharge groove in the "traveling" position before transit to prevent any unwanted swinging.
6. When maneuvering the joystick, ensure it briefly pauses in the "neutral" position before transitioning to the next.
7. Maintain an immaculate work area; refrain from indiscriminate material disposal. Post-discharge, rigorously clean the mixing drum, tank, roller, and associated parts. If entering the cylinder to remove concrete lumps, ensure the vehicle is powered down, the key is removed, and supervision is present.
Our Manufacturing Facility
Shipping Information
We generally ship our trucks by RO-RO vessel or bulk vessel, with special containers available upon request.
Genuine Spare Parts
We supply authentic spare parts. Our robust after-sales service system ensures unparalleled support, utilizing an efficient supply chain for prompt and reliable delivery.
