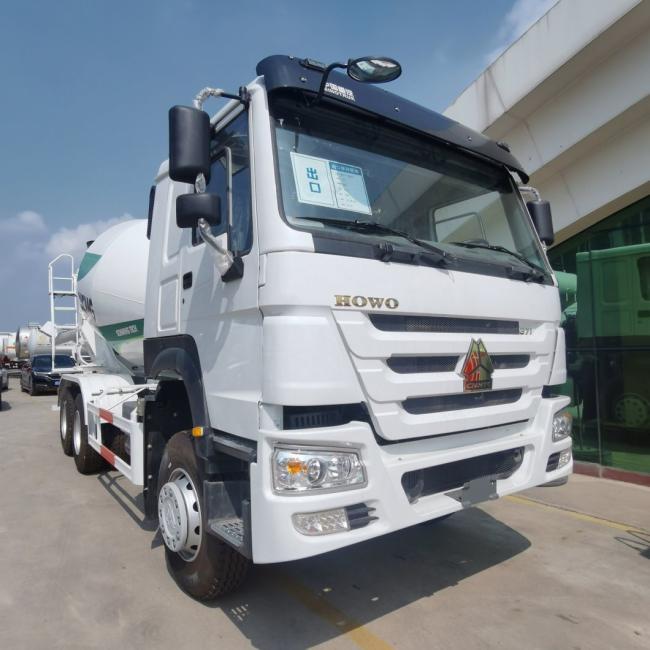

1024.00cm * 250.00cm * 345.00cm Heavy Duty Concrete Mixer Truck with Tyres and Hydraulic Steering
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use
The Mixer Truck is a specialized vehicle meticulously engineered for transporting concrete to construction projects. Fondly referred to as the 'field snail car' or 'olive car' due to its unique shape, these trucks come fitted with cylindrical mixers, playing a crucial role in delivering mixed concrete to various construction sites.
During transit, the mixing drum keeps rotating continuously, ensuring that the concrete remains unset. After delivery, the mixing cylinder is meticulously washed with water to prevent any residual concrete from hardening, thereby preserving the full capacity of the mixing drum for future operations.
Basic Info.
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |
Product Description

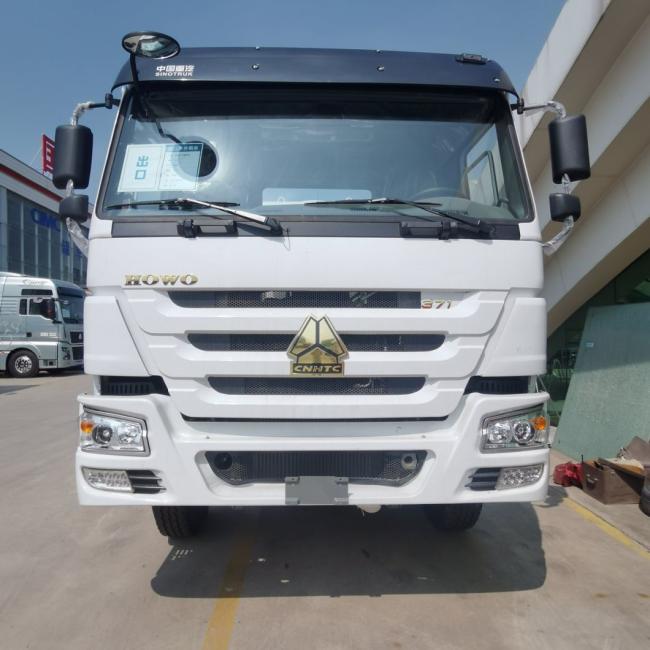

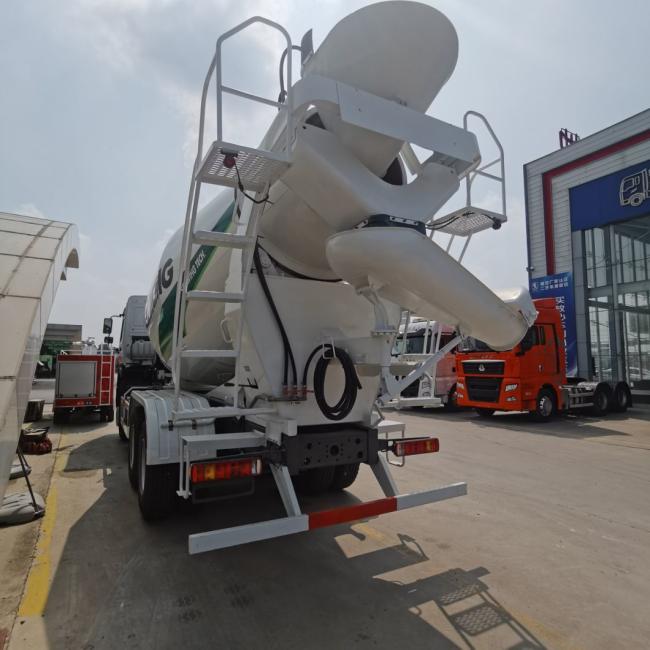

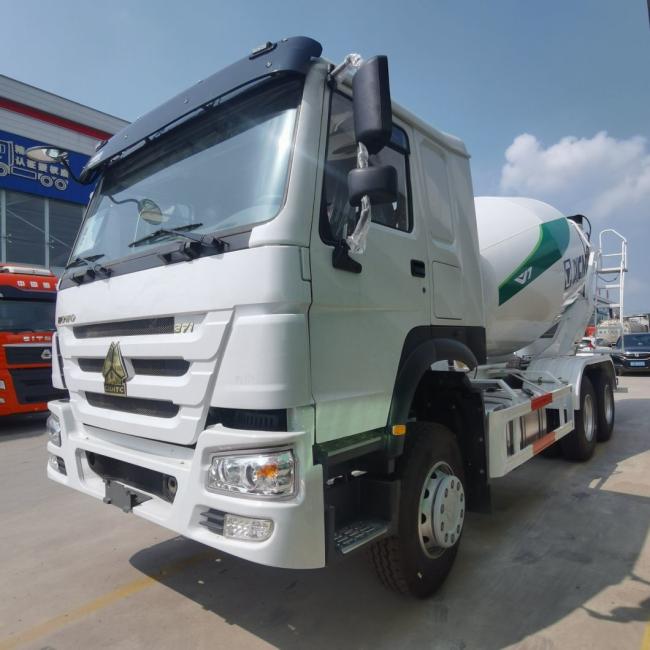

Exquisite Imagery for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
|
brand
|
Sinotruk Howo
|
|
|

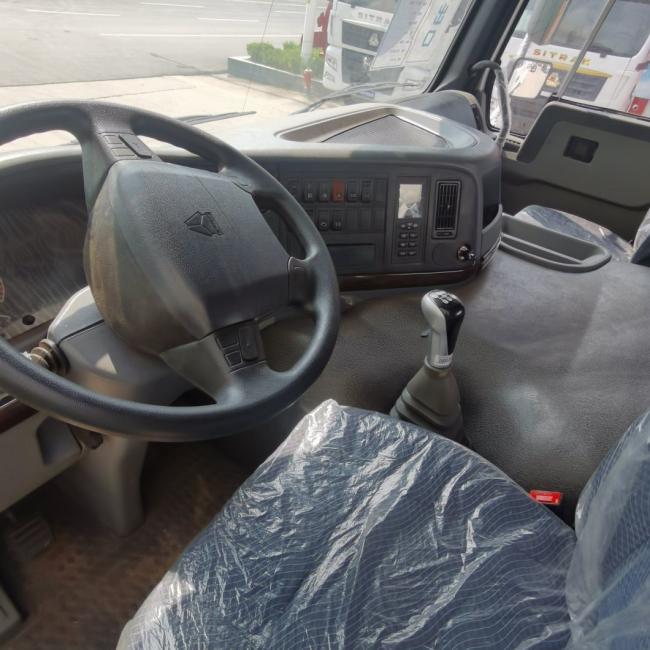

Cabin
|
Driving type 6x4, LHD
|
|
|
HW76 single bed
|
||
|
Vehicle Main Dimensions
|
Overall dimensions (L x W x H)mm
|
10245x2496x3450
|
|
Wheel base (mm)
|
3600+1350
|
|
|
Wheel track (front/rear) (mm)
|
2022/2022
|
|
|
Approach/Departure angle(°)
|
16/24
|
|
|
Max. driving speed(km/h)
|
90
|
|
|

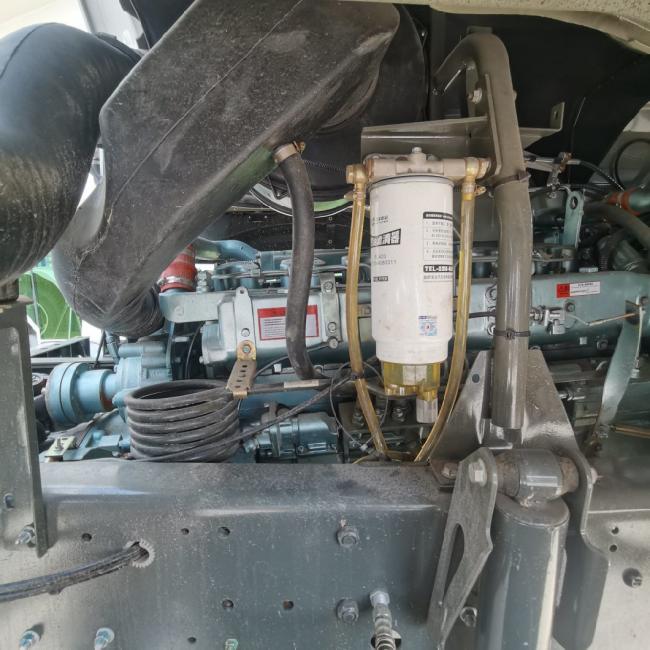

Engine
|
Type
|
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|
Model
|
WD615.47
|
|
|
Horse Power(HP)
|
371
|
|
|
Emission standard
|
Euro II
|
|
|
Gearbox
|
10 forwards & 2 reverse
|
|
|
Steering
|
Left hand drive
|
|
|
Tire
|
12R22.5 tubeless tires with one spare
|
|
|

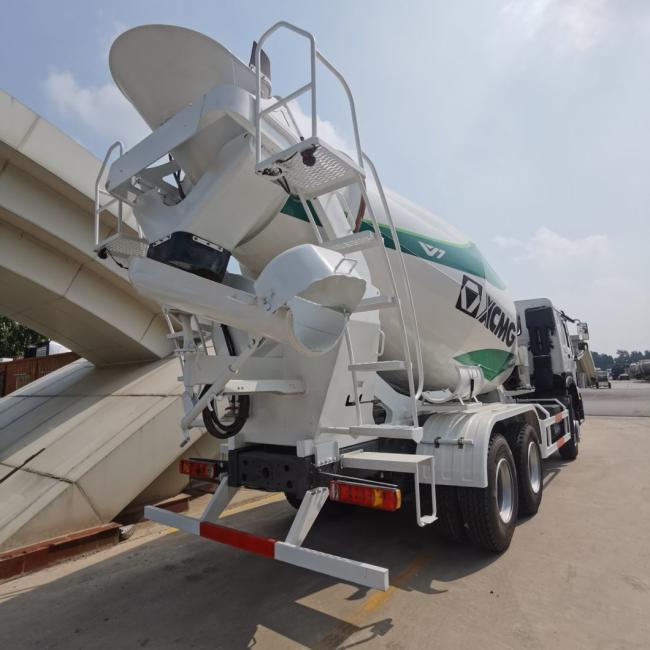

Mixer Drum
|
Mixer Capacity
|
16 cubic meters
|
|
Drum thickness
|
6mm
|
|
|
Blade thickness
|
4mm
|
|
|
Tanker Material:
|
16MnQ345 Carbon Steel
|
|
|
Filling Rate(%)
|
59
|
|
|
Input Speed (m3/min)
|
≥2.8
|
|
|
Output Speed (m3/min)
|
≥1.2
|
|
|
Surplus Ratio
|
≤0.5
|
|
|
|
Tanker Rotate Speed(rpm)
|
0~17
|
|
|

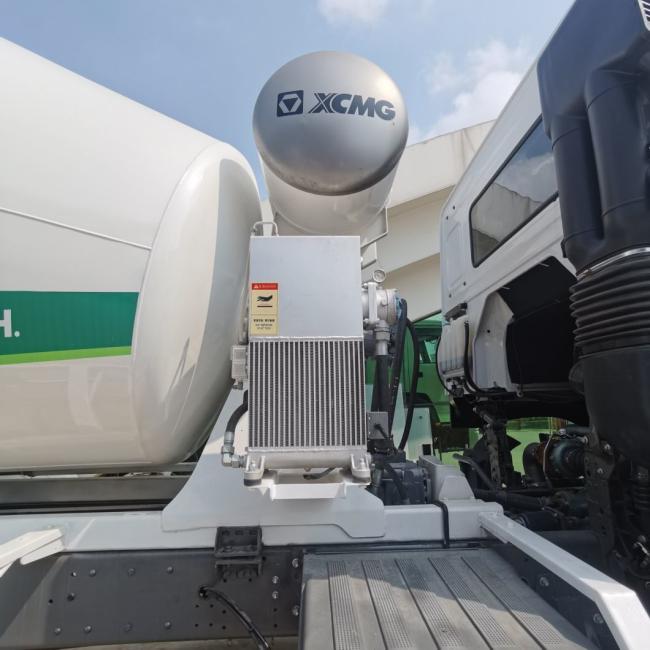

Hydraulic Pump
|
Italy Brand: PMP
|
|
Drum Drive System
|
Hydraulic Motor
|
Italy Brand: PMP
|
|
|
Speed Reducer
|
Germany Brand
|
|
|
Radiator
|
KAITONG
|
|
|
Water Tank Volume(L)
|
400
|
Our offerings include a comprehensive array of used tipper trucks,tractor trucks, and concrete mixer trucks ranging from the 2013 models to the latest, all in pristine condition and competitively priced!For additional photos and detailed information, please reach out to us.
Matters Needing Attention
1. Conduct a thorough inspection of all mechanical system components before starting to ensure optimal condition.
2. Ensure the mixing lever is in the 'neutral' position before initiating the start.
3. Once the engine is running, move the mixing lever to the 'discharge' position to expel any water within the cylinder.
4. During the loading process, make sure the stirring operating rod is set to the 'loading' position.
5. Secure the discharge chute firmly in the 'traveling' position before transportation to avoid any accidental swinging.
6. When maneuvering the joystick, always pause in the 'neutral' position before shifting to the next position.
7. Maintain impeccable construction hygiene: avoid indiscriminate disposal of excess materials from the bucket. After discharging, thoroughly clean the mixing drum, tank, rollers, and other components. For internal cleaning to remove concrete clumps, ensure the vehicle is turned off, the key is removed, and a supervisor is present outside the cylinder.

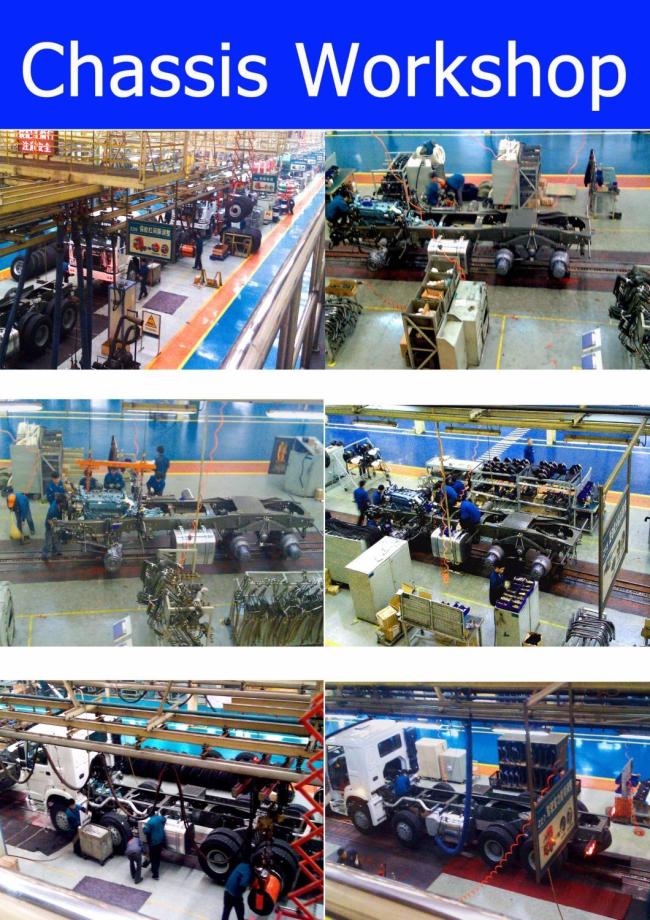

Our Factory
Shipment

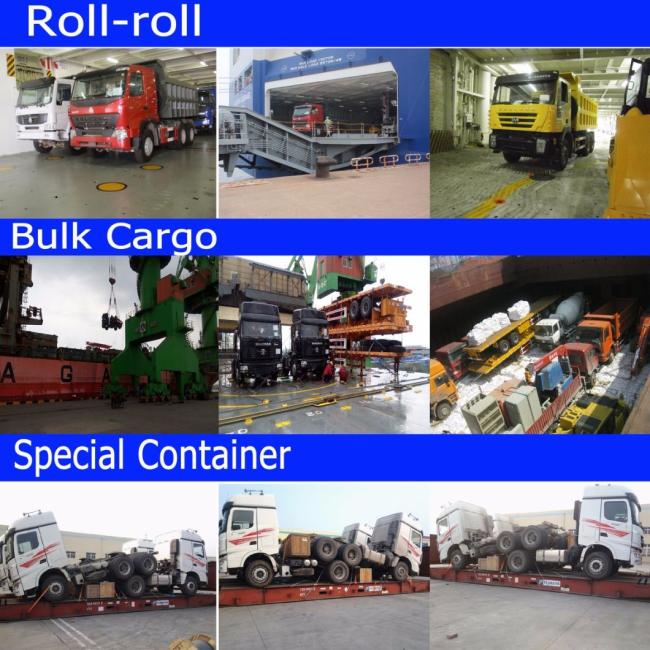

Trucks are generally shipped via RO-RO vessels or bulk vessels. Alternatively, special containers can be utilized for shipping.

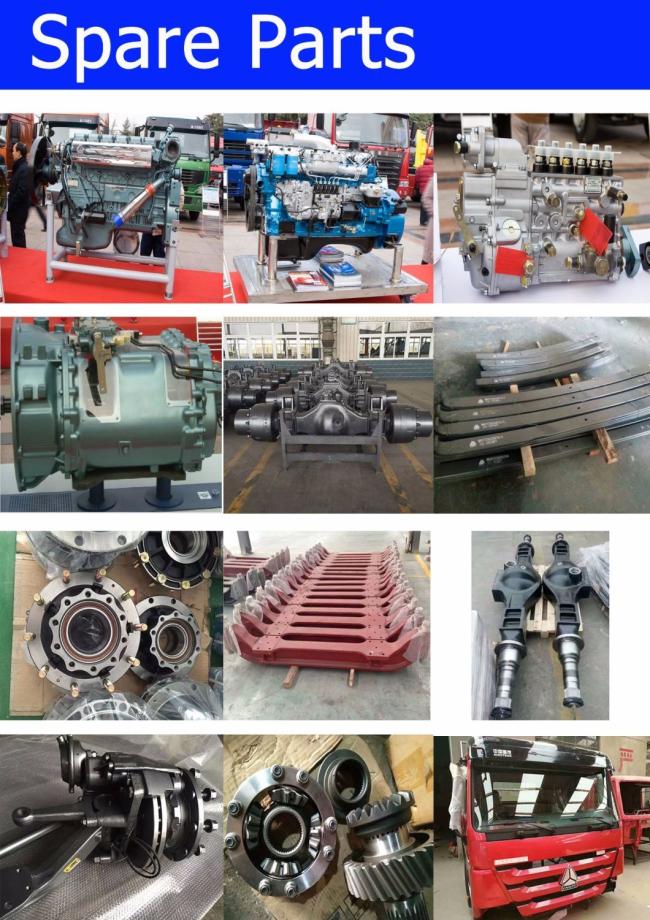

Original Spare Parts
We provide authentic spare parts, complemented by our robust after-sales service system. Our After-market Division delivers exceptional service and ensures swift parts delivery through our efficient supply chain.
