14kw R32 Air To Water Heat Pump For Swimming Pool Sauna SPA 380V/3pH/50Hz Power Supply Customization
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

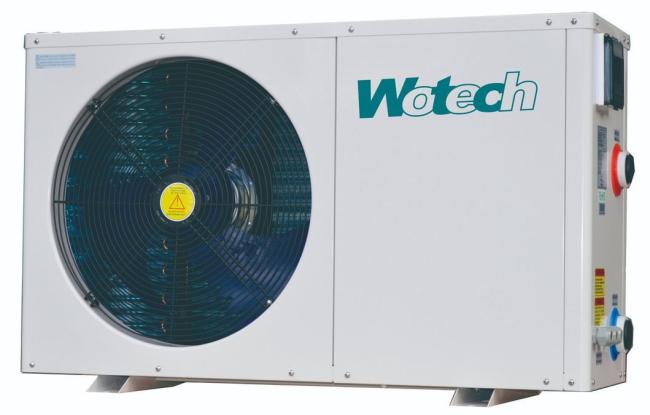

14kw R32 CE/CB Residitial on/off air to water heat pump for swimming pool sauna spa
![14kw R32 CE/CB Residitial on/off Air to Water Heat Pump for Swimming Pool Sauna SPA]()
![14kw R32 CE/CB Residitial on/off Air to Water Heat Pump for Swimming Pool Sauna SPA]()
![14kw R32 CE/CB Residitial on/off Air to Water Heat Pump for Swimming Pool Sauna SPA]()
Technical Parameter:

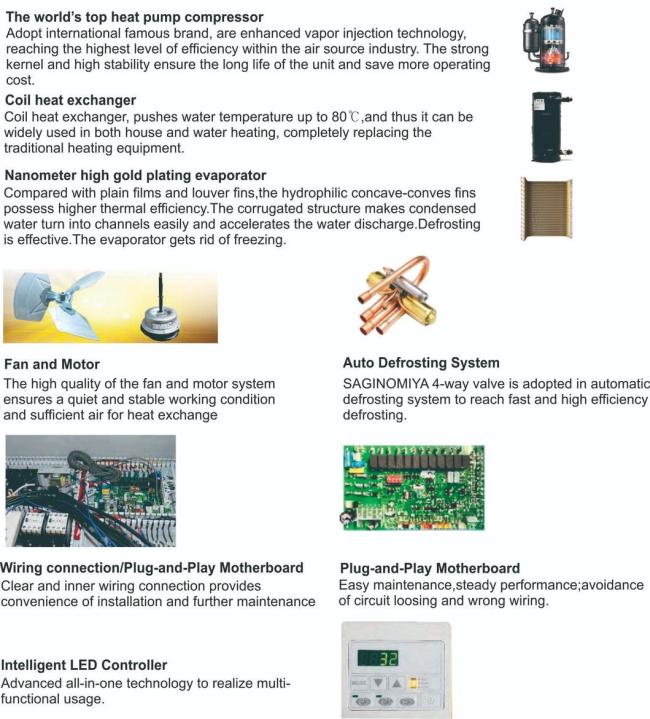

Key Components:
![14kw R32 CE/CB Residitial on/off Air to Water Heat Pump for Swimming Pool Sauna SPA]()

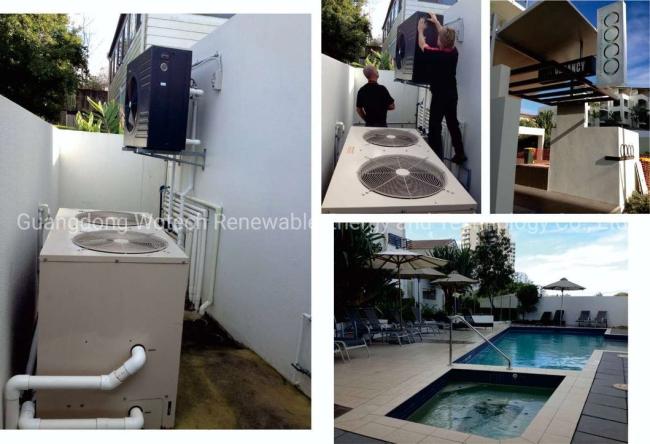

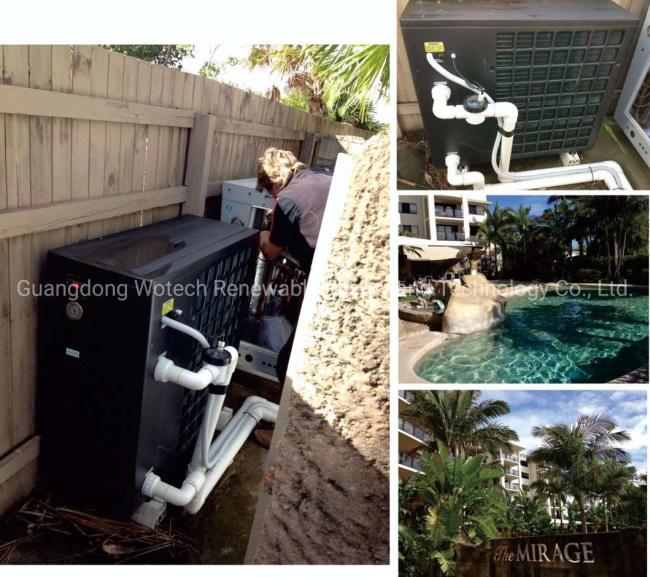

Wotech Project Cases:
![14kw R32 CE/CB Residitial on/off Air to Water Heat Pump for Swimming Pool Sauna SPA]()
![14kw R32 CE/CB Residitial on/off Air to Water Heat Pump for Swimming Pool Sauna SPA]()

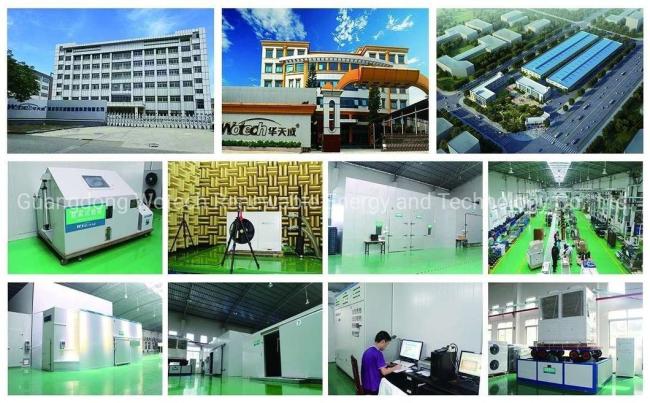

Manufacturing & Laboratories:
![14kw R32 CE/CB Residitial on/off Air to Water Heat Pump for Swimming Pool Sauna SPA]()
Features:
1.High COP.
2.Patented corrosion resis ant titanium exchanger
3.Environmental friendly
4.LCD or colorful LED controller for options.
4.Re-start memory
5.Heating and cooling with reversible defrosting.
6.Super quiet

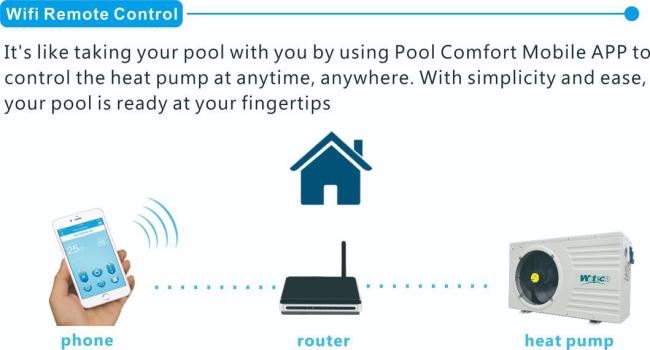

7.WIFI APP control(optional)
8.Suitable for Koi ponds as well as swimming pools or sauna or SPA.
1.High COP.
2.Patented corrosion resis ant titanium exchanger
3.Environmental friendly
4.LCD or colorful LED controller for options.
4.Re-start memory
5.Heating and cooling with reversible defrosting.
6.Super quiet
7.WIFI APP control(optional)
8.Suitable for Koi ponds as well as swimming pools or sauna or SPA.
Technical Parameter:
| CODE | WP05 | WP06 | WP08 | WP10 | WP12 | WP14 | WP17 |
| Advised pool size (m3) | 7~14 | 8~16 | 10~20 | 14~28 | 17~34 | 20~40 | 25~50 |
| Heating Performance Condition: Air 24ºC, Water 26ºC | |||||||
| Heating Capacity (KW) | 4.5 | 5.1 | 7 | 9.8 | 11.2 | 13.2 | 16.8 |
| COP | 5 | 5.15 | 5.07 | 5.08 | 5.3 | 5.35 | 5.4 |
| Heating Performance Condition: Air 15ºC, Water 26ºC | |||||||
| Heating Capacity (KW) | 3.65 | 3.9 | 5.2 | 7.6 | 8.7 | 10.2 | 13.5 |
| COP | 4.2 | 4.32 | 4 | 4.11 | 4.55 | 4.6 | 4.5 |
| Operating Air Temperature ºC | -5~43 | ||||||
| Power Supply (V/Hz) | 220-240V/1PH/50HZ | ||||||
| Rated Input Power(KW) | 0.86 | 0.99 | 1.34 | 1.95 | 2.11 | 2.47 | 3.11 |
| Rated Input Current(A) | 4.1 | 4.3 | 6.4 | 9.3 | 10.1 | 11.4 | 14.8 |
| Max Heating Current (A) | 5.8 | 5.9 | 8.9 | 12.7 | 13.1 | 14.8 | 19.2 |
| Water Flow Rate (m3/h) | 1.9 | 2.4 | 3.4 | 4.1 | 5.4 | 6 | 7.3 |
| Water Connection ( inch) | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 |
| Sound level at 1m (dB(A)) | 49 | 53 | 59 | 58 | 52 | 53 | 57 |
| Net Dimension L*W*H(mm) | 755*258*500 | 937*286*550 | 937*286*550 | 1012*307*614 | 1012*307*614 | 1012*307*614 | 1117*396*703 |
| Qty per 20ft/40HQ(PCS) | 176/445 | 128/264 | 128/264 | 90/248 | 90/248 | 90/248 | 42/132 |
| CODE | WP17T | WP21 | WP26 | WP31 |
| Advised pool size (m3) | 25~55 | 30~60 | 35~70 | 45~90 |
| Heating Performance Condition: Air 24ºC, Water 26ºC | ||||
| Heating Capacity (KW) | 17.4 | 20.2 | 24.3 | 30 |
| COP | 5.84 | 5.98 | 5.69 | 5.71 |
| Heating Performance Condition: Air 15ºC, Water 26ºC | ||||
| Heating Capacity (KW) | 13.9 | 17.5 | 19.8 | 23.5 |
| COP | 4.79 | 4.75 | 4.66 | 4.77 |
| Operating Air Temperature ºC | -5~43 | |||
| Power Supply (V/Hz) | 380V/3PH/50HZ | |||
| Rated Input Power(KW) | 2.9 | 3.26 | 4.01 | 5.25 |
| Rated Input Current(A) | 5.2 | 5.8 | 7.2 | 8.8 |
| Max Heating Current (A) | 6.8 | 7.7 | 9.8 | 12 |
| Water Flow Rate (m3/h) | 7.3 | 9 | 11.2 | 13.3 |
| Water Connection ( inch) | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 |
| Sound level at 1m (dB(A)) | 57 | 57 | 60 | 60 |
| Net Dimension L*W*H(mm) | 1117*396*703 | 1117*396*1053 | 1117*396*1053 | 1117*396*1053 |
| Qty per 20ft/40HQ(PCS) | 42/132 | 42/88 | 42/88 | 42/88 |
Key Components:
Wotech Project Cases:
Manufacturing & Laboratories:
