PTO power take off assembly QH50 G3789 for Shac Sinotruk howo truck parts FAST gearbox parts

Shac Sinotruk howo truck parts FAST gearbox parts PTO power take off assembly QH50 G3789

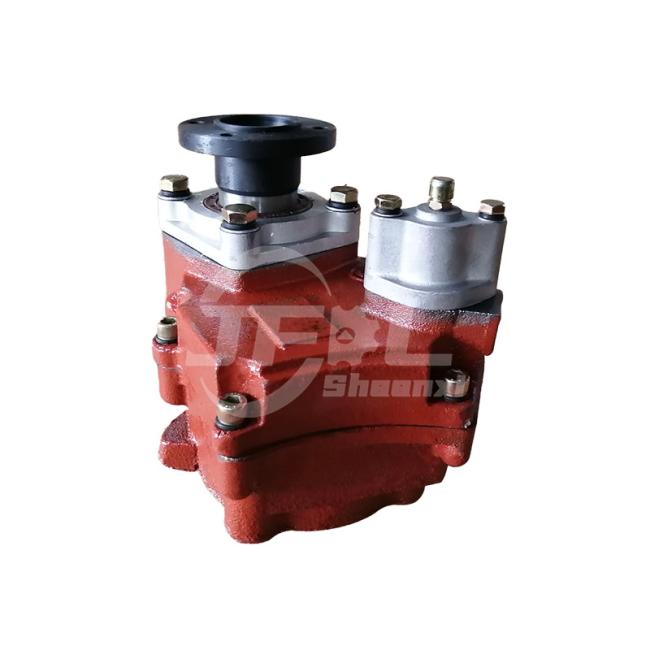

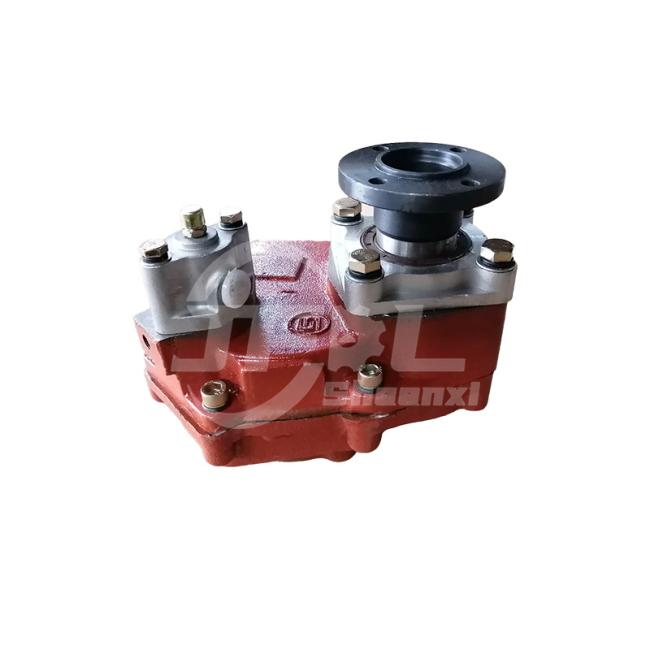

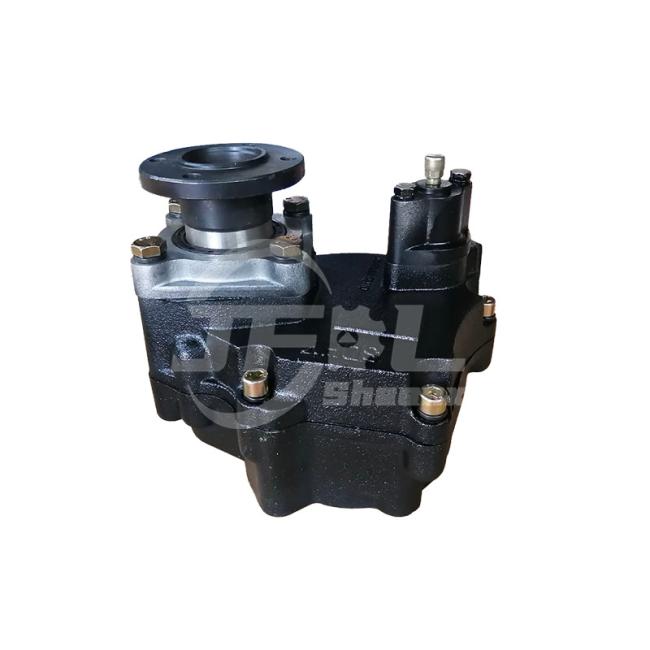

Introduction of PTO Power Take-Off Assembly QH50 G3789

PTO (Power Take-Off) power take-off assembly is a device that takes power from the vehicle power source (such as the engine) and transmits it to other equipment. QH50 G3789 is a model of this power take-off assembly. Its main function is to provide power to auxiliary equipment on the vehicle (such as hydraulic pumps, winches, etc.) so that these devices can work normally.

Working principle of PTO power take-off assembly QH50 G3789

When the vehicle engine is running, power is transmitted to the PTO power take-off assembly through the transmission system such as the gearbox. In the QH50 G3789, the gears of the power take-off are engaged by a control device (such as a pneumatic, hydraulic or electromagnetic control device). Once engaged, the power of the engine is transmitted to the connected auxiliary equipment through the gear system and shaft inside the power take-off. For example, if a hydraulic pump is connected, the hydraulic pump will start to work and provide pressurized oil to the vehicle's hydraulic system.
