Engine HF6098 1R-0741 Hydraulic Filter Cartridge For Heavy Duty Construction Machinery

Price Negotiable

Price: negotiation

MOQ: 1pc

Delivery Time: 7-30 work days

Brand: JFDL-Replacement Filter Cartridge

Product Description

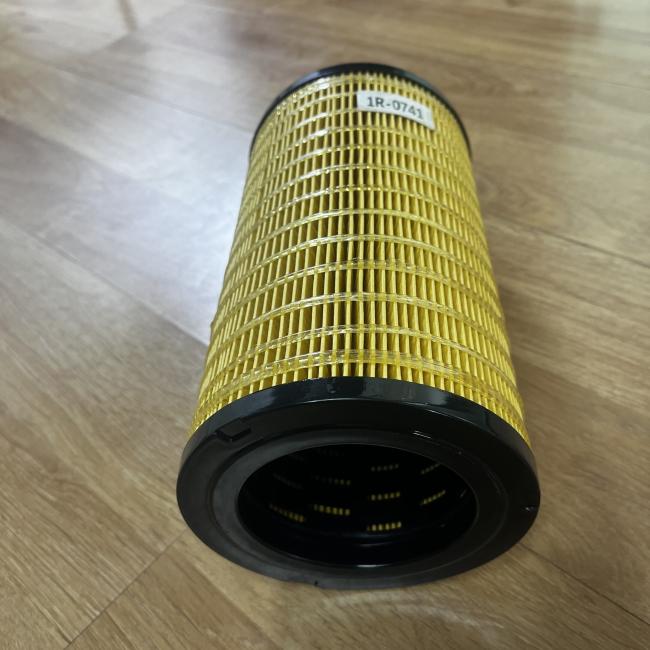

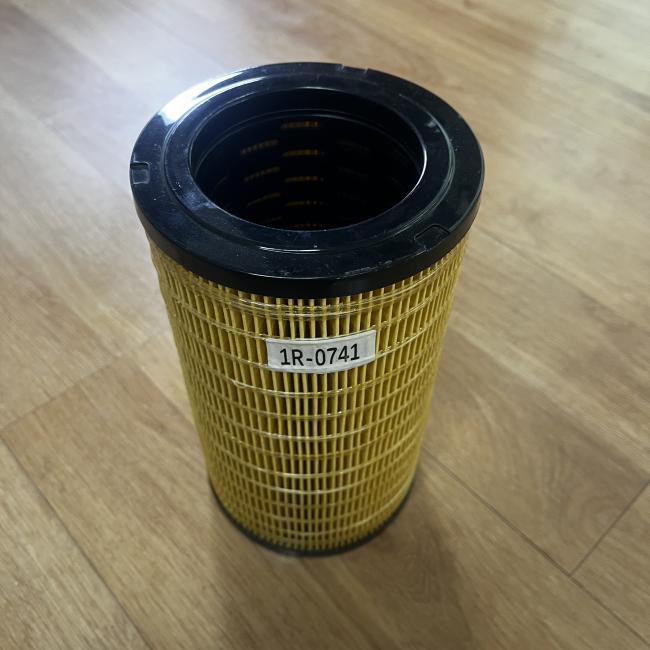

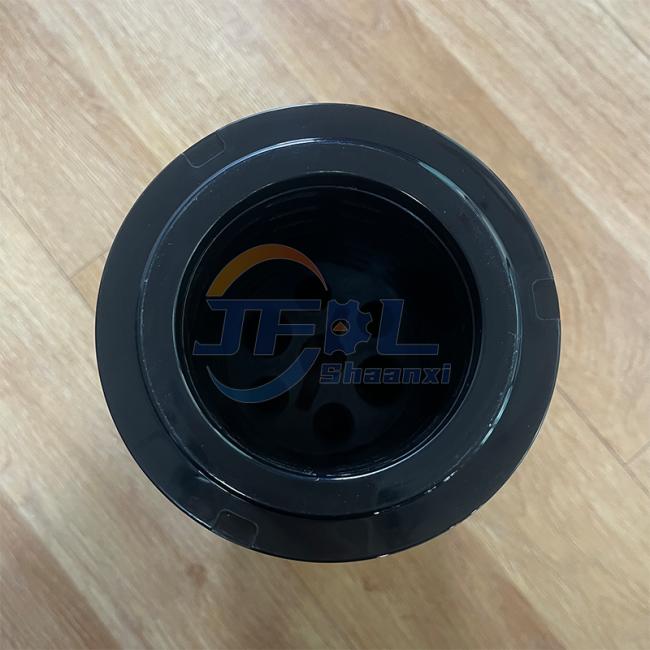

Engine Part HF6098 1R0741 1R-0741 Hydraulic Filter Cartridge for Heavy-Duty Construction Machinery

Core Function

The 1R-0741 is designed to maintain the cleanliness of hydraulic and transmission systems. Its primary role is to intercept abrasive particles and contaminants generated during operation or introduced during maintenance, preventing premature wear on sensitive components like pumps, valves, and cylinders.

Perforce Features

Efficiency Rating: Standard Efficiency. Optimized for general-duty applications.
Media Technology: Features Acrylic Beading to prevent pleat bunching and maximize the surface area for filtration.
Contamination Control: Includes a Non-metallic Center Tube which is cleaner than metal tubes and eliminates the risk of metal shavings entering the system.
Spiral Roving: Provides superior pleat stability, ensuring the filter performs consistently even during high-pressure surges or cold starts.

Technical Specifications

Attribute	Specification Details
Part Name	Hydraulic & Transmission Filter Element
Efficiency Rating	Standard Efficiency
Media Type	Cellulose (Standard) / Synthetic (Optional equivalents)
Filtration Rating	Typically 28 - 40 Microns (Standard range)
Overall Height	228.00 mm (9.00 in)
Outer Diameter	130.00 mm (5.10 in)
Inner Diameter	85.00 mm (3.30 in)
Net Weight	Approx. 0.82 kg (1.80 lbs)
Core Function	Removes contaminants to protect sensitive hydraulic components.
Operating Temp.	Suitable for standard hydraulic oil operating ranges.
