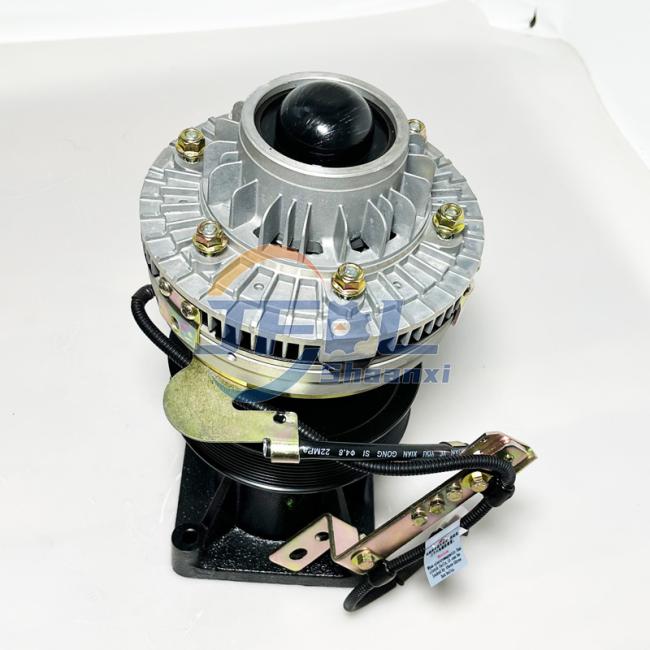

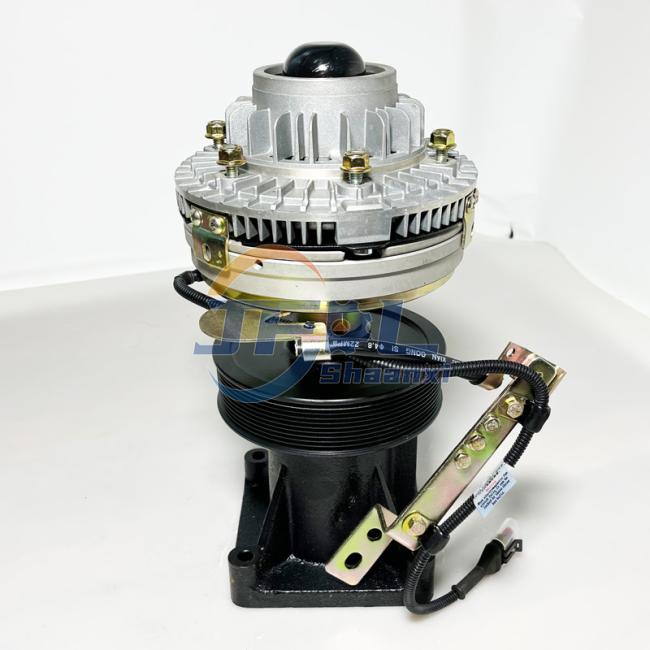

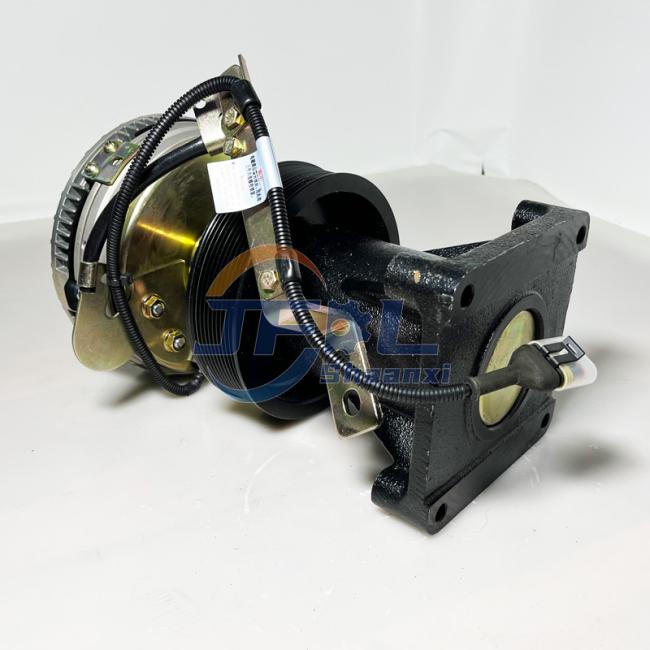

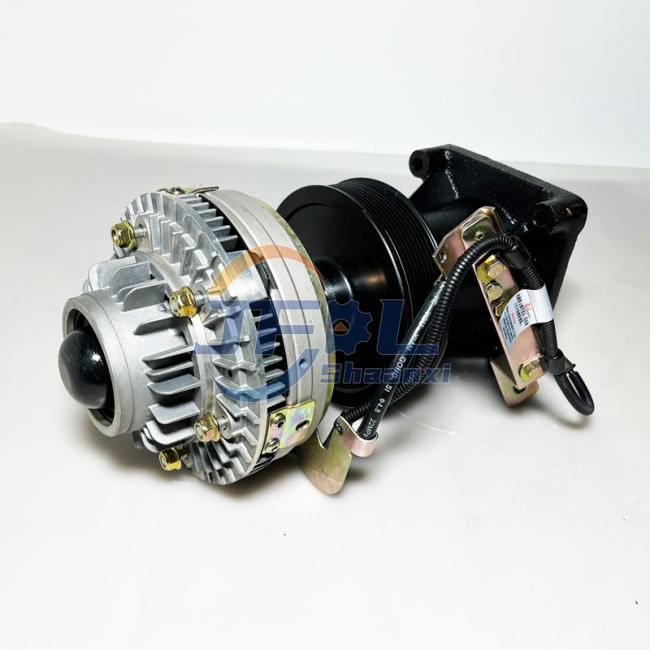

High Perforce Weichai WP12 Engine Silicon Oil Fan Clutch 612630061171 for SHAC Delong F3000 X3000 SINOTRUK HOWO Heavy Truck Parts
High Perforce Weichai WP12 Engine Silicon Oil Fan Clutch 612630061171 for SHAC Delong
|
Item Name
|
High Perforce Weichai WP12 Engine Silicon Oil Fan Clutch 612630061171 for SHAC Delong SINOTRUK HOWO Heavy Trucks |
|
Delivery Time
|
3-15 Working Days / Fast Delivery Available
|
|
Quality Standard
|
100% Tested
|
|
Color
|
Pictures Showing/Can Be Customized
|
|
Size
|
42cm × 25cm × 25cm |
|
Type
|
Engine System-Cooling System |
| OEM Numbers | 612630061171 |
|
Warranty
|
6 Months
|
|
Stock Status
|
In Stock
|
|
Applicable Models
|
Shac Delong F3000 X3000 F2000；SINOTRUK HOWO 7 |
| Condition | New |
| Services | 24 Hours Online Service |
|
|
|
|
|
|
Product Overview
- Part Number: 612630061171
- Product Name: Silicon Oil Fan Clutch
- Compatible Brands: Shac Delong SINOTRUK HOWO
Applications
-
Applicable Engines:
Weichai WP10 and WP12 series engines (meeting National III / National IV emission standards).
-
Applicable Vehicle Models:
SHAC: Delong F2000, F3000, and X3000 series heavy-duty trucks.
SINOTRUK: HOWO 7 Series, A7, and T7H (select configurations).
FOTON: AU ETX and GTL series heavy-duty dump trucks and tractor units.
Others: North Benz Heavy Duty Truck, XCMG / SANY Heavy Industry, and other construction machinery equipped with the same Weichai engine models.
Product Features
-
Intelligent Temperature Regulation: Features a built-in high-precision bimetallic temperature-sensing element that automatically adjusts fan speed based on the airflow temperature behind the radiator, enabling dynamic control over cooling intensity.
-
Significant Energy Efficiency Optimization: Effectively reduces power consumption under low-temperature operating conditions, optimizes the engine's thermal agement system, and boosts fuel economy by 2% to 5%.
-
Superior Noise Reduction Perforce: Prevents the fan from running at full speed for prolonged periods, thereby significantly reducing electromagnetic and airflow noise during vehicle operation and enhancing cabin comfort.
-
Smooth Engagement Characteristics: Transmits power via the shear force of silicone fluid, ensuring a smooth, shock-free engagement process that effectively extends the service life of the drive belt, bearings, and associated transmission components.
-
Highly Reliable Construction: The housing is die-cast from a high-strength, lightweight aluminum alloy; combined with high-perforce, heat-resistant silicone fluid, it offers exceptional sealing integrity and thermal stability, making it well-suited for heavy-duty applications and extreme operating environments.
Maintenance
- Visual Inspection: Check the housing for any signs of silicone oil leakage (if extensive oil residue is present and has accumulated dust, the unit is considered defective).
- Sensor Blade Cleaning: Periodically remove oil sludge and debris from the front-mounted bimetallic sensor blade to prevent sensing failure.
- Bearing Inspection: With the equipment powered off, ually rotate the fan to check for any resistance, abnormal noises, or axial play (excessive clearance).
- Storage: For long-term storage, the unit should be kept face-up (with the sensor blade facing upward) to prevent silicone oil spillage or uneven distribution.
Shaanxi Jufeng Delong Co., Ltd specializes in premium truck spare parts with extensive industry expertise. Our components are compatible with major truck brands including SINOTRUCK HOWO, SHAC, FOTON, FAW, BENZ, LIU GONG, and XCMG. We offer comprehensive OEM and ODM services.
Contact us with your specific requirements for custom parts sourcing and technical support.
