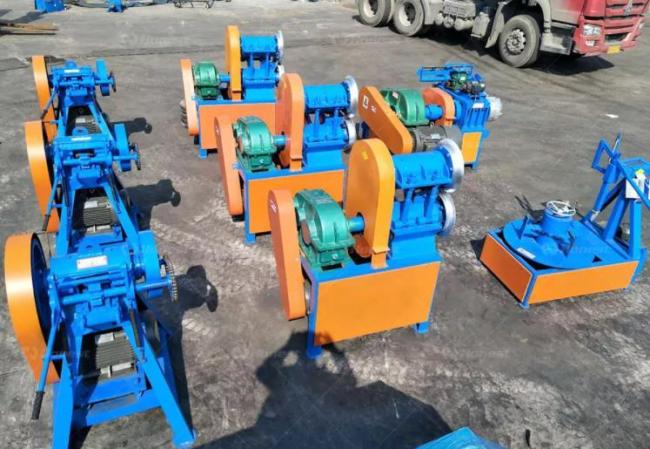

Tire Strip Cutter Long Neck /tire Strip Cutter Extended/tire Shredder

Introduction: The tire cutting machine cuts various tires, rubber blocks, and rubber sheets into strips
Features: The equipment has large shearing force, good effect, low energy consumption, slow speed, convenient and safe operation.
The machine consists of a pair of blades, reducer, frame and rotating machine, etc.
Features: 1. High gearbox safety index to make sure the machine runs perfectly and constantly.
2. Using the best roller material to keep long service life.
3.Adopting top brands motor, reducer and bearings. Such as Siemens motor, Boneng reducer, HRB bearing, etc.
4.Both rollers are grooved, and machined with cooling system.
5.Using anti-friction bearings to Maximum the grinding performance.
6.Coupling connection between reducer and motor ensures strong grinder powder and accurate control. 7.High speed ratio makes the machine more capable for all kinds of tires, including nylon tires.
8.Thickened base for the crusher can absorb shocks during grinding and makes the whole recycling process smoother.

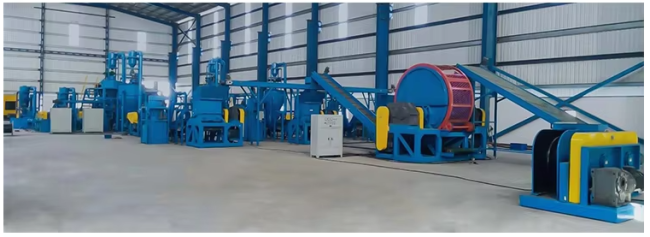

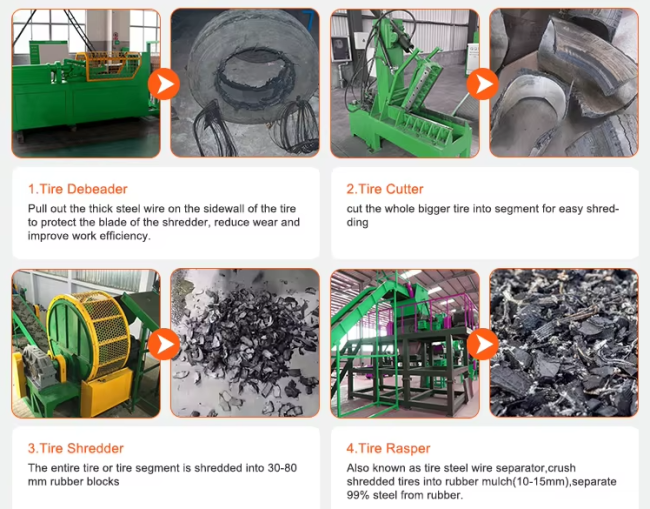

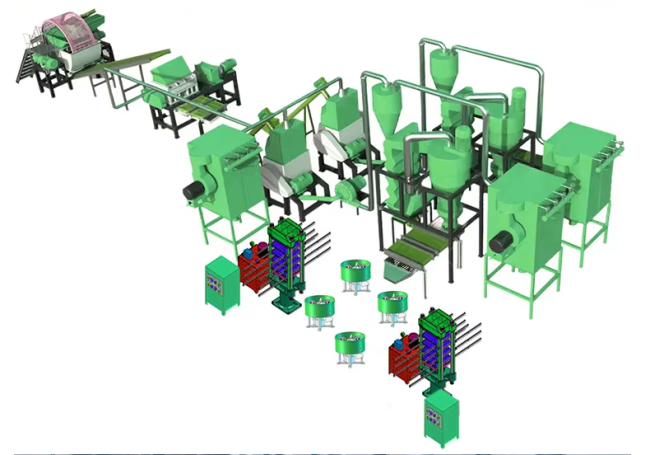

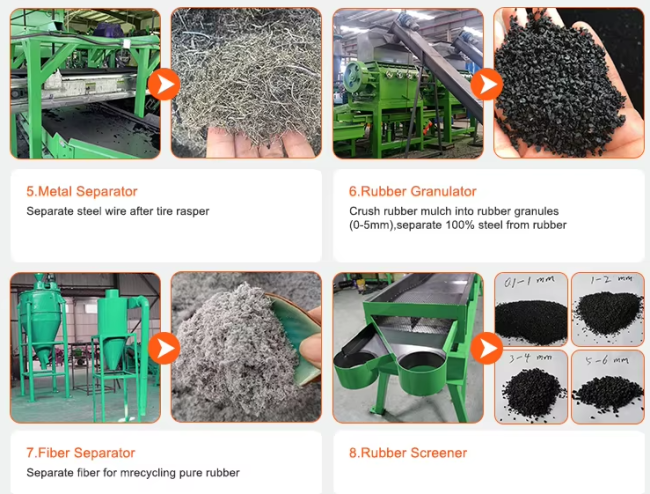

Flow chart of tire recycling(Fully-automatic Production Line): Waste tire - Tire debeader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder                                                                Flow chart of semi automatic tire recycling lineWhole tire--tire circle cutter--tire strip cutter--tire slice cutter--rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder

Production capacity	1000Kg/H
Motor power	5.5KW
Motor rotating speed	1440R/Min
Speed reducer model	350
Size of discharged materials	20-40MM
Machine weight	720Kg
