Multi-Axis Door CNC Machine with 1800-3000mm Workpiece Length 400-1100mm Width and 30-60mm Thickness for Precision Hardware Hole Slot Processing
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
SHUPING
Product Description
Multi-Axis Hardware Hole Slot Processing Center | Triple-Head Simultaneous Machining

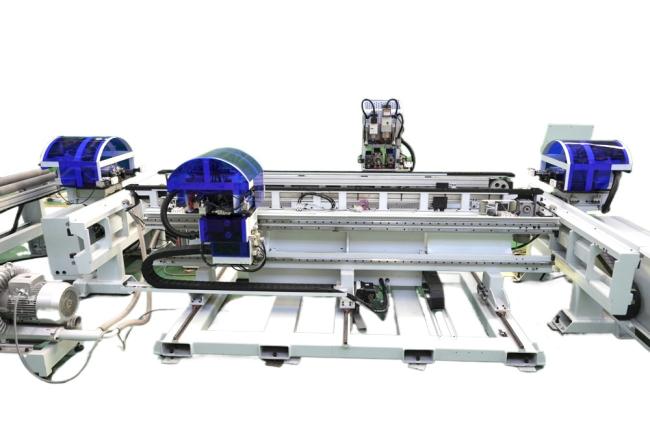

The Multi-Axis Hardware Hole Slot Processing Center is an advanced, high-efficiency CNC machining solution specifically engineered for the door manufacturing industry. Designed to automate and streamline the complex process of cutting slots and holes for door hardware, this machine significantly enhances production throughput and precision.
Its core innovation lies in its ability to perform triple-head simultaneous machining, allowing multiple operations on a single door panel to be completed in a fraction of the time required by traditional single-head machines. This capability is pivotal for mass production environments seeking to reduce bottlenecks and increase output without compromising on quality.

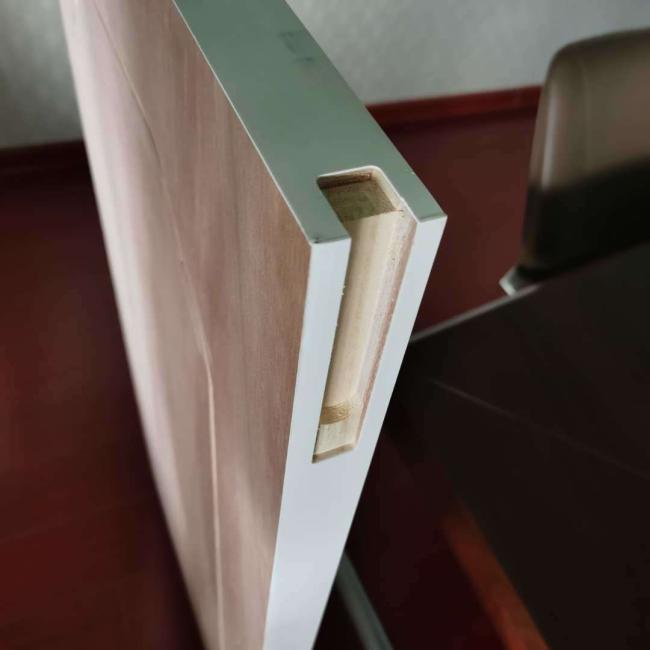

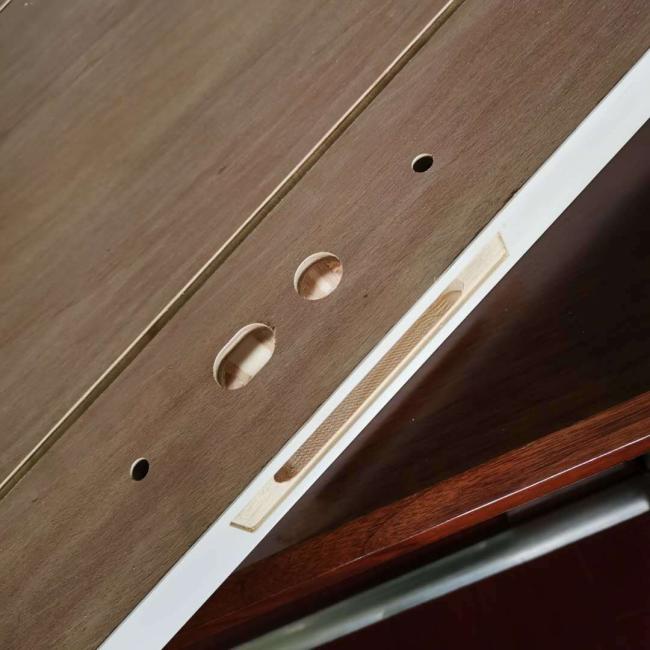

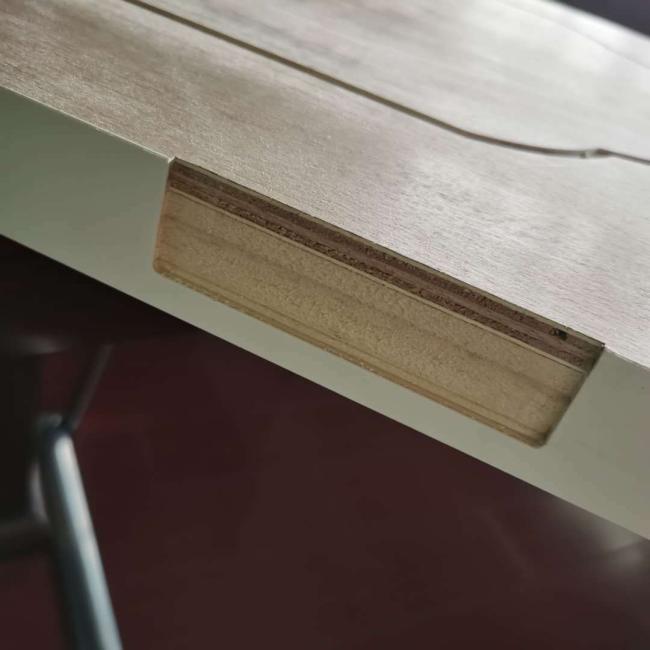

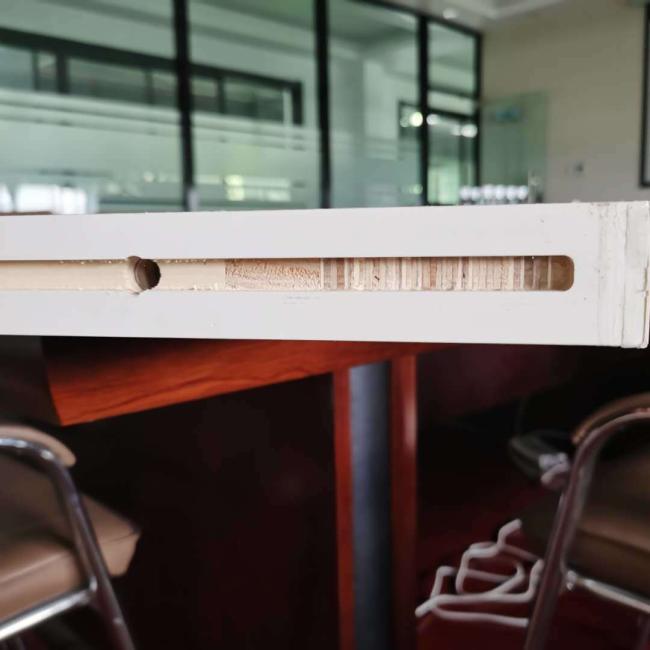

This robust processing center is configured with multiple specialized milling spindles and a drilling axis, each dedicated to specific tasks such as cutting lock holes, hinge mortises, sliding door tracks, deadbolt slots, door closer recesses, and logo engraving.
Key Features & Advantages
- Triple-Head Simultaneous Machining: Enables parallel processing of multiple hardware installations on a single door, drastically reducing cycle time per door
- High-Precision Multi-Axis System: Utilizes high-precision ground gear racks and AKD ball screws with Mitsubishi servo systems for repeatable accuracy
- Comprehensive Spindle Configuration: Equipped with dedicated spindles for various operations including high-power main spindles (up to 5.6kW) and reverse rotation spindles
- Fully Automated Operation: Integrated conveyor belt system with automatic loading/unloading and optional barcode scanning
- Smart Control & Usability: Proprietary software with digital interface automatically generates tool paths and features automatic thickness detection
Technical Specifications
| Parameter Category | Specification |
|---|---|
| Machining Capability | Lock Holes, Hinge Mortises, Sliding Tracks, Roller Grooves, Deadbolt Slots, Door Closer & Logo Slates |
| Simultaneous Heads | Three Independent Machining Heads |
| Workpiece Dimensions | Length: 1800-3000mm, Width: 400-1100mm, Thickness: 30-60mm |
| Primary Spindle Power | 5.6kW (Lock/Bottom Groove), 3.0kW (Hinge/Vertical/Roller) |
| Spindle Speed Range | 6000 - 18000 RPM |
| Control & Drive | Mitsubishi Control System & Servo Drives |
| Positioning & Material Handling | 6x Material Positioning Cylinders (Airtac), Automatic Conveyor System, Thickness Detection |
| Footprint | 4950 x 3870 x 1580 mm |
Frequently Asked Questions
What is the main benefit of triple-head simultaneous machining?
It dramatically increases productivity by allowing three different machining operations (e.g., lock hole, hinge mortise, and top groove) to be performed on the same door at the same time, reducing the total processing time per unit.
Can this machine handle different door sizes automatically?
Yes. The machine accommodates doors from 1800-3000mm in length and 400-1100mm in width. The automated positioning system and programmable software allow for quick changeovers between different door sizes.
How does the system ensure machining accuracy?
High-precision gear racks and ball screws, coupled with Mitsubishi servos, provide excellent motion control. Additionally, the automatic tool setting and workpiece thickness detection systems compensate for tool wear and material inconsistencies, ensuring consistent precision.
Is specialized training required to operate this machine?
The proprietary software is designed with a simple, digital, and modular interface, making it relatively easy to learn. It automatically generates tool paths, which lowers the technical expertise required for daily operation compared to standard CNC systems.
What types of hardware can it process?
It is a versatile solution capable of machining slots and holes for a wide range of hardware, including locks, hinges, anti-theft chains, sliding door systems, roller hangers, deadbolts, door closers, and logo plates.
