5um 1um 0.01um Stainless Steel Compressed Air Filter For Nitrogen Generator

Most industrial compressed air applications operate at pressure 7bar, 10bar or 13bar, and purification equipment is usually designed around these working pressures. However, some application require higher working pressure, which will also lead to an increase in the concentration of pollutants.

G-BHL series stainless steel compressed Air Filters are designed to remove liquid aerosols, water, oil and sub-micron particles in the compressed air system. The filtration efficiency can be 99.99% to remove 0.01 micron particles and small droplets, improve the pass rate of the product, reduce maintenance time and costs, increase productivity and reduce production costs ultimately.

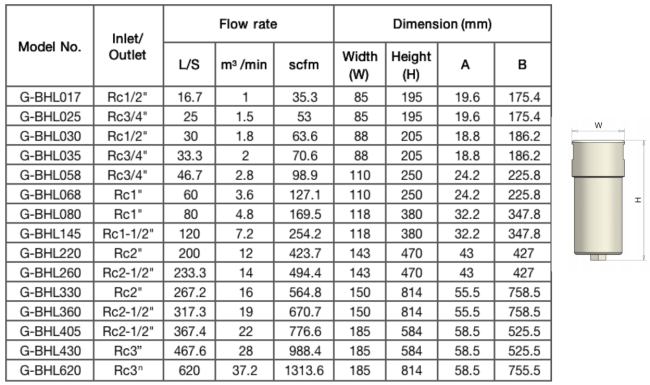

Technical Specification

The flow rate below is the treatment capacity of compressed air under rated working pressure 7 bar g (100psi g). For application in other working pressure, please refer to the correction factors.
