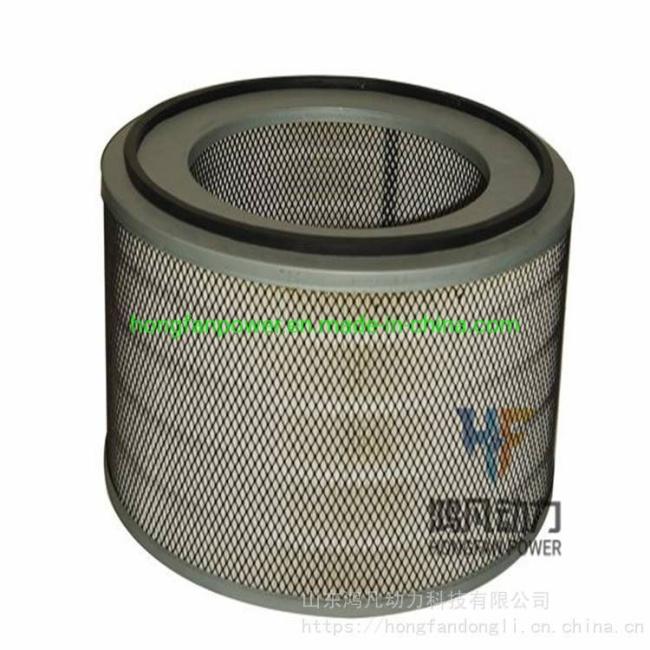

Jichai Chidong 190 Series Diesel Generator Overhaul Part Air Filter Element 12vb. 36m. 40/50
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
jichai chidong 190 Series diesel generator overhaul part air filter element 12VB.36M.40/50
Our company is located in Jinan, Shandong province, providing Jichai 190 engines and generator set accessories for thousands of customers. The company supplies Jichai 12V190 accessories, Jichai diesel engine accessories, Jichai 12V190 drilling matching diesel engine accessories, Jichai 6190/8190 ship engine accessories, Jichai natural gas generator set accessories, Jichai 500KW, 600KW biogas generator set accessories, Jichai 500KW, 600KW, Jichai H16V190 gas machine accessories, Shengdong 190 gas machine accessories.
![Jichai Chidong 190 Series Diesel Generator Overhaul Part Air Filter Element 12vb. 36m. 40/50]()
![Jichai Chidong 190 Series Diesel Generator Overhaul Part Air Filter Element 12vb. 36m. 40/50]()
| no | num | name |
| 1 | 12VB.01.141 | Throttle valve |
| 2 | 12VB.01.05 | bushing |
| 3 | 12VB.01.146 | Gasket for sealing |
| 4 | 12V.01.12 | Sealing rubber ring |
| 5 | 12V.01.09 | Cross water pipe |
| 6 | 12VB.01.23A/24A | Upper and lower spindle tile |
| 7 | 12VB.01.82 | Water pump gasket |
| 8 | 12VB.01.34 | Camshaft bearing bush |
| 9 | 12VB.01.21A/22A | Push down the spindle tile |
| 10 | 12V.01.14 | Cylinder liner sealing rubber ring |
| 11 | 12VB.01.134 | Sealing rubber ring on cylinder liner |
| 12 | 12VB.01.136 | Cylinder liner sealing ring |
| 13 | 12V.01.02C | Cylinder liner |
| 14 | 206L.01.31 | Cylinder head gasket |
| 15 | 12VB.01.03 | Cylinder head gasket |
| 16 | 12VB.01.45 | Observe the cover liner |
| 17 | Z12VB.01.81C | Supercharger support |
| 18 | Z12VB.01.85 | Exhaust main bracket |
| 19 | 12VB.01.31A | Main bearing nut |
| 20 | 12VB.01.29B | Main bearing bolt |
| 21 | 12VB.01.25A | Thrust back plate |
| 22 | 12V.01.09 | Cross water pipe |
| 23 | 12VB.01.04B | Cylinder head bolts |
| 24 | 12VB.01.07A | Cylinder head nut |
| 25 | 12VB.01.131 | Cylinder head bolt washer |
| 26 | 12VB.03.00 | Cylinder head unit |
| 27 | 12VB.03.10.20-GJ | Exhaust rocker arm coupling |
| 28 | 12VB.03.10.10-GJ | Intake rocker arm coupling |
| 29 | 12VB.03.10.10.02 | Rocker arm bushing |
| 30 | 12VB.03.10.07 | Rocker arm convex head |
| 31 | 12VB.03.09B | Rocker arm seat bolt |
| 32 | GB93 14 | The gasket |
| 33 | Q/JC11013 M14*1.5 | nut M14*1.5 |
| 34 | 12VB.03.04 | Short length bolt |
| 35 | 12VB.03.47 | bolt |
| 36 | 12VB.03.80.06 | Jacket for oiler |
| 37 | 12VB.03.80.04 | Exhaust valve seat |
| 38 | 12VB.03.80.05 | Intake valve seat |
| 39 | 12VB.03.22/37 | Inlet/exhaust valve |
| 40 | 12V.03.21A | The catheter |
| 41 | 12VB.03.15A | Spring upper seat |
| 42 | 12VB.03.19 | Spring lower seat |
| 43 | Z12V.03.17B | Valve internal spring |
| 44 | Z12V.03.18B | Air door spring |
| 45 | 601.03.16A | Air door lock clip |
| 46 | 12VB.03.30B | Rocker arm convex head |
| 47 | 12VB.03.90B | Rocker arm cross bridge adjustment screw |
| 48 | 12VB.03.03B | Rocker arm cross bridge |
| 49 | 12VB.03.60B | Rocker arm adjustment screw |
| 50 | GB6173 M14*1 | nut M14*1 |
| 51 | GB5782 M8*30 | nut M8*30 |
| 52 | GB848 8 | Washer 8 |
| 53 | 12VB.03.02 | Upper cover shell |
| 54 | 12VB.03.11 | Sealing ring |
| 55 | 12VB.03.12A | Seal ring |
| 56 | 12VB.05.09C-GJ | Piston gas ring binding piece |
| 57 | 12V.05.08A | Piston pin |
| 58 | 12V.05.14 | circlip |
| 59 | Z12VB.05.01C | The piston |
| 60 | 12VB.05.10.09 | Connecting rod nut |
| 61 | 12VB.05.10.06 | Spring spring washer |
| 62 | 12VB.05.10.04/05 | Upper and lower connecting rod bearing bush |
| 63 | 12VB.05.10.07 | Positioning pin |
| 64 | 12VB.05.10.03 | Connecting rod bolt |
| 65 | 12VB.05.10.08C | Small head bushing |
| 66 | 12VB.05.10/PJ | Connecting rod set |
| 67 | 12V.07.04A | Shock absorber components * Sealing ring |
| 68 | 12VB.07.03 | Shock absorber components * Sealing ring |
| 69 | 12VB.44.01 | Connector parts * Ring teeth |
| 70 | Z12VB.06.10.03B | Camshaft and gear system components * Roller shaft |
| 71 | Z12VB.06.12 | Camshaft and gear train components * sleeve |
| 72 | Z12VB.06.13 | Camshaft and gear train components * separation ring |
| 73 | Z12VB.08.10.03A | Intake pipe component * gasket |
| 74 | 12VB.08.10.14 | Intake pipe component * gasket |
| 75 | Z12VB.09.13B | Air exhaust main |
| 76 | Z12VB.09.14 | Exhaust pipe components * gasket |
| 77 | Z12VB.09.10A | Bellows Z12VB.09.10A |
| 78 | Z12VB.09.47X | Exhaust pipe components * gasket |
| 79 | Z12VB.09.30 | Corrugated pipe |
| 80 | Z12VB.09.06A | Exhaust branch gasket |
| 81 | Z12VB.09.16 | Exhaust pipe components * screws |
| 82 | Z12V.09.45A | Exhaust pipe components * Nuts |
| 83 | Z12VB.09.04A | Exhaust pipe gasket |
| 84 | Z12VB.09.04B | Exhaust pipe gasket |
| 85 | Z12VB.09.20A | Bellows Z12VB.09.20A |
| 86 | Z12VB.09.05A | Exhaust pipe components * gasket |
| 87 | 12VB.11.00 | Rotor type oil pump component |
| 88 | 235.11.00 | Gear type oil pump components |
| 89 | 12VB.10.06 | Fuel filter components * Rubber ring |
| 90 | 12V.10.30A | Diesel filter element - Paper |
| 91 | 12VB.36M.40/50 | Air filter |
| 92 | Z12V.12.30A | Plunger couple parts |
| 93 | Z12V.12.20 | Outlet valve coupling assembly |
| 94 | Z12V.12.00 | Fuel injection pump unit |
| 95 | Z12V.12.13 | Plunger spring upper seat |
| 96 | Z12V.12.14A | Plunger spring |
| 97 | Z12V.12.16 | Plunger spring lower seat |
| 98 | Z12V.12.01A | Oil outlet valve bushing |
| 99 | Z12V.12.02A | Oil outlet valve tight seat |
| 100 | Z12V.12.03A | Outlet valve spring |
| 101 | 12VB.16.00E | Fuel injector |
| 102 | 12V.16.20E | Oil injection nozzle |
| 103 | 12V.16.15A | Fuel injector assembly pad |
| 104 | 129.13.00 | Mechanical governor parts |
| 105 | 12VB.14.10 | Left row high pressure oil pipe section |
| 106 | 12VB.14.20 | Right row high pressure oil pipe section |
| 107 | 12VB.14.30.10B | Return pipe parts |
| 108 | 12VB.14.50.20 | Return pipe parts |
| 109 | 12VB.14.220A | Intermediate hose |
| 110 | 12VB.14.60A | Filter return pipe |
| 111 | 223.17.00 | Oil pump components 223.17.00 |
| 112 | 12V.17.00 | Oil pump components 12V.17.00C |
| 113 | 12VB.54.00D | Pre-supply oil pump 12VB.54.00D |
| 114 | 22 850 JB984-77 | Type A buckle hose joint |
| 115 | 22 -710 JB984-77 | Type A buckle hose joint |
| 116 | 12V.29.00 | Oil pump parts for hand machine |
| 117 | 12VB.18.10B | Oil filter |
| 118 | Q/JC12003 70*5.7 | Rubber ring 70*5.7 |
| 119 | 12VB.19.00 | Centrifugal filter assembly |
| 120 | 12VB.20.120 | Overspeed safety device inlet pipe |
| 121 | 12VB.20.02 | O-ring for oil cooler |
| 122 | Q/JC14006 51*82 | Gasket 51*82 |
| 123 | 12VB.22.00B | Water pump component 12VB.22.00B |
| 124 | 223.22.00 | Cryogenic water pump component 223.22.00 |
| 125 | SB-34 | Mechanical seal |
| 126 | PG35*62*12HG4-692-67 | Skeleton type rubber oil seal PG35*62*12 |
| 127 | 12VB.21.00 | Oil cooler |
| 128 | 12VB.21.05 | Seal ring |
| 129 | 12VB.21.08 | Oil cooler inlet and outlet pad |
| 130 | 12VB.21.01 | Oil cooler parts * gasket |
| 131 | 12VB.27.00 | Intercooler components 12VB.27.00 |
| 132 | 12V.27.00 | Intercooler components 12v.27.00 |
| 133 | 12VB.47.19 | hose |
| 134 | 12VB.47.120 | clamp |
| 135 | PZ12VB.24.11 | Hose connection |
| 136 | PZ12VB.24.09 | Hose connection |
| 137 | 12VB.24.13 | Pipe joint |
| 138 | P12V.24.04 | 3" hose |
| 139 | PZ12VB.24.08 | Hose connection |
| 140 | PZ12VB.24.10.02 | hose |
| 141 | PZ12VB.24.80 | clamp |
| 142 | PZ12V.24.310 | Pipe clamp |
| 143 | PZ12VB.24.70 | φ34 double wire clamp |
| 144 | PZ12V.24.300 | Pipe card parts |
| 145 | 12VB.35.00 | Control unit unit |
| 146 | 161.35.00A | Remote control device |
| 147 | 12VB.46.14 | Start up switch |
| 148 | 12VB.46.03 | ST710 Start motor |
| 149 | 12VB.46.110X | 12VB.46.110X motor |
| 150 | 12VB.46.120F | Air starting motor |
| 151 | 701.46F.60 | G12V gas starting motor |
| 152 | Z12VB.26.00-1A | J170-2 supercharger |
| 153 | 2012.26.00 | SJ160 supercharger |
| 154 | 20GJ.00EA | supercharger |
| 155 | 129.34.00A | Low oil pressure automatic stop unit |
| 156 | 12VB.37.00 | Overspeed safety device |
| 157 | 12v | The whole car gasket |
Our company is located in Jinan, Shandong province, providing Jichai 190 engines and generator set accessories for thousands of customers. The company supplies Jichai 12V190 accessories, Jichai diesel engine accessories, Jichai 12V190 drilling matching diesel engine accessories, Jichai 6190/8190 ship engine accessories, Jichai natural gas generator set accessories, Jichai 500KW, 600KW biogas generator set accessories, Jichai 500KW, 600KW, Jichai H16V190 gas machine accessories, Shengdong 190 gas machine accessories.
