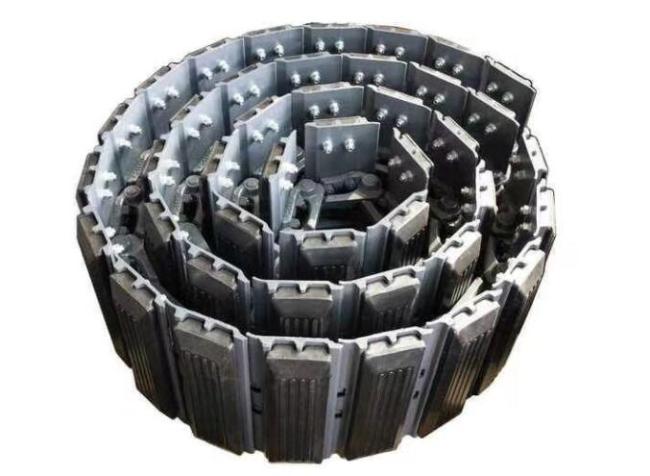

Mini Excavator and Construction Machinery Undercarriage Parts Rubber Track Shoe Pad
Price:
$350.00 - $450.00/pieces
MOQ:
Negotiable
Delivery Time:
FOB Xiamen or any Chinese port:25-30days . If there are any parts in stock ,our delivery time is only 7-10 days.
Brand:
DZR
Product Description
Rubber pad Instruction:
Rubber pad is improved and extended product of rubber track, it's installed on steel tracks, its
character as below:
character as below:
1. easy to installation
2.do not damage the surface of road.
Range of appliion :
Excavator , Paver , Tractor , Loading machinery , Non excavator machinery , Grasp machinery , Drilling Machinery ......
Rubber pad type:
1. Bolt-on: Work if your existing steel pads have pre-drilled holes
2. Clip-on: Use clips that wrap around the pad and work with most styles of pads.
3. Chain-on : Bolt directly to the chain so there is no triple-grouser shoe involved
Range of appliion :
Excavator , Paver , Tractor , Loading machinery , Non excavator machinery , Grasp machinery , Drilling Machinery ......
Rubber pad type:
1. Bolt-on: Work if your existing steel pads have pre-drilled holes
2. Clip-on: Use clips that wrap around the pad and work with most styles of pads.
3. Chain-on : Bolt directly to the chain so there is no triple-grouser shoe involved

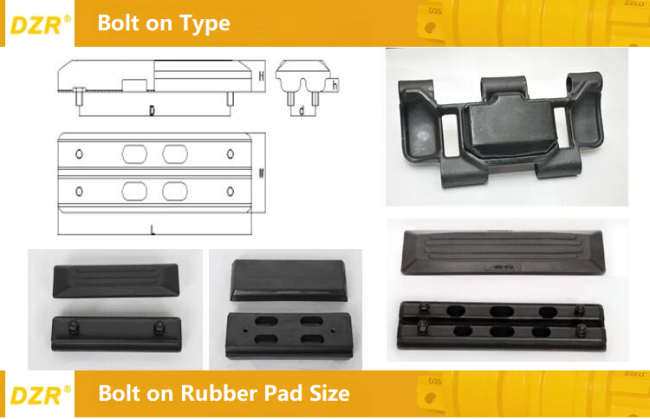

Bolt-on | ||||||||||
Type | Pitch | h | L*W*H | Bolt | D*d | |||||
230BA | 90 | 15 | 230*60*35 | M12*25 | 150*0 | |||||
230BB | 101 | 16 | 230*70*37 | M12*25 | 170*0 | |||||
230BC | 101 | 16 | 230*70*37 | M12*25 | 150*0 | |||||
250BA | 101 | 16 | 250*70*37 | M12*25 | 200*0 | |||||
300BA | 101 | 16 | 300*70*37 | M12*25 | 200*0 | |||||
300BB | 101 | 16 | 300*70*37 | M12*25 | 200*0 | |||||
350BA | 101 | 16 | 350*70*37 | M12*25 | 200*0 | |||||
350BB | 101 | 16 | 350*70*37 | M12*25 | 250*0 | |||||
350BC | 135 | 14 | 350*106*37 | M12*25 | 250*46 | |||||
350BD | 135 | 14 | 350*106*37 | M12*25 | 290*46 | |||||
380BA | 135 | 14 | 380*106*37 | M12*25 | 300*46 | |||||
400BA | 135 | 14 | 400*106*37 | M12*25 | 300*46 | |||||
400BB | 135 | 18 | 400*106*44 | M12*25 | 300*46 | |||||
400BC | 135 | 14 | 400*106*37 | M12*25 | 300*46 | |||||
400BD | 140 | 18 | 400*115*44 | M14*25 | 300*52 | |||||
400BE | 140 | 18 | 400*115*44 | M14*25 | 350*52 | |||||
450BA | 135 | 14 | 450*106*37 | M12*25 | 350*46 | |||||
450BB | 154 | 20 | 450*124*47 | M14*25 | 350*58 | |||||
450BC | 154 | 20 | 450*124*47 | M14*25 | 350*58 | |||||
450BD | 140 | 18 | 450*115*44 | M14*25 | 350*52 | |||||
475BA | 171 | 20 | 470*136*54 | M16*30 | 350*60 | |||||
500BA | 171 | 20 | 500*136*54 | M16*30 | 400*60 | |||||
500BB | 175 | 26 | 500*126*58 | M16*30 | 400*57 | |||||
600BA | 190 | 26 | 600*140*67 | M20*35 | 400*69 | |||||
600BB | 171 | 20 | 600*136*54 | M16*30 | 500*60 | |||||
700BA | 171 | 20 | 700*136*54 | M16*30 | 600*60 | |||||

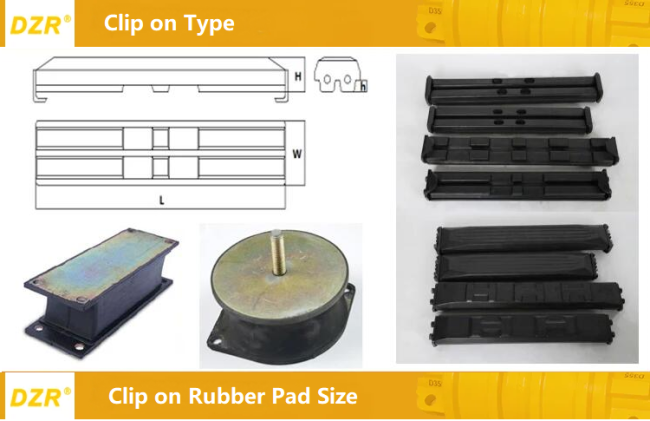

Clip-on | ||||||
Type | Pitch | h | L*W*H | |||
230HA | 101 | 16 | 230*70*52 | |||
250HA | 101 | 16 | 250*70*52 | |||
300HA | 101 | 16 | 300*70*52 | |||
350HA | 101 | 16 | 350*70*52 | |||
350HB | 135 | 14 | 350*106*58 | |||
380HA | 135 | 14 | 380*106*58 | |||
400HA | 135 | 14 | 400*106*58 | |||
400HB | 135 | 18 | 400*106*58 | |||
400HC | 140 | 18 | 400*115*58 | |||
450HA | 135 | 14 | 450*106*58 | |||
450HB | 140 | 18 | 450*115*58 | |||
450HC | 154 | 20 | 450*124*64 | |||
450HD | 175 | 25 | 450*126*70 | |||
500HA | 175 | 25 | 500*126*70 | |||
500HB | 171 | 20 | 500*136*70 | |||
500HC | 190 | 26 | 500*140*76 | |||
600HA | 154 | 20 | 600*124*64 | |||
600HB | 175 | 25 | 600*126*70 | |||

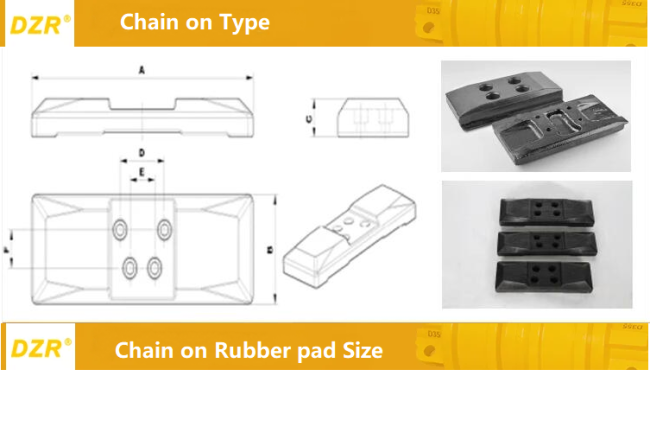

Chain-on | ||||||||||||
Type | Pitch | A*B*C | Bolt | D | E | F | ||||||
180CA | 125 | 185*145*45 | M10*40 | 80 | 80 | 53 | ||||||
260CA | 135 | 265*154*50 | M12*45 | 104 | 80 | 46 | ||||||
260CB | 135 | 265*154*50 | M12*45 | 99 | 72 | 43.5 | ||||||
280CA | 135 | 285*154*50 | M12*45 | 106 | 76 | 46 | ||||||
300CA | 155.6 | 305*165*50 | M12*45 | 88.9 | 88.9 | 57.15 | ||||||
300CB | 155.6 | 305*165*50 | M12*45 | 88.9 | 88.9 | 57.15 | ||||||
300CC | 125 | 305*145*40 | M10*40 | 80 | 80 | 53 | ||||||
300CD | 125 | 305*145*45 | M10*40 | 80 | 80 | 53 | ||||||
320CA | 155.6 | 325*165*50 | M14*49 | 104.8 | 88.9 | 54.8 | ||||||
320CB | 155.6 | 325*165*50 | M14*49 | 104.8 | 88.9 | 54.8 | ||||||
320CC | 155.6 | 325*165*50 | M12*45 | 88.9 | 88.9 | 57.15 | ||||||
400CA | 135 | 400*125*56 | M12*45 | 94 | 64 | 46 | ||||||
400CB | 135 | 400*125*56 | M12*45 | 104 | 80 | 46 | ||||||
400CC | 135 | 400*125*56 | M12*45 | 99 | 72 | 43.5 | ||||||
400CD | 140 | 400*125*56 | M12*45 | 86 | 86 | 52 | ||||||
400CE | 135 | 400*125*56 | M12*45 | 110 | 80 | 46 | ||||||
400CF | 140 | 400*125*56 | M12*45 | 80 | 80 | 52 | ||||||
400CG | 125 | 405*145*45 | M10*40 | 80 | 80 | 53 | ||||||
450CA | 154 | 450*146*56 | M14*49 | 90 | 90 | 55 | ||||||
450CB | 154 | 450*146*56 | M14*49 | 89 | 73 | 57 | ||||||
450CC | 135 | 450*125*56 | M12*45 | 110 | 80 | 46 | ||||||
450CD | 140 | 450*125*56 | M12*45 | 86 | 86 | 52 | ||||||
