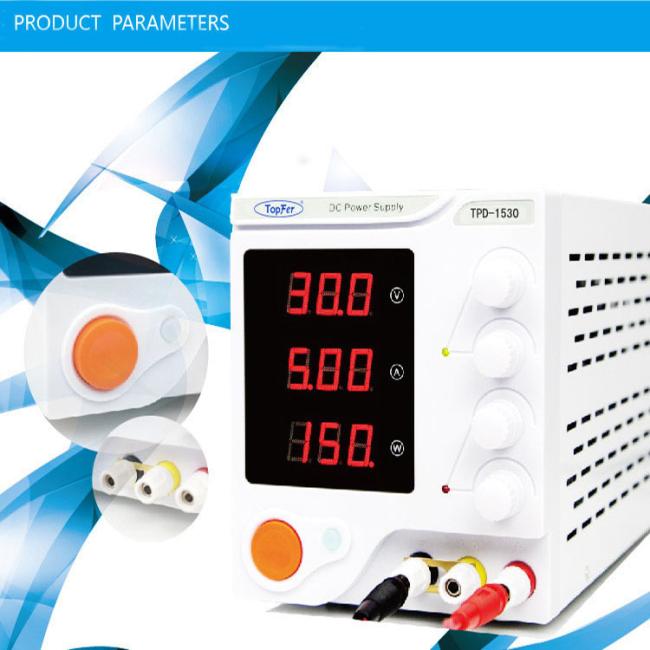

Multi Programmable DC Power Source Supply Overvoltage And Short Circuit Protection

Price Negotiable

Price: to be discussed

MOQ: one set

Delivery Time: 1 to 2 weeks

Brand: Topfer

Product Description

The programmable DC power supply has five strong protection functions: overvoltage, overcurrent, overpower, overtemperature, and short circuit

Features:

Power display
Unique ON/OFF shutoff switch
Automatic carryover of the decimal point
Presettable voltage, current, and maximum power
Long-term full load and short circuit sparking without burning the machine
Five powerful protection functions: overvoltage, overcurrent, overpower, overtemperature, and short circuit
Intelligent temperature control fan
Rear-mounted RS232/485/USB, control via upper computer software (optional)
Unique sunflower heat dissipation function (linear power supply)
High-quality pure copper toroidal transformer (linear power supply)
Six sets of quick parameter storage (programmable power supply)
Hardware List programmable sequence output (programmable power supply)
Four-in-one: standard power supply, CNC power supply, programmed power supply, programmable power supply (programmable power supply)

Specifications:

Model	TPD-1530	TPD-1560	TPD-9010	TPD-3030
Voltage	0-30V	0-60V	0-100V	0-30V
Current	0-5A	0-5A	0-3A	0-10A
Voltage Output
Output Voltage	0V - Maximum rated voltage value
Power Supply Effect	≤0.1%+1mV
Load Effect	≤0.1%+5mV
Ripple Noise	≤50mVrms
Current Output
Output Current	0V - Maximum rated current value
Power Supply Effect	≤0.1%+5mV
Load Effect	≤0.1%+5mV
Ripple Noise	≤10mArms
Display
Voltage Resolution	10mV
Current Resolution	10mA
operating environment
indoor use
altitude	≤2000m
ambient temperature	-10℃-40℃
relative humidity	≤80%
storage environment
ambient temperature	-20℃-80℃
relative humidity	≤80%
power input	AC 220V±10%,50/60Hz
