Antioxidant Nickel Chrome Alloy Tube W.Nr. 2.4816 Inconel 601 Pipe

High-Performance antioxidant Nickel Chrome Alloy Tube W.Nr. 2.4816 Inconel 601 Pipe

Product Introduction

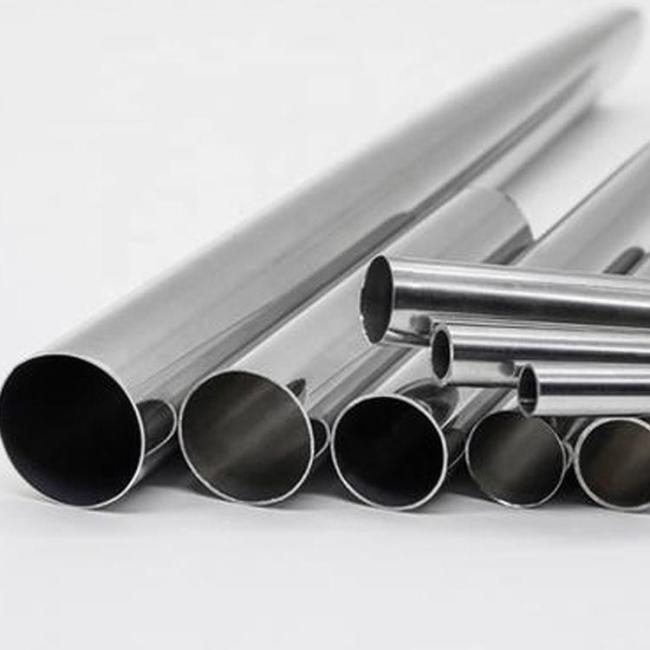

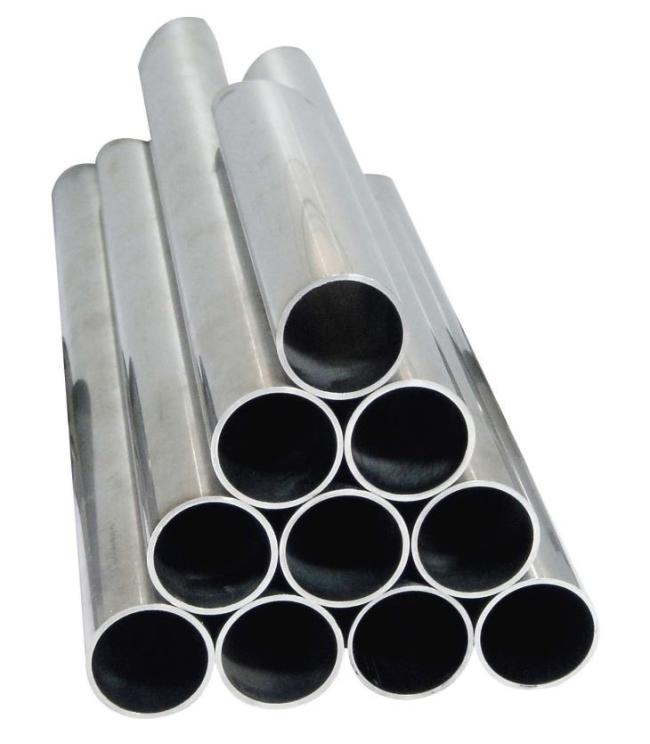

Inconel 601 tube is a high-performance nickel chromium iron-based solid solution strengthened alloy tube with excellent high-temperature corrosion resistance and oxidation resistance. Its main components include nickel (58% -63%), chromium (21% -25%), and iron (balance), as well as small amounts of aluminum (1.0% -1.7%) and silicon (0.5%). These components endow Inconel 601 tube with excellent corrosion resistance, especially in high temperature and corrosive environments. Inconel 601 tube can maintain good oxidation resistance even at temperatures up to 1180 ℃, and can generate a dense oxide film even during heating and cooling cycles, thus possessing high anti stripping properties. It has good mechanical properties at both room temperature and high temperature, with a tensile strength of up to 650 MPa (annealed) and 600 MPa (solution treated), and an elongation of 30%. Inconel 601 tube is widely used in trays, baskets, and fixtures in heat treatment plants, wire strand annealing and radiation tubes, high-speed gas burners, wire mesh belts in industrial furnaces, isolation tanks in ammonia reforming, catalytic support grids in nitric acid manufacturing, exhaust system components, combustion chambers in solid waste incinerators, pipeline supports, and ash treatment components.

Parameter

Specific Applications

Inconel 601 Tube, as a high-performance nickel based alloy, has excellent high-temperature corrosion resistance and oxidation resistance, and is widely used in the following major industrial fields:

1. Aerospace:High temperature components used in the manufacturing of aircraft engines and gas turbines, such as combustion chambers, turbine blades, etc., require long-term operation in harsh environments such as high temperature, high pressure, and strong corrosion.
2. Chemical and Petroleum:Inconel 601 is an ideal choice for manufacturing high-temperature reactors, heat exchangers, furnace tubes, distillation towers, and other equipment that operate in high temperature and corrosive environments. Its corrosion resistance and high-temperature stability make it an ideal choice.
3. Energy:Inconel 601 alloy is used to manufacture components such as steam generators, boilers, and pipelines, which need to withstand high temperature and high pressure steam environments. Its excellent performance can meet these requirements.
4. Nuclear industry:In nuclear reactors, Inconel 601 is used to manufacture key components such as control rods and heat exchangers. Its excellent radiation resistance and corrosion resistance ensure the safe operation of nuclear reactors.

Advantages and Characteristics

• Excellent high-temperature corrosion resistance:Inconel 601 has excellent oxidation resistance and carbonization resistance in high temperature environments, and can be used for a long time at temperatures up to 1180 ° C. Even in harsh heating and cooling cycles, it can generate a dense oxide film with high anti stripping properties.
• Good mechanical performance:It has good mechanical properties at both room temperature and high temperature, with a tensile strength of up to 650 N/mm ² after annealing treatment, a yield strength of up to 300 N/mm ², and an elongation of up to 30%.
• Excellent resistance to stress corrosion cracking:Due to the control of carbon content and grain size, Inconel 601 has high creep fracture strength and is therefore recommended for use in fields above 500 ° C.
• Good processing performance:Inconel 601 has excellent cold forming characteristics and can be processed through common processing techniques such as forging, rolling, bending, etc. Although its high-strength characteristics make mechanical processing relatively difficult, the manufacturing of complex components can still be achieved through reasonable processing techniques and tool selection.

Contact Us

Email:fbwlau@cnrunlai.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Related Questions and Answers

What are the main components of Inconel 601?
The main components of Inconel 601 are nickel (58-63%), chromium (21-25%), iron (balance), carbon (0.1%), manganese (1.5%), silicon (0.5%), copper (1.0%), aluminum (1.0-1.7%), phosphorus (0.02%), and sulfur (0.015%).

What is the corrosion resistance of Inconel 601?
Inconel 601 has excellent corrosion resistance, especially in high-temperature sulfur-containing atmospheres. Its high chromium and aluminum content enables it to form a dense oxide film at high temperatures, effectively preventing corrosion.

What is the high temperature strength of Inconel 601?
Inconel 601 can maintain good mechanical properties in high temperature environments, with a tensile strength of up to 650 N/mm ² after annealing treatment, a yield strength of up to 300 N/mm ², and an elongation of up to 30%. At a high temperature of 700 ° C, its tensile strength can still be maintained above 500 MPa.

What is the processing performance of Inconel 601?
Inconel 601 has good machinability, although its high strength makes mechanical processing relatively difficult, it can still achieve the manufacturing of complex components through reasonable processing techniques and tool selection. In the market, many companies have developed specialized processing tools for Inconel 601 to improve processing efficiency.
