Structure and Principle

• Structural Composition: It is mainly composed of parts such as forks, hydraulic system, handle, and wheels. The forks are used to carry goods. The hydraulic system includes a hydraulic pump and a hydraulic cylinder. The handle is manually operated to drive the hydraulic pump to work, realizing the lifting of the forks. The wheels are generally front - wheel steering and rear - wheel drive, which is convenient for the movement and steering of the pallet truck.
• Working Principle: By repeatedly pressing the handle by manpower, the hydraulic pump is driven to send hydraulic oil into the hydraulic cylinder, pushing the piston to rise, thereby driving the forks to lift the goods. When the goods need to be put down, operate the unloading valve on the handle to make the hydraulic oil return, and the forks descend under the gravity of the goods.
•

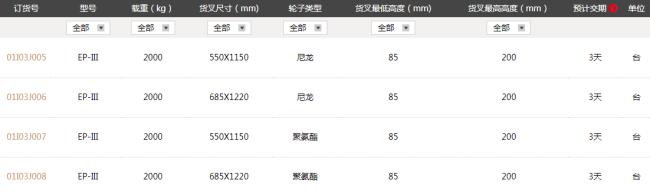

Main Parameters

• Rated Load: 2000Kg.
• Fork Dimensions: The common fork width is 680mm, the length is 1200mm, and the single - fork width is 160mm.
• Lifting Height: The minimum fork height is generally 55mm - 85mm, and the maximum fork height is between 170mm - 200mm.
• Wheel Specifications: The front - wheel specifications are usually Φ51×60mm, the rear - wheel specifications are Φ180×50mm, and the caster material is mostly polyurethane or nylon, which has the characteristics of wear - resistance, silence, and flexibility.
•

Characteristics

• Easy to Operate: It does not require an electric or other power source. Only by manually operating the handle can the lifting and handling of goods be completed. The operation is simple and easy to master.
• Flexible and Light - weight: The body is small and light - weight, and can move freely in narrow passages and spaces. It can also enter elevators fully loaded, which is suitable for use in different places.
• Safe and Reliable: Generally, it is equipped with an overload protection device. When the weight of the goods exceeds the rated load, the relief valve will automatically open to prevent the hydraulic system from being damaged by overload. At the same time, some models are also equipped with a braking device to ensure the stability of the vehicle during the handling process.
•

Brands and Prices

• Brands: There are many brands of 2T manual hydraulic pallet trucks on the market, such as Niuli, Baixibai Di, Jingsheng, etc. The products of different brands will vary in quality, performance, and price.
• Prices: Its price is relatively affordable, generally ranging from a few hundred yuan to more than one thousand yuan. The specific price depends on factors such as brand, configuration, and purchase quantity.
