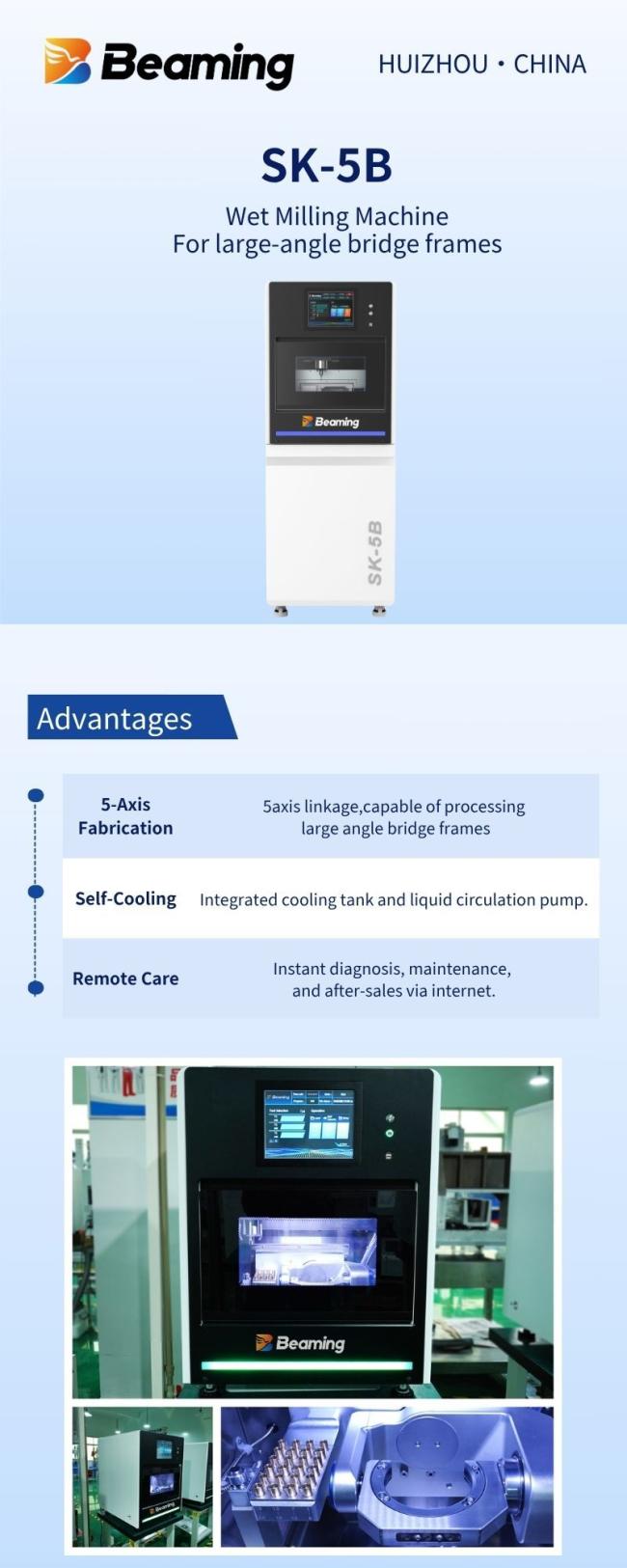

SK-5B Dental Mill 5 Axis 4500W 24 Burs 0.02mm Accuracy Abutment Ceramic Cooling Dental CNC Milling Machine
SK-5B Dental Mill 5 Axis 4500W 24 Burs 0.02mm Accuracy Abutment Ceramic Cooling Dental CNC Milling Machine
1. Product Introduction
The SK-5B Dental Milling Machine is an industrial 5-axis wet processing system engineered for the creation of high-precision dental restorations. Its robust cast aluminum structure houses a powerful 4,500W servo drive, enabling spindle speeds up to 60,000 RPM. This versatile system handles diverse materials including titanium, ceramics, and prefabricated abutments. Featuring full 360° rotation (A-axis) and significant angular tilt (B-axis), combined with an intelligent 24-position tool changer, it delivers exceptional dimensional accuracy (0.02mm) for demanding laboratory and clinical applications.
2. Applications
This system supports comprehensive dental workflows:
Fixed Prosthetics: Crowns, veneers, inlays, full/inner crowns
Implant Solutions: Custom abutments, dental bridges
Metal Frameworks: Large-angle bridge frames (5-axis linkage)
3. Advantages
Extended Tool Management: 24-cutter automatic changer reduces manual intervention during multi-material workflows
Enhanced Angular Range: ±30° B-axis tilt with continuous A-axis rotation enables complex geometry processing
Material Processing Efficiency: 60,000 RPM spindle capability supports ceramic and metal milling requirements
Proactive Maintenance: Remote diagnostics facilitate timely technical support

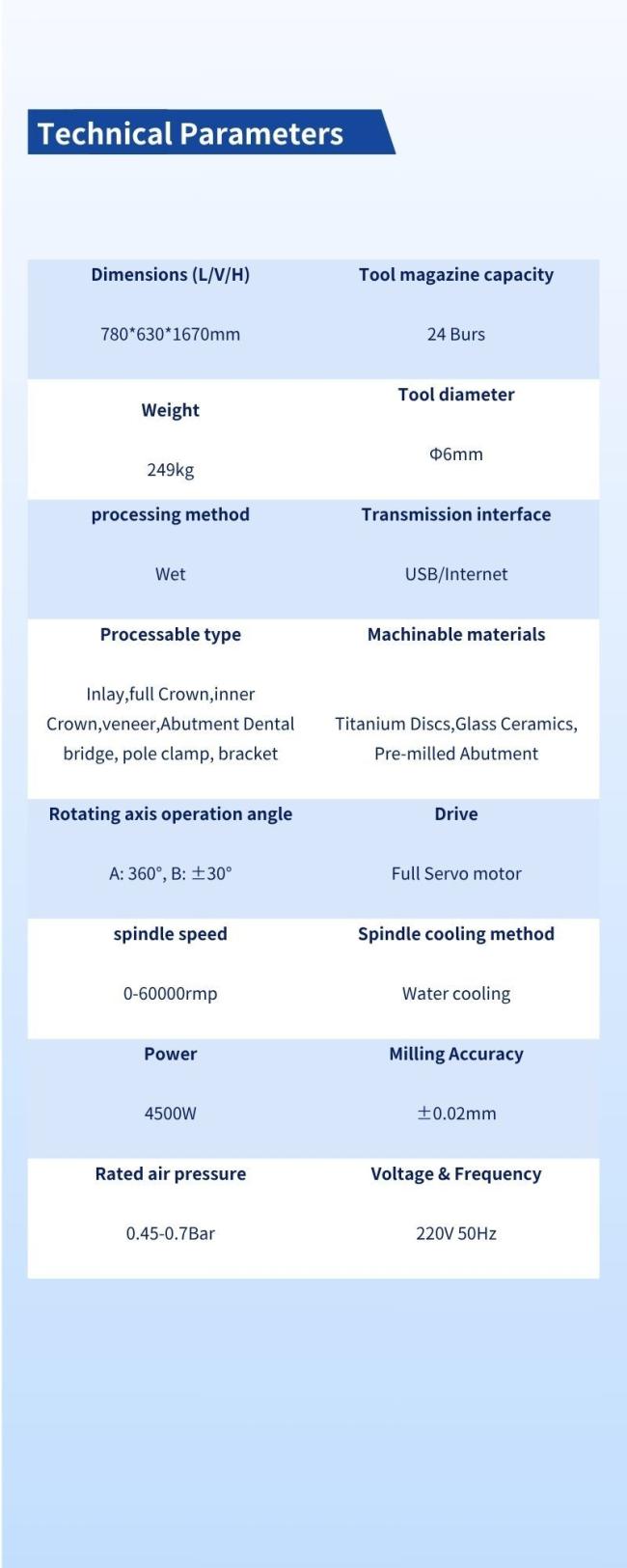

4. Technical Characteristics
| Feature | Specification |
|---|---|
| Drive System | 4,500W servo motor |
| Spindle Performance | 0–60,000 RPM with automatic tool changing |
| Positional Accuracy | 0.02mm |
| Cooling System | Integrated liquid circulation with reservoir |
| Workflow Support | Touchscreen interface with breakpoint recovery |
| Processing Method | wet milling |
