Name: Control Handle
Brand: KAD
Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively.
1.6 Ton Reach Pallet Stacker Rated Loaded Electric Counterbalanced Stacking Forklift
Price:
CN¥7,267.40/units 1-4 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
KAD
Product Description
Product Description
Product Application

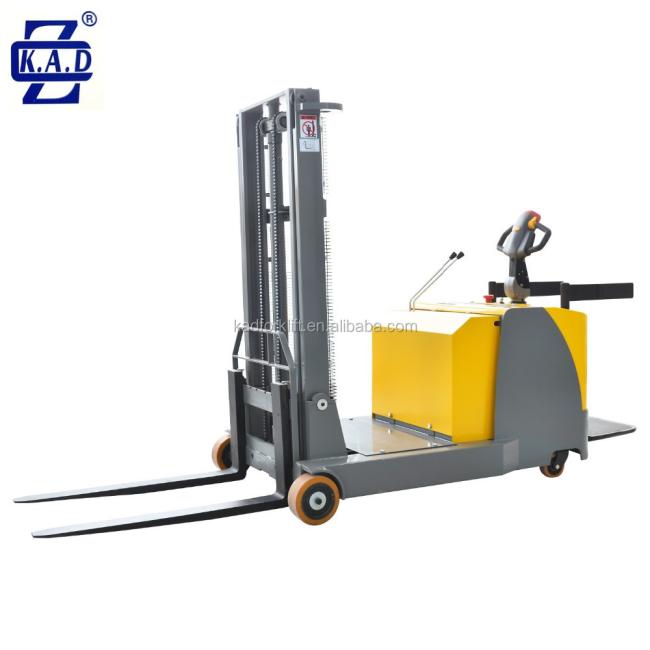

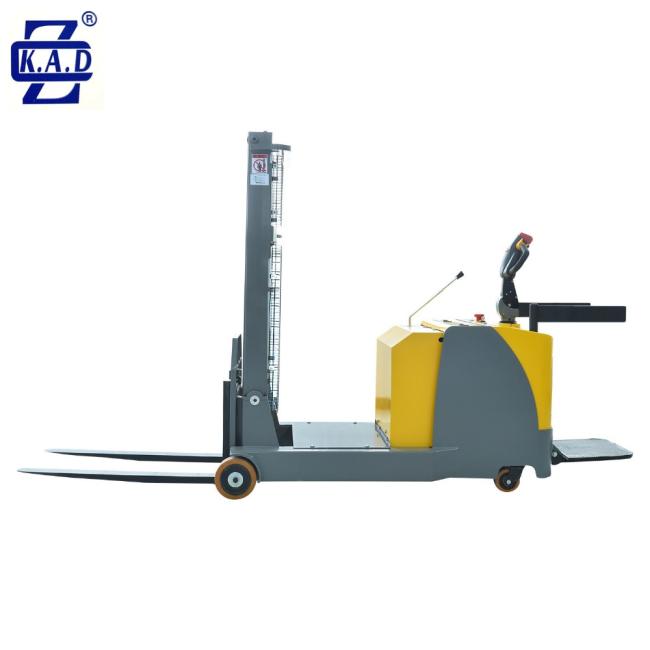

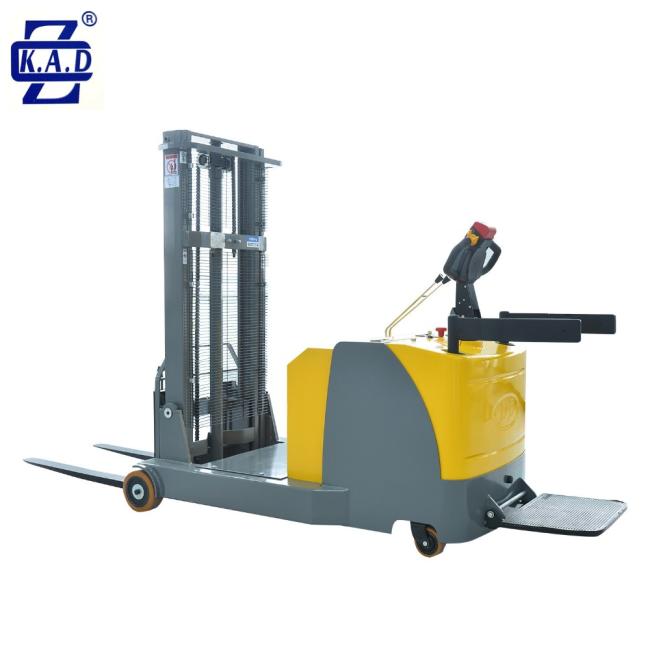

Counterbalanced stacker is equipped with counterweight block, fork can be tilted forward and backward, optional side shift, suitable for different types of pallets and goods shelves. The forklift body is compact and suitable for narrow aisle operation. High strength body and chassis, strong and durable, ensure that forks handle heavy cargo easily.
Forklift for sale 1.6ton reach pallet stacker rated loaded electric counterbalanced stacking forklift
|
Model
|
|
|
CPD10 CPD15
|
|
|
Features
|
Drive system
|
|
Battery
|
|
|
|
Driving mode
|
|
RIDE-ON
|
|
|
|
Load Capacity
|
KG
|
1000/1500
|
|
|
|
Load Center
|
MM
|
500
|
|
|
Weight
|
Weight(With battery)
|
KG
|
1350/14301510/1590
|
|
|
Wheels
|
Material
|
|
PU
|
|
|
Size
|
Lifting Height
|
MM
|
1600/2000/2500/3000
|
|
|
|
Lowest Mast
|
MM
|
2080/1580/1830/2080
|
|
|
|
Max.Height when operating
|
MM
|
2080/2730/3230/3730
|
|
|
|
Min.Height of Fork
|
MM
|
80
|
|
|
|
Length
|
MM
|
2955
|
|
|
|
Width
|
MM
|
1100
|
|
|
|
Fork Length
|
MM
|
1070
|
|
|
|
Wheelbase
|
MM
|
1500
|
|
|
|
Fork Outside Width
|
MM
|
680
|
|
|
|
Fork Inside Width
|
MM
|
480
|
|
|
|
Min.Turning Radius
|
MM
|
1850
|
|
|
Performance data
|
Driving Speed
(Empty/Full Load)
|
MM/S
|
5.0/4.0
|
|
|
|
Lifting Speed
(Empty/Full Load)
|
MM/S
|
80/50
|
|
|
|
Descending Speed
(Empty/Full Load)
|
MM/S
|
75/80
|
|
|
|
Max.Gradient
(Empty/Full Load)
|
°
|
5
|
|
|
|
Brake
|
|
Electromagnetic brake
|
|
|
Motor
|
Driving Motor
|
KW
|
DC/1.5
|
|
|
|
Lifting Motor
|
KW
|
DC/2.2
|
|
|
Battery
|
Capacity
|
V/Ah
|
24/210
|
|
Main Features
1.Balanced weight design, suitable for all kinds of pallets and shelves, high strength body and chassis, strong and durable, to ensure that forks handle heavy goods easily.
2.Heavy steel door frame, double cylinder design, smooth lifting, wide operating field
3.Electric control of imported Curtis
4.Open internal structure, clear layout of numbered wiring harness, easy maintenance
5.The timer and meter can display the power usage at any time, so as to inform the operator to charge in time.
6. Fordable ergonomic pedals reduce the workload of operators.
7.The electronic limit switch is installed on the portal frame to accurately control the maximum lifting height of the portal frame and prevent damage to the lifting motor.
8.Safety nets are installed on the gantry to protect operators from accidental injuries.
9.Air spring automatic reset casting handle; automatic folding pedal for optional matching
10.Painted car body, assembly line, guaranteed process
Detailed Images
Machine Parts
Operation panel
Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.
Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.
Machine Parts
Strong cylinder and chain make fork run smoothly.
1-stage,2-stage,3-stage mast can be selected.
Main Features
Side positioned drive system and strong caster, easy to manage stability.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas when you become our distributors
Our Company
Certifications
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
