Name: Control Handle
Brand: KAD
Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively.
Electric Stacker 1.5 Ton 3 Meter All Electric Stacker Hydraulic Full Electric Pallet Stacker Standing Driving Forklift
Price:
CN¥23,873.41/units 1-4 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
KAD
Product Description
Product Description
Product Application

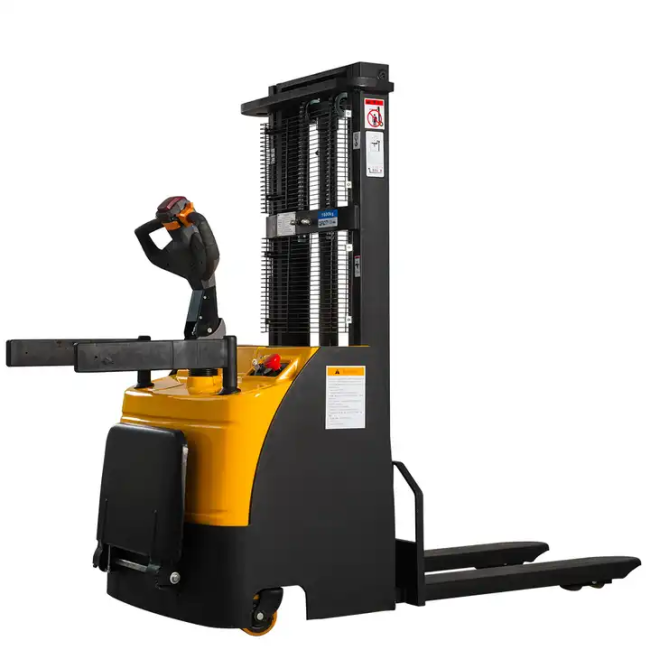

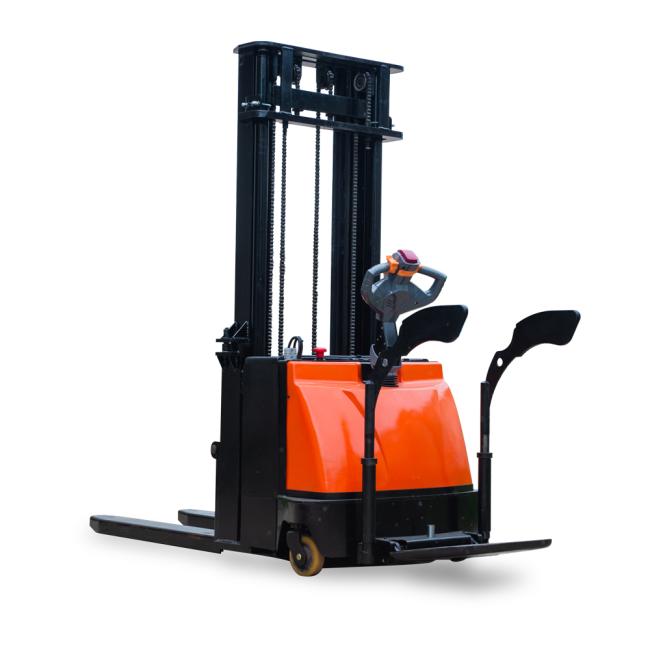

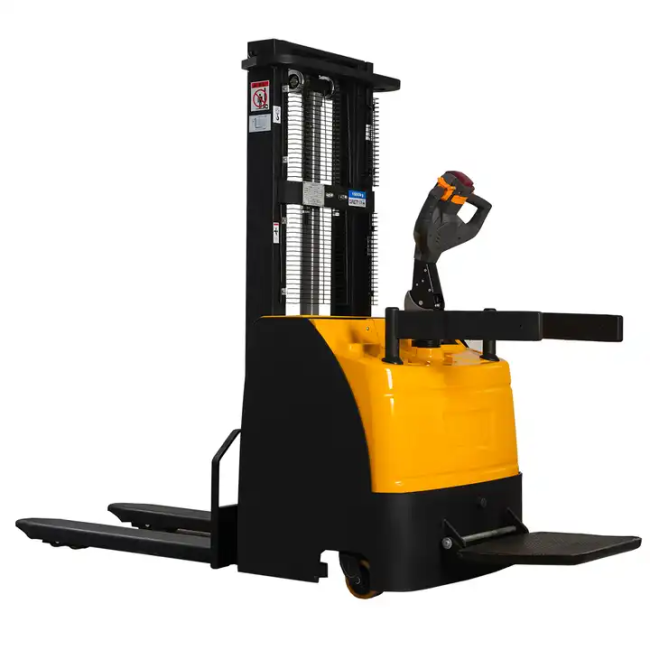

Electric Stacker 1.5 Ton 3 Meter All Electric Stacker Hydraulic Full Electric Pallet Stacker Standing Driving Forklift
It is suitable for the operation in narrow passage and limited space, and is the ideal equipment for loading and unloading palletizing in high-bay warehouses and workshops. It can be widely used in petroleum, chemical, pharmaceutical, light textile, paint, pigment, coal and other industries, as well as ports, railroads, freight yards, warehouses, etc. It can be used to enter into cabins, compartments and containers for loading and unloading of palletized goods, stacking and handling operations.
Main Features
1.AC drive motor, no carbon brushes ,free maintenance reducing maintenance cost.
2.Vertical drive motor make the inspection and repair more convenient, which perform much better than the horizontal motor. 3.The design of integrated micro-switches, easy for replacement. 4.Battery cover is easy to open, convenient to add distilled water or electrolyte of the battery.
5.Display with hour time and battery status, to remind the operator to charge battery in time.
6.Controller self-diagnosis system makes troubleshooting easier.
Specification
MODEL | CDD12 CDD16 CDD20 | ||||
Features | Drive system | Battery | |||
Features | Driving mode | Standing | |||
Load Capacity | Q | KG | 1200/1600/2000 | ||
Load Center | C | MM | 500 | ||
Weight | Weight(With battery) | KG | 830/880/910/940/970 | ||
Wheels | Material | PU | |||
Size | Lifting Height | H3 | MM | 1600/2000/2500/3000/3500/4000/5000 | |
Lowest Mast | H1 | MM | 2080/1580/1830/2080/2330/1820/2020 | ||
Max.Height when operating | H4 | MM | 2080/2730/3230/3730/4230/4460/4960 | ||
Min.Height of Fork | H13 | MM | ≤90 | ||
Length | L1 | MM | 2130 | ||
Width | B1 | MM | 850 | ||
Size | Fork Length | L | MM | 1070 | |
Wheelbase | Y | MM | 1430 | ||
Fork Outside Width | B5 | MM | 550/680 | ||
Fork Inside Width | MM | 225/355 | |||
Min.Turning Radius | WA | MM | 1738/2099 | ||
Performance | Driving Speed （Empty/Full Load） | MM/S | 6.5/5.0 | ||
Lifting Speed （Empty/Full Load） | MM/S | 80/50 | |||
Descending Speed （Empty/Full Load） | MM/S | 120 | |||
Max.Gradient （Empty/Full Load） | ° | 6 | |||
Brake | Electromagnetic brake | ||||
Driving Motor | KW | DC/0.75/1.2/1.5 | |||
Lifting Motor | KW | DC/2 | |||
Battery | Capacity | V/Ah | 24//210 | ||
Detailed Images
Machine Parts
Operation panel
Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.
Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.
Machine Parts
Strong cylinder and chain make fork run smoothly.
1-stage,2-stage,3-stage mast can be selected.
Main Features
Side positioned drive system and strong caster, easy to manage stability.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas if become our distributor
Our Company
Related Products
Hand Pallet Truck
Manual Stacker
Drum Stacker
Full electric Stacker
Semi-electric Stacker
Electric Reach Stacker
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
