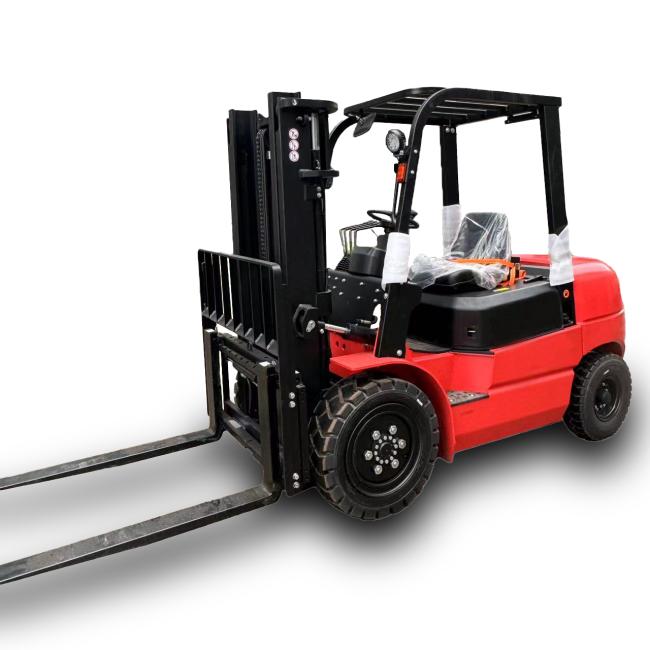

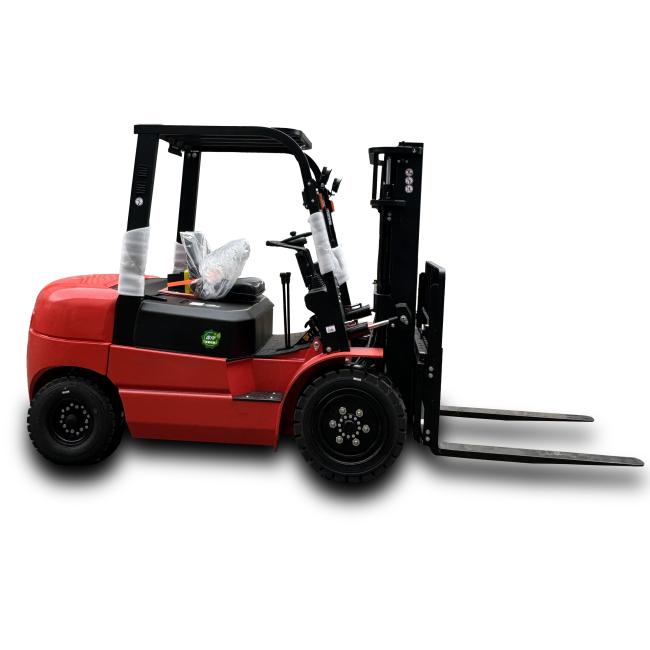

3000kg 4 Wheel Agricultural Diesel Forklift stacker with Side Shift CE Approved Lift 6000mm
Price:
CN¥58,139.20/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
KAD
Product Description
3000kg 4 Wheel Agricultural Diesel Forklift stacker with Side Shift CE Approved Lift 6000mm
The diesel forklift is a material handling equipment widely used in warehouses, factories, and logistics centers. Powered bydiesel, it offers robust power and extended operation time, suitable for both indoor and outdoor working environments.
Features | 1.1 | Model | CPDW0930 | CPDW1030 | CPDW1230 | |
1.2 | Power | Electric | Electric | Electric | ||
1.3 | Operation mode | Walkie | Walkie | Walkie | ||
1.4 | Rated load capacity | Q(Kg) | 900 | 1000 | 1200 | |
1.5 | Load centre distance | C(mm) | 500 | 500 | 500 | |
1.6 | Front overhang | X(mm) | 71 | 71 | 85 | |
1.7 | Wheelbase | Y(mm) | 1070 | 1340 | 1312 | |
Weight | 2.1 | Weight with battery | kg | ~1290 | ~1320 | ~1480 |
Wheels | 3.1 | Wheel Type Front/Rear | Polyurethane/Polyurethane | Polyurethane/Polyurethane | Polyurethane/Polyurethane | |
3.2 | Front wheel size | ∅×w(mm) | Φ140x100 | Φ140x100 | Φ210x85 | |
3.3 | Rear wheel size | ∅×w(mm) | Φ210x70 | Φ210x70 | Φ250x80 | |
3.4 | Wheelbase, front wheel | b2(mm) | 816 | 816 | 801 | |
Dimensions | 4.1 | Height with gantry closed | H1(mm) | 2065 | 2065 | 2115 |
4.2 | Free lift height | h2(mm) | 0 | 0 | 0 | |
4.3 | Lifting height | H(mm) | 3000 | 3000 | 3000 | |
4.4 | Maximum height of gantry during operation | H2(mm) | 3913 | 3913 | 3913 | |
4.5 | Fork height when gantry retracted | H3(mm) | 35 | 35 | 35 | |
4.6 | Length (without/with forks) | L(mm) | 1382/2303 | 1650/2573 | 1720/2646 | |
4.7 | Vehicle width (lifting height 3500mm) | b1(mm) | 916 | 916 | 886 | |
4.8 | Fork size | s/e/l(mm) | 35/100/920 | 35/100/920 | 35/100/920 | |
4.9 | Fork adjustment size | b5(mm) | 200-580 | 200-580 | 200-580 | |
4.10 | Minimum ground clearance (wheelbase centre) | m2(mm) | 40 | 40 | 40 | |
4.11 | Stacking aisle width, pallet 1000 x 1200 | Ast(mm) | 2720 | 2956 | 2846 | |
4.12 | Stacking aisle width, pallet 1000 x 1200 | Ast(mm) | 2859 | 3094 | 3083 | |
4.13 | Minimum turning radius | Wa(mm) | 1257 | 1528 | 1480 | |
Performances | 5.1 | Travelling speed, empty/full load | km/h | 4.0/3.5 | 4.0/3.5 | 4.0/3.5 |
5.2 | Lifting speed, empty/full load | m/s | 0.215/0.145 | 0.205/0.130 | 0.2/0.130 | |
5.3 | Descent speed, empty/full load | m/s | 0.105/0.125 | 0.105/0.130 | 0.105/0.130 | |
5.4 | Maximum climbing capacity, unladen/fully loaded | ％ | 5.0/4.5 | 5.0/4.0 | 5.0/4.0 | |
5.5 | Travelling brake | Electromagnetic | Electromagnetic | Electromagnetic | ||
Motor | 6.1 | Drive motor power | kw | 0.75 | 0.75 | 1.5 |
6.2 | Lifting motor power | kw | 2.2DC | 2.2DC | 2.2DC | |
6.3 | Battery type | Lead Acid Battery | Lead Acid Battery | Lead Acid Battery | ||
6.4 | Battery voltage/capacitance | V/Ah | 24/100 | 24/100 | 24/150 | |
6.5 | Charger | v/A | 24/10 | 24/10 | 24/10 | |
Others | 7.1 | Drive control mode | DC | DC | AC | |
7.2 | Driver's ear noise level according to EN12053 | dB(A) | 70 | 70 | 70 |
Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order. Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
