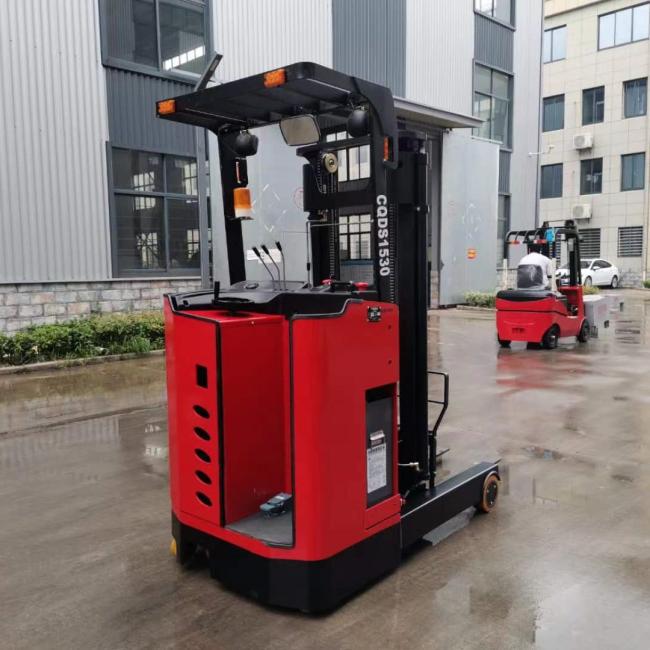

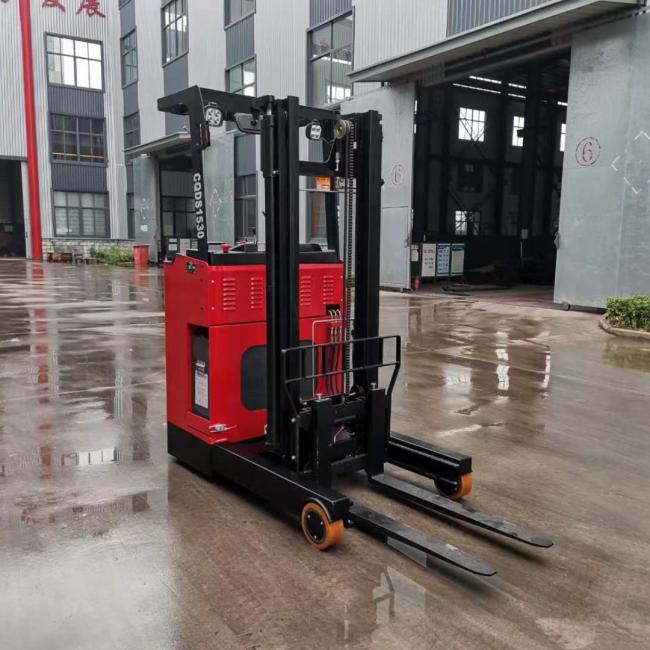

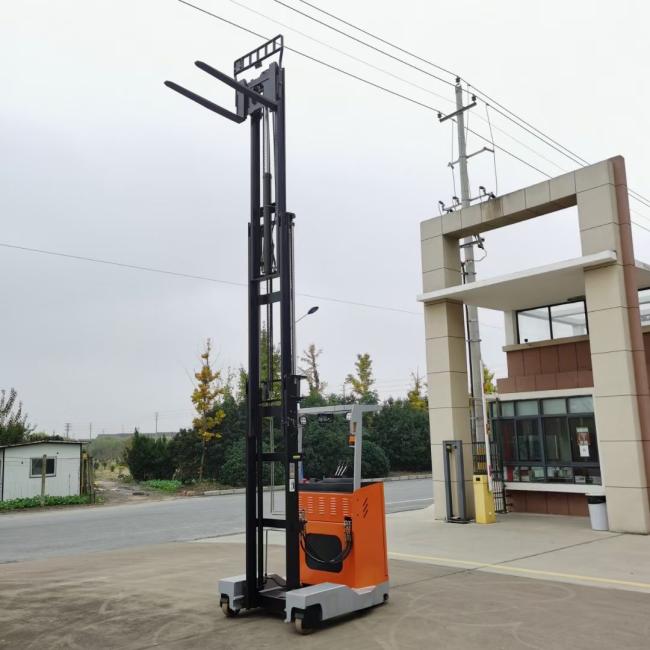

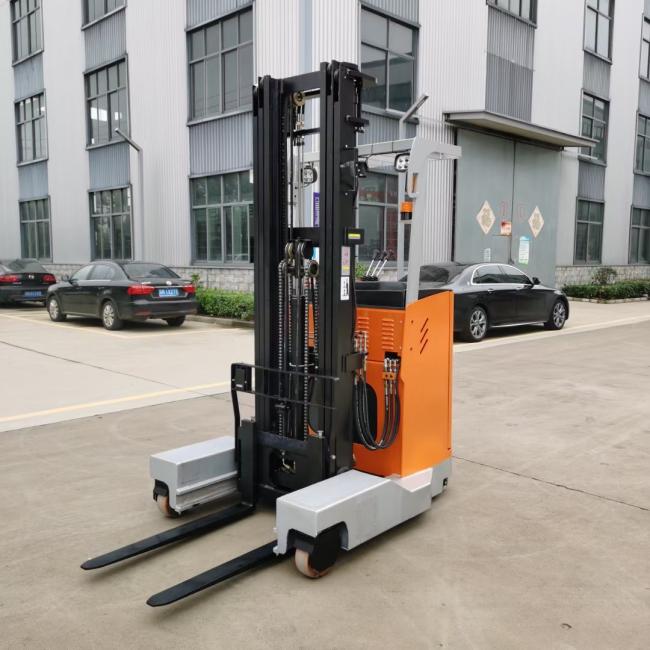

Forklift Truck Stacker 1500kg 1.5 Ton With Triple Mast 5m Lifting Height
Product Application
Main Features
1. Equipped with electronic drive wheels, which makes the operation more flexible and convenient, and has the function of turning and deceleration. 2.280Ah large-capacity battery can be used for long time work, and the side-pull battery can be replaced at any time. 3.One-piece forged forks with stronger load-bearing and up and down swing function. Suitable for all kinds of single-sided, double-sided, tic-tac-toe and chuan-tac-toe pallets. 4. Large oil cylinder to ensure that the whole gantry move forward gently, up and down smoothly.
|
Model
|
|
CQDS1030
|
CQDS1530
|
CQDS2030
|
|
Load Capacity
|
kg
|
1000
|
1500
|
2000
|
|
Lifting Height
|
mm
|
3000
|
3000
|
3000
|
|
Load Center
|
mm
|
500
|
500
|
500
|
|
Fork size
|
mm
|
1070*100*40
|
1070*100*40
|
1070*100*40
|
|
Ground Clearance
|
mm
|
45
|
45
|
45
|
|
Control Way
|
|
Steering Wheel
|
Steering Wheel
|
Steering Wheel
|
|
Speed Regulation Way
|
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
|
Protection Guard Height
|
mm
|
2200
|
2200
|
2200
|
|
Mast Tilt Angle (front/rear)
|
(°)
|
3.0/6.0
|
3.0/6.0
|
3.0/6.0
|
|
The Min.Turning Radius
|
mm
|
1600
|
1600
|
1800
|
|
Driving Speed with Full Loads
|
km/h
|
4.4
|
4.4
|
4.4
|
|
Maximum gradient with full load
|
°
|
5
|
5
|
5
|
|
Battery
|
V/Ah
|
24/280
|
24/280
|
24/280
|
|
Driving Motor
|
kw
|
1.2
|
1.2
|
1.2
|
|
Lifting Motor
|
kw
|
4.5
|
4.5
|
4.5
|
|
Overall dimensions(L*W*H)
|
mm
|
2370*1020*2200
|
2370*1020*2200
|
2370*1020*2200
|
|
Weight
|
kg
|
2000
|
2100
|
2200
|
|
Reference WorkingTime
|
h
|
6
|
6
|
6
|
|
Reach Distance
|
mm
|
500
|
500
|
500
|
|
lncreased height each tonnage
|
mm
|
1600/2000/2500/
3000/3500
|
1600/2000/2500/3000/3500
|
1600/2000/2500/3000/3500
|
|
Max height
|
mm
|
2100/1600/1850/
2100/2350
|
2100/1600/1850/2100/2350
|
2100/1600/1850/2100/2350
|
