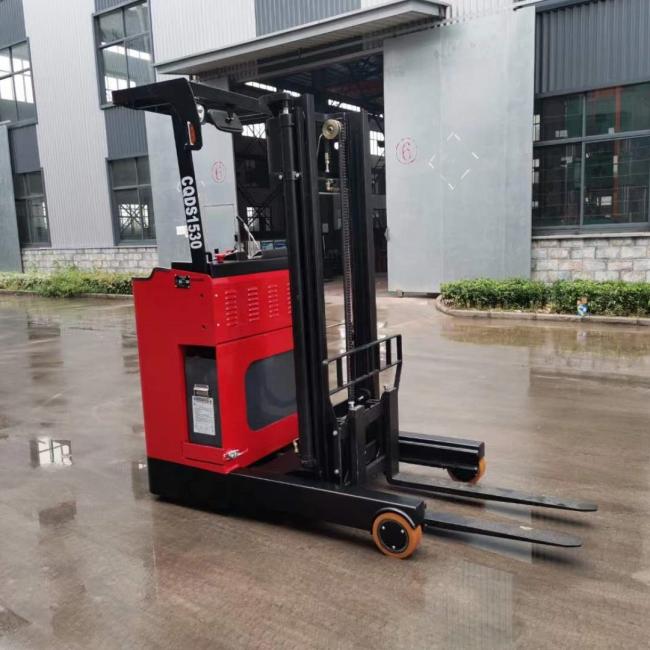

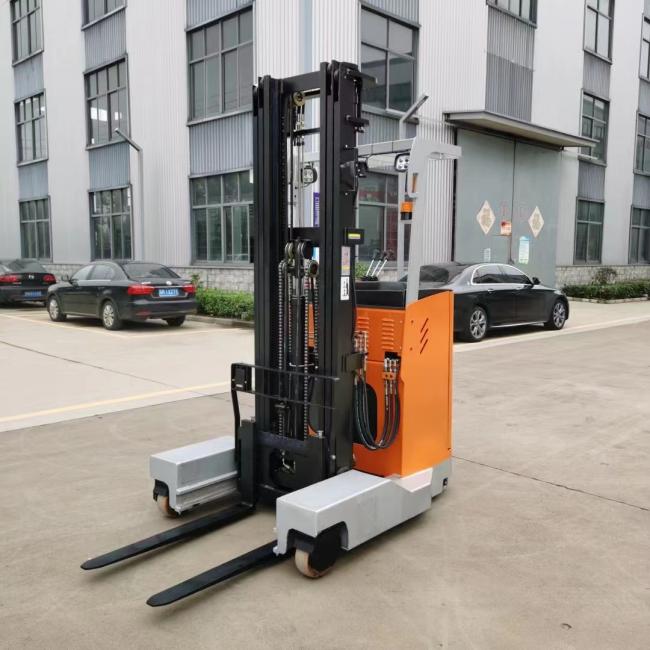

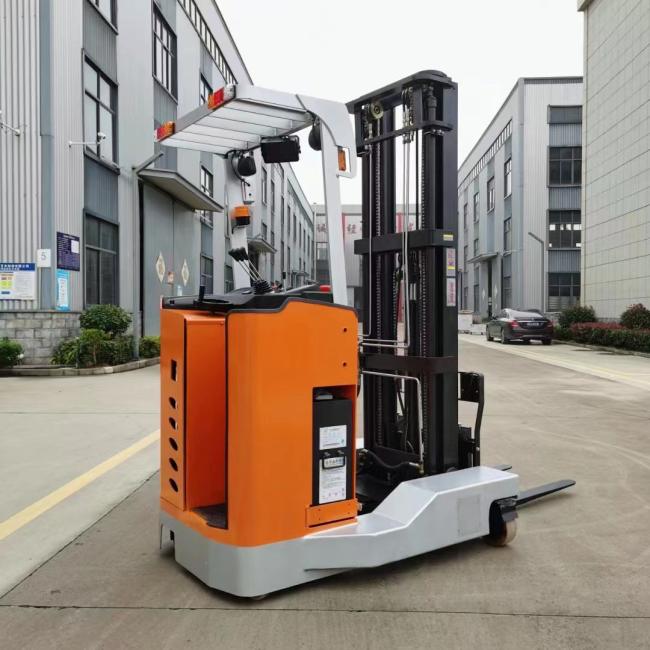

Electronic stand on reach truck 1T 3m large capacity battery forklift
Price:
CN¥58,139.20/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
KAD
Product Description


Model | CQDS1030 | CQDS1530 | CQDS2030 | |||
Load Capacity | kg | 1000 | 1500 | 2000 | ||
Lifting Height | mm | 3000 | 3000 | 3000 | ||
Load Center | mm | 500 | 500 | 500 | ||
Fork size | mm | 1070*100*40 | 1070*100*40 | 1070*100*40 | ||
Ground Clearance | mm | 45 | 45 | 45 | ||
Control Way | Steering Wheel | Steering Wheel | Steering Wheel | |||
Speed Regulation Way | Stepless Speed Regulation | Stepless Speed Regulation | Stepless Speed Regulation | |||
Protection Guard Height | mm | 2200 | 2200 | 2200 | ||
Mast Tilt Angle (Front/Rear) | (°) | 3.0/6.0 | 3.0/6.0 | 3.0/6.0 | ||
The Min.Turning Radius | mm | 1600 | 1600 | 1800 | ||
Driving Speed with Full Loads | km/h | 4.4 | 4.4 | 4.4 | ||
Gradient | ° | 5 | 5 | 5 | ||
Battery | V/Ah | 24/280 | 24/280 | 24/280 | ||
Driving Motor | kw | 1.2 | 1.2 | 1.5 | ||
Lifting Motor | kw | 4.5 | 4.5 | 4.5 | ||
Overall dimensions(L*W*H) | mm | 2370*1020*2200 | 2370*1020*2200 | 2570*1120*2200 | ||
Weight | kg | 1600 | 1700 | 1800 | ||
Reference Working Time | h | 6 | 6 | 6 | ||
Reach Distance | mm | 500 | 500 | 500 | ||
Increaced height each tonnage | mm | 1600/2000/2500/3000/3500 | ||||
Max height | 2100/1600/1850/2100/2350 | |||||




Main Features
1. Equipped with electronic drive wheels, making the operation more flexible and convenient, with turning deceleration function. 2.280Ah large-capacity battery can be used for long time work, and the side-pull battery can be replaced at any time. 3. One-piece forged forks with stronger load bearing, forks with up and down swing function, suitable for all kinds of single-sided, double-sided, parallel and Chuanzi-style pallets. 4. Large oil cylinder ensures the whole gantry move forward gently, rise and fall smoothly.




Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order. Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
