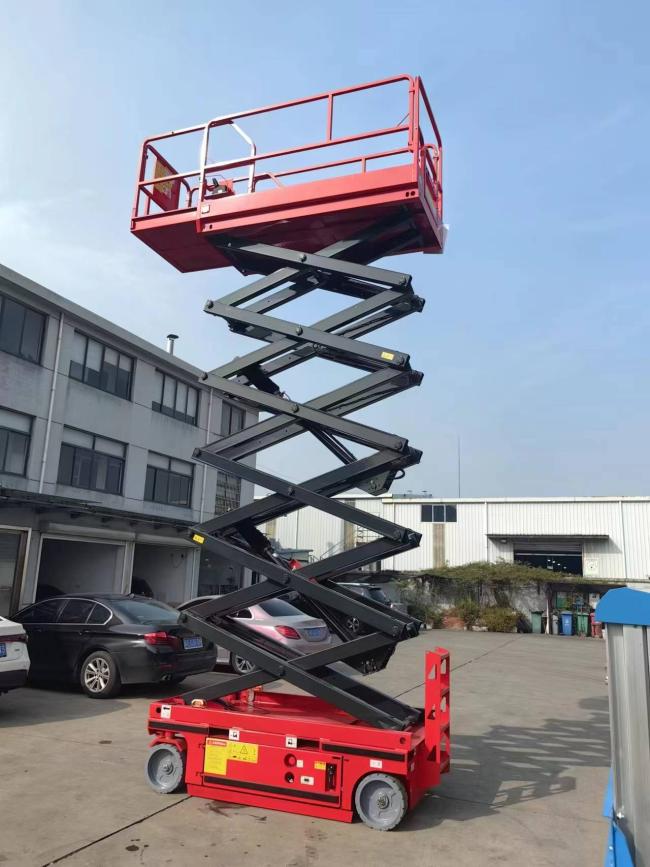

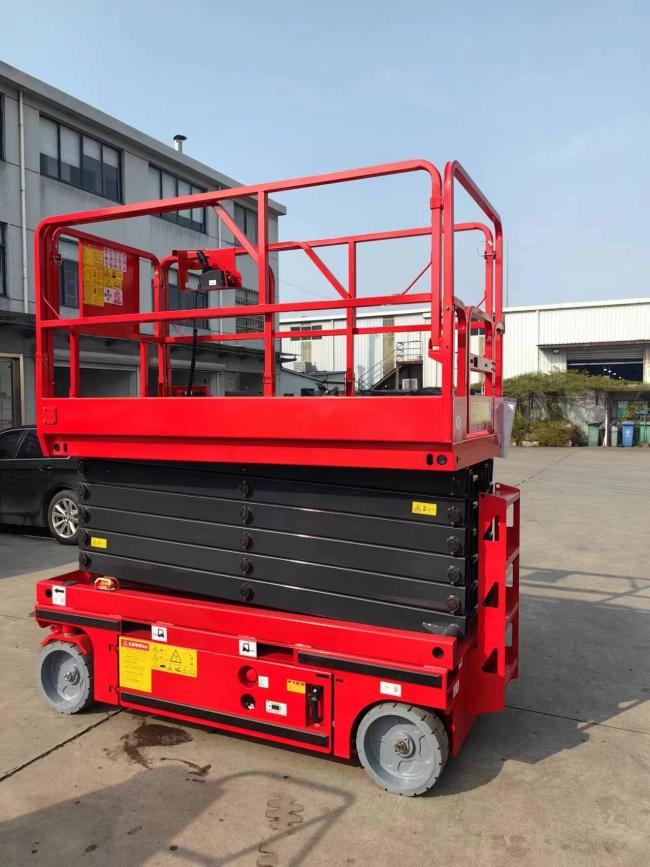

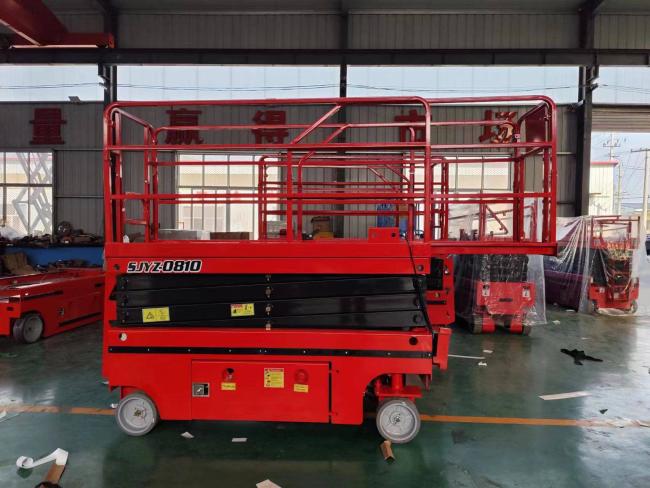

Portable 230kg load capacity 7.8m working height electric aerial work Platform lift
Price:
CN¥27,616.12/units 1-4 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
KAD
Product Description
Product Description
Portable 230kg load capacity 7.8m working height electric aerial work Platform lift
Monorail aluminum alloy Platform Ladders are an advanced vertical cargo Platform Ladder equipment widely used in various industrial and commercial places. It is mainly used for lifting and handling goods, and has been widely used in logistics warehousing, manufacturing, shopping malls, warehouses and other fields. Monorail aluminum alloy Platform Ladders are commonly used in factories and production lines, for industrial production processes such as going up and down stairs, lifting, and loading and unloading of goods. Warehouse logistics: In the field of logistics and warehousing, monorail aluminum alloy Platform Ladders are widely used in the loading and unloading, warehousing, and handling of goods, improving logistics efficiency. Shopping malls and supermarkets: In retail locations such as shopping malls and supermarkets, monorail aluminum alloy Platform Ladders are commonly used for transporting goods up and down floors, improving the efficiency of product display and handling. Hospitals and office buildings: In hospitals and office buildings, monorail aluminum alloy Platform Ladders are also commonly used for the up and down stairs of documents, equipment, and other items, providing convenient handling services.
Model | MX580S | MX600SN | MX800SN | MX800S | MX1000S | MX1200S |
S.W.L | 230kg | 230kg | 230kg | 450kg | 320kg | 320kg |
S.W.L on Extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
Max.Workers Number | 2 | 2 | 2 | 2 | 2 | 2 |
Working height max | 7.8m | 8m | 10m | 10m | 12m | 13.8m |
Platform height max | 5.8m | 6m | 8m | 8m | 10m | 11.8m |
Overall Length | 1.81m | 2.43m | 2.43m | 2.43m | 2.43m | 2.43m |
Overall Width | 0.76m | 0.81m | 0.81m | 1.15m | 1.15m | 1.15m |
Overall Height( Rails Up) | 2.16m | 2.18m | 2.3m | 2.31m | 2.42m | 2.55m |
Overall Height( Rails Down) | 1.82m | 1.85m | 1.87m | 1.76m | 1.91m | 2.03m |
Platform size(LxW) | 1.67m*0.74m | 2.27m*0.81m | 2.27m*0.81m | 2.27m*1.12m | 2.27m*1.12m | 2.27m*1.12m |
Platform extension size | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m |
Ground Clearance ( Stowed) | 0.09m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m |
Ground Clearance(Raised) | 0.019m | 0.019m | 0.019m | 0.019m | 0.019m | 0.019m |
Wheelbase | 1.36m | 1.87m | 1.87m | 1.87m | 1.87m | 1.87m |
Turning radius (inside) | 0m | 0m | 0m | 0m | 0m | 0m |
Turning radius (outside) | 1.64m | 2.10m | 2.10m | 2.20m | 2.20m | 2.20m |
Lift/Drive Motor | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw |
Travel Speed( Stowed) | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h |
Travel Speed( Raised) | 1km/h | 1km/h | 1km/h | 1km/h | 1km/h | 1km/h |
Raise/Lower time | 18/22sec | 35/25sec | 40/30sec | 40/30sec | 60/40sec | 70/45sec |
Power source | 4*6V/210Ah | 4*6V/225Ah | 4*6V/225Ah | 4*6V/225Ah | 4*6V/240Ah | 4*6V/260Ah |
Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
Gradeability | 25% | 25% | 25% | 25% | 25% | 25% |
Maximum Working Slope | 1.5°/3° | 2°/3° | 1.5°/3° | 2°/3° | 2°/3° | 1.5°/3° |
Tire size | 305*100 | 380*129 | 380*129 | 380*129 | 380*129 | 380*129 |
Weight | 1400kg | 1945kg | 2100kg | 2175kg | 2468kg | 2830kg |
Main Features
1. Customized height:
According to different needs, monorail aluminum alloy elevators can be customized in terms of height, load capacity, platform size, etc. to adapt to different usage scenarios.
2. Lightweight and Durable:
Made of aluminum alloy material, it has the characteristics of being lightweight, sturdy, and durable. It can withstand large load pressures while reducing its own weight.
3. Flexible and diverse installation methods:
Different installation methods such as upright installation, pit installation, and up and down walking can be selected according to customer needs to meet different spatial layout requirements.
4. Safe and reliable:
The equipment is equipped with various safety devices, such as anti fall devices, limit switches, safety touch plates, etc., which improve the safety of use.
5. Efficient and energy-saving:
Adopting advanced electric drive technology, it has lower energy consumption and efficient cargo lifting ability, while reducing energy consumption.
6. Low noise:
Adopting advanced shock absorption and noise reduction design technology, the noise during operation is relatively low, reducing interference to the working environment.
