0.01mm Pore PVDF Hollow Fiber Membrane 29M2 Surface Area For Water Treatment Systems
Price:
Negotiable
MOQ:
5
Delivery Time:
Negotiable
Brand:
SINOMEMB
Product Description
UF Membrane Element with Wire Protection for Safe and Stable Operation in Water Treatment System
The normal start-up and regular cleaning maintenance of the UF system are essential for ensuring long-term performance of membrane products. Before system startup, verify that all valves, instruments, pre-treatment equipment, signal transmission devices, and power equipment parameters meet design specifications to guarantee safe, stable, and compliant system operation. Refer to the product technical manual for detailed system commissioning and testing procedures.
Disclaimer
Failure to strictly adhere to the specified operating limits and guidelines voids our limited warranty. When the UF system is not in operation, inject protective liquid into the membrane module for corrosion prevention to avoid increased maintenance costs from microbial growth in the system.
Partial OEM Model Parameters of SINOMEMB® UF Membrane
| UF Specifications and Models | Membrane Material | Operation Mode | Membrane Element Size (mm) | Effective Membrane Area (㎡) | Nominal Filter Pore Size (μm) |
|---|---|---|---|---|---|
| SNU-HO-2-D1020AN | PVDF | Outside-in | Φ216×1120 | 29 | 0.01 |
| SNU-HO-2-SP40 | PVDF | Outside-in | Φ160×1804 | 40 | 0.03 |

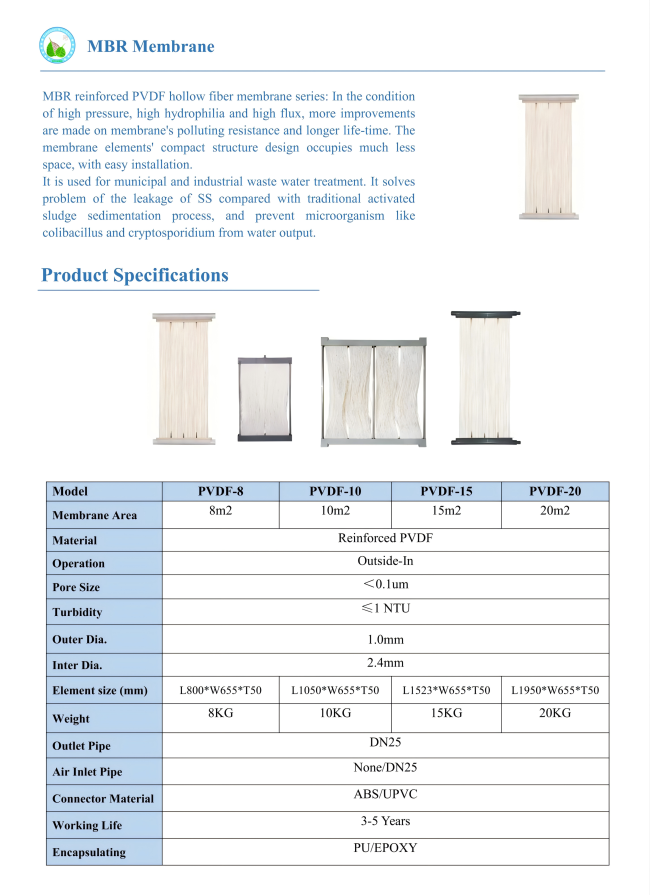

Product Description

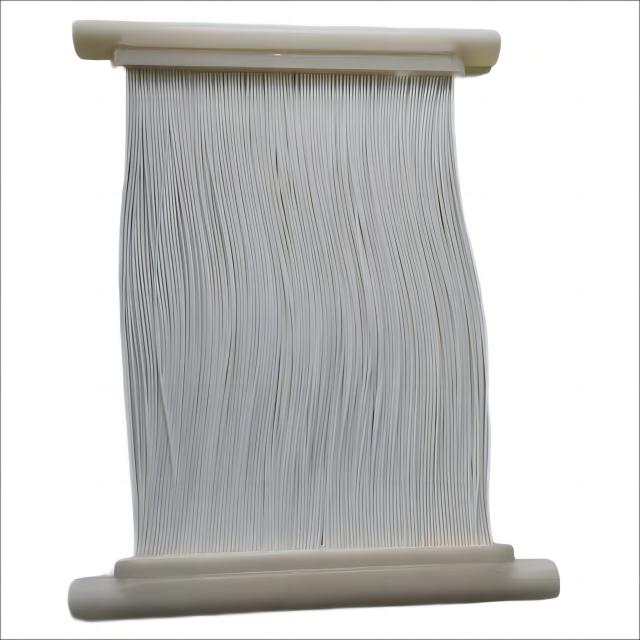

MBR Reinforced PVDF Hollow Fiber Membrane series: In the condition of high pressure, high hydrophilia and high flux, more improvements are made on membrane^ polluting resistance and longer life-time. The Industrial Curtain Membrane elements* compact structure design occupies much less space, with easy installation. It is used for municipal and industrial waste water treatment. Curtain MBR Membrane solves problem of the leakage of SS compared with traditional activated sludge sedimentation process, and prevent microorganism like colibacillus and cryptosporidium from water output
Company Information
We are a high-tech enterprise specializing in reverse osmosis membranes, ultrafiltration membranes, nanofiltration and MBR membrane assembly, production, and sales services, as well as system design and proprietary solutions. With core technology in reverse osmosis membrane component preparation and high production capacity, we aim to establish a premium membrane production and sales brand in China.
Our product range includes reverse osmosis membrane components, nanofiltration membrane components, ultrafiltration membrane components, and MBR membranes, widely used in water purification, medical pharmaceuticals, municipal water supply, boiler replenishment, electronic ultrapure water, and material concentration/separation industries. Our products, known for outstanding quality and excellent service, are exported worldwide.
