Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines
Price:
$23,500
MOQ:
1
Delivery Time:
Negotiable
Brand:
RD
Product Description

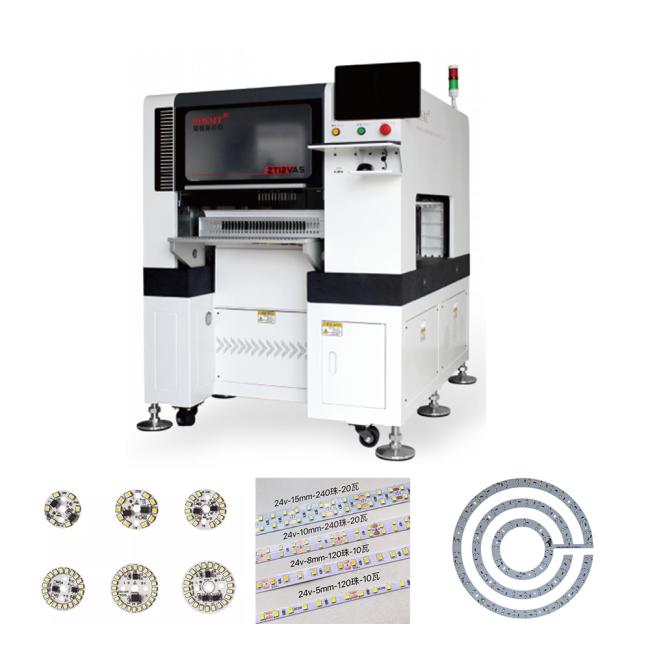

LED Chip Mounter SMD Placer Robot for Electronics SMT PCB Assembly Pick and Place Machine
This High-Speed Pick And Place Machine, engineered for demanding SMT LED assembly, delivers exceptional productivity with a remarkable speed of 70000CPH. Its advanced 12-spindle turret head ensures swift and precise component placement. Each spindle is equipped with an independent vision camera, providing real-time feedback and accurate recognition for flawless placement accuracy and maximum production yield. Designed for high-volume manufacturing, it guarantees reliability, efficiency, and superior performance.
Advanced automated placement system designed for high-efficiency electronics manufacturing production lines.
Key Features
Each group of mounting heads independently controls the rotation angle, resulting in higher mounting efficiency. Each nozzle corresponds independently to a 1 megapixel flying camera for visual correction. Three section fixed track transmission, higher efficiency for mounting small-sized and fewer PCB boards. Suitable for: bulb, projection light, power supply, ceiling light, backlight, etc.
Applications
Ideal for modules, fluorescent tubes, soft light strips, outdoor lights, ceiling lights, flat panel lights, and various electronic assemblies.
Technical Specifications
| Model No | RD-ZT8VAS | RD-ZT10VAS | RD-ZT12VAS |
| Number of mounting heads | 8 heads | 10 heads | 12 heads |
| Feeder Station | 30 stations | 27 stations | 30 stations |
| Optimal placement speed | 50000 chips/h | 60000chips/h | 70000 chips/h |
| Machine weight | Approximately 1400KG | ||
| Heightof Attachable Components | <8mm | ||
| Mavimummounting plate size | 600mm long×500mm wide | ||
| External dimensions | 1350mm long×1350mm wide×1500mmhigh | ||
| Substrate transfer method | One section track automatic transmission | ||
| Machine System | Independentydeveloped operating system | ||
| Positioning method | Visual automatic MARK points | ||
| Correction of suction error byflying swatter | Each nozzle corresponds independently toalmegapivel flying camera for visual coection | ||
| Programming method | Visual camerapositioning programming/Ecel format filecoordinate import | ||
| Input powerfvoltage | AC220V/50HZ (operating power approximatelyZKW/H) | ||
| Mountable components | Beads,resistors,capacitors,ICs,terminals,diodes,etc above 0603 | ||
Advanced Vision System Technology
Independent Camera Motors: Each placement head features its own independent camera motor and lens/zoom component, representing the ultimate configuration for high-end precision electronics manufacturing.
This revolutionary hardware parallelization design resolves the fundamental efficiency vs. precision conflict that cannot be addressed at software level.
Parallel Vision Processing: All 12 placement heads simultaneously capture images and perform component recognition calculations while in motion - no waiting, no queuing.
True On-the-Fly Alignment
Component recognition is 100% synchronized with placement head movement. As the head moves from pick-up to PCB placement position, its built-in camera completes component recognition, positioning, and angle calculation en route. Upon reaching the target point, placement occurs immediately with zero visual waiting time.
Model Variations
8 Placement Head: Independent rotation angle control, 50,000 chips/hour
10 Placement Head: Independent rotation angle control, 60,000 chips/hour
12 Placement Head (Optional): Independent rotation angle control, 70,000 chips/hour
Applications
Fluorescent tubes, soft light strips, flat panel lights, outdoor lights, ceiling lights, bulbs, terminals, and various electronic assemblies.
