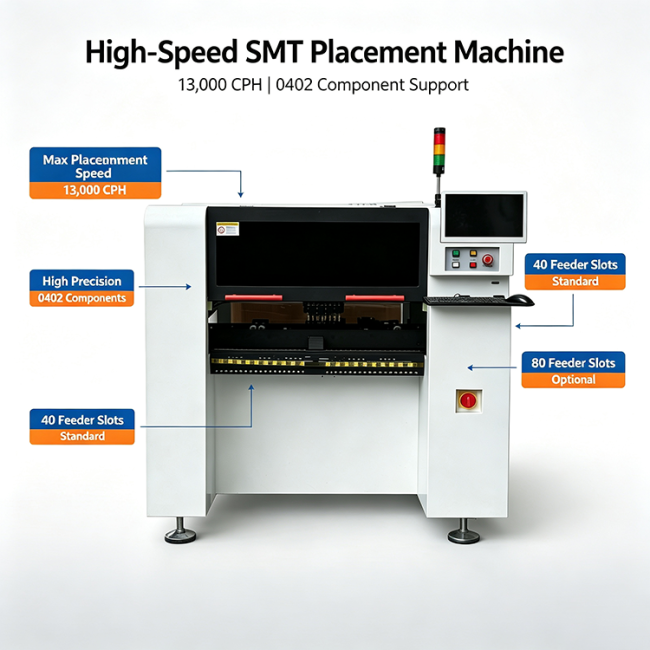

8-Head SMT Pick and Place Machine High Precision PCB Assembly Equipment for Electronic Production
Price:
8500 - 10500 USD
MOQ:
1 pcs
Delivery Time:
20 working days
Brand:
HXT
Product Description
| Product Model | SN60F-4PLUS | SN60F-6PLUS | SN60F-8PLUS |

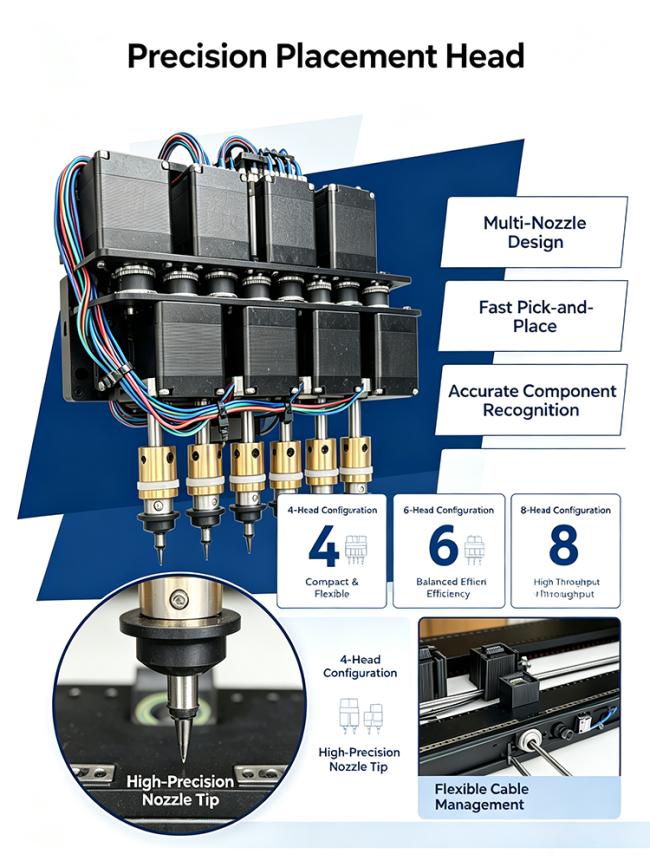

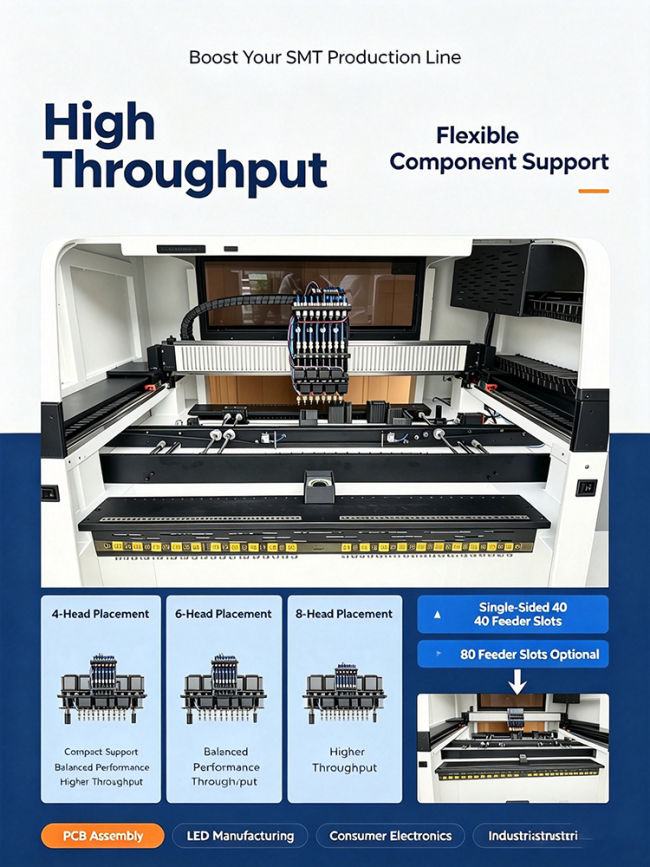

| Number of Placement Heads | 4 heads | 6 heads | 8 heads |
| Recognition Method | Flying vision system | Flying vision system | Flying vision system |
| Chip Recognition | Flying vision system | Flying vision system | Flying vision system |
| Cameras | 2 in total: flying camera + MARK recognition camera | 2 in total: flying camera + MARK recognition camera | 2 in total: flying camera + MARK recognition camera |
| Max. Placement Area | 500*300 mm | 500*300 mm | 600*350 mm |
| Max. Z-axis Travel | 30 mm | 30 mm | 30 mm |
| Theoretical Max. Placement Speed | 10,000 CPH | 12,000 CPH | 15,000 CPH |
| Average Actual Placement Speed | 8,000 CPH | 10,000 CPH | 12,000 CPH |
| PCB Board Conveyance | Fully automatic board loading | Fully automatic board loading | Fully automatic board loading |
| Placement Accuracy | 0.05 mm | 0.05 mm | 0.05 mm |
| Nozzle Buffer Range | 4 mm | 4 mm | 4 mm |
| Motion Drive System | High-precision DSP digital low-voltage drive | High-precision DSP digital low-voltage drive | High-precision DSP digital low-voltage drive |
| Motor System | 220V AC servo, X 400W + Y 400W | 220V AC servo, X 400W + Y 400W | 220V AC servo, X 400W + Y 400W |
| Transmission Mode | Ball screw 1620 | Ball screw 1620 | Ball screw 1620 |
| Power Supply | 220V / 50Hz | 220V / 50Hz | 220V / 50Hz |
| Compressed Air | 0.5-0.6 MPa | 0.5-0.6 MPa | 0.5-0.6 MPa |
| Average Power | 600W | 600W | 600W |
| Feeder Slots | 60 slots, double-sided, universal mixing of electric and pneumatic feeders | 60 slots, double-sided, universal mixing of electric and pneumatic feeders | 80 slots, double-sided, universal mixing of electric and pneumatic feeders |
| Number of IC Trays | 4-10 | 4-10 | 4-10 |
| Component Range | 0201 0402 0603 0805 1206, transistors, SOT, TSOP, SOP, PLCC with 0.5mm pin pitch, CSP, QFP, BGA, etc. | 0201 0402 0603 0805 1206, transistors, SOT, TSOP, SOP, PLCC with 0.5mm pin pitch, CSP, QFP, BGA, etc. | 0402 0603 0805 1206, transistors, SOT, TSOP, SOP, PLCC with 0.5mm pin pitch, CSP, QFP, BGA, etc. |
| Component Rotation | 0-360° | 0-360° | 0-360° |
| Motion Method | Acceleration/deceleration curve control | Acceleration/deceleration curve control | Acceleration/deceleration curve control |
| Operating System | Windows 10 | Windows 10 | Windows 10 |
| PC | 4-core 11th Gen CPU, 4GB DDR4, 60GB SSD, 13-inch LED screen | 4-core 11th Gen CPU, 4GB DDR4, 60GB SSD, 13-inch LED screen | 4-core 11th Gen CPU, 4GB DDR4, 60GB SSD, 13-inch LED screen |
| Host PC Software | 2022 latest software, supports long-term online upgrades | 2022 latest software, supports long-term online upgrades | 2022 latest software, supports long-term online upgrades |
| Product Weight | 400 kg | 400 kg | 400 kg |
| Product Dimensions | 1100*860*1450 (L×W×H) mm | 1100*860*1450 (L×W×H) mm | 1100*860*1450 (L×W×H) mm |
| Warranty | 1 year (spare parts shipped + remote video guidance) | 1 year (spare parts shipped + remote video guidance) | 1 year (spare parts shipped + remote video guidance) |
| Power | 400W | 400W | 400W |
| SMT Pick and Place Machine Automatic PCB Assembly Equipment High Precision Component Placement |
| PCB Pick and Place Machine Automatic Component Placement Equipment for SMT Electronic Assembly |
| Component Placement Machine High Precision SMT Equipment for PCB Assembly Electronic Manufacturing |
| SMT Mounter Automatic PCB Mounting Machine for Electronic Component Placement and Assembly |
| Chip Mounter Automatic SMT Machine for PCB Assembly Electronic Components LED Production |
| PCB Assembly Machine Automatic SMT Production Equipment for Electronic Component Mounting |
| SMT Assembly Machine High Precision PCB Manufacturing Equipment for Automatic Component Placement |
| Automatic SMT Machine High Speed PCB Assembly Equipment for Electronic Component Mounting |
| Automatic SMT Placement Machine High Precision PCB Assembly Equipment for Electronics Manufacturing |
| High Speed Pick and Place Machine Automatic SMT Equipment for PCB Component Assembly Production |
| High Precision Pick and Place Machine Automatic PCB Mounting Equipment for SMT Electronics Assembly |
| 4-Head SMT Pick and Place Machine Automatic PCB Assembly Equipment for Electronic Component Mounting |
| 6-Head SMT Pick and Place Machine Automatic PCB Assembly Equipment for Electronics Manufacturing |
| 8-Head SMT Pick and Place Machine High Precision PCB Assembly Equipment for Electronic Production |
| 4-Head Automatic Pick and Place Machine SMT Placement Equipment for PCB Component Assembly |
| 6-Head Automatic Pick and Place Machine PCB Mounting Equipment for SMT Electronic Manufacturing |
| 8-Head Automatic Pick and Place Machine High Speed SMT Equipment for PCB Assembly Production |
Application:

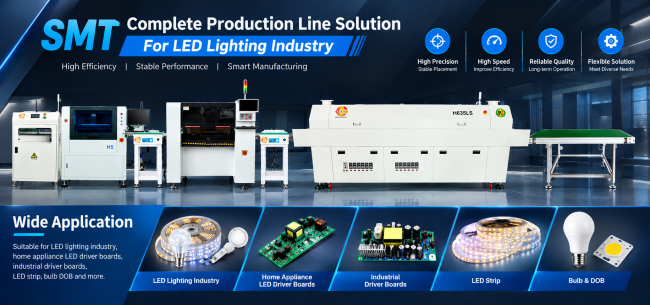

- Linear light sources, LED bulbs, T-bulbs, downlights, small panel lights, ceiling lights, dining room lights, LED driver boards, street lights, cabinet lights, crystal lights, pendant lights.
