1400MHz-1800MHz 6W 38dBm High Power Microwave Amplifier With 3.3-5.5V Operation Voltage
RFint 100% YP163038 1400MHz-1800MHz 6W 6000m 38dBm Black Power Amplifier PA with 3.3-5.5V Operation Voltage

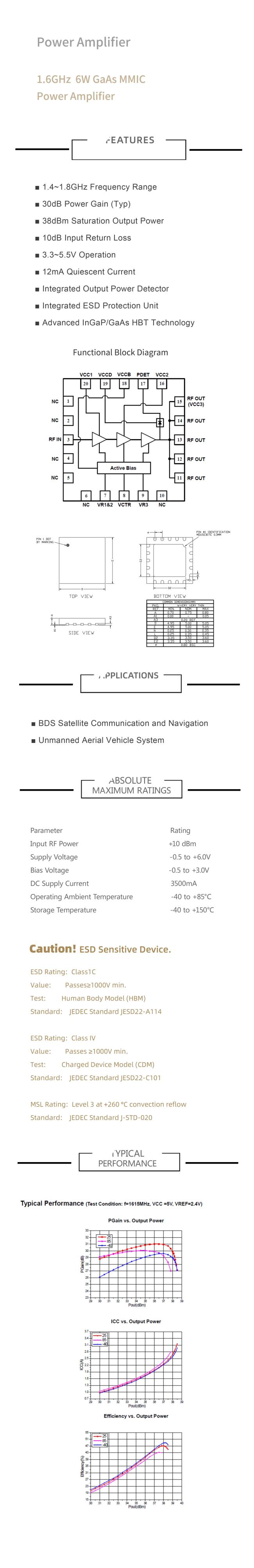

The YP163038 is a high-power, high-efficiency Power Amplifier intend for BDS Satellite Communication and Navigation. The Power Amplifier provides a typical power gain of 30 dB and saturation power of 38dBm with CW input, typical quiescent bias condition is 5.0V at 12mA. The device is manufactured on an advanced InGaP/GaAs Heterojunction Bipolar Transistor (HBT) process. The YP163038 is assembled in a 20-pin, 5mm×5mm, QFN package, it is internally integrated with ESD protection unit
Features
| Frequency Range:1.4-1.8GHz | Power Gain: 30dB |
| Output Power:38dBm | Input Return Loss:10dB |
| Operation Voltage:3.3-5.5V | Current:12mA |
We are based in Jiangsu, China, start from 2010,sell to Western Europe(50.00%),Southern Europe(12.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
1 year warranty for our products.
3.what can you buy from us?
Signal Booster, VCO, Anti Drone Jammer Module, Power Amplifier, Gain Block and so on
