MMIC Intend Portable Signal Power Amplifier For 5G Wireless 3200-3800MHz

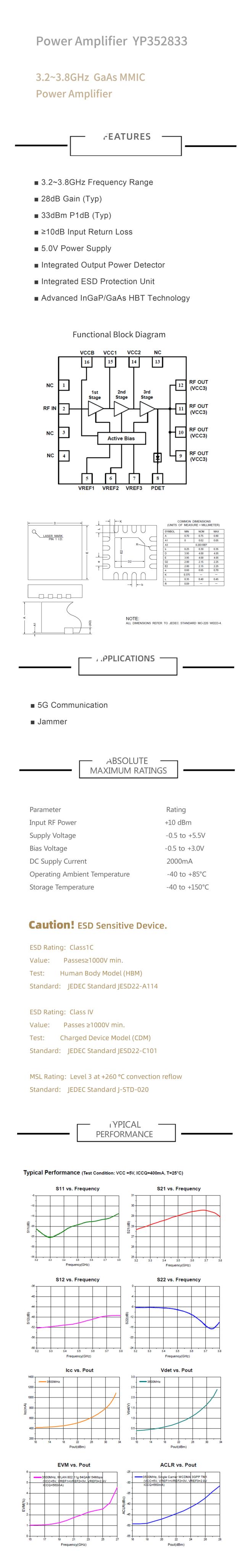

RFint YP352833 High Integrated Power Amplifier MMIC Intend Portable Signal Power Amplifier for 5G Wireless 3200-3800MHz
The YP352833 is a high-integrated power amplifier MMIC intend for 5G wireless communication application. This power amplifier provides a typical gain of 28 dB and P1dB of 33dBm at 3.5GHz, amplifier provides a typical gain of 28 dB and P1dB of 33dbm at 3.5 GHZ, it's typical quiescent bias condition is 5.0V at 400mA. The device is manufactured on an advanced InGaP/GaAs Heterojunction Bipolar Transistor (HBT) process. The YP352833 is assembled in a 16-pin,4mm×4mm, QFN package, it is internally integrated with ESD protection unit.
Features
| Frequency Range | 3.2-3.8GHz |
| Gain (Typ) | 28dB |
| P1dB (Typ) | 33dB |
| Input Return Loss | ≥10dB |
1. Who are we?
We are based in Jiangsu, China, start from 2010,sell to Western Europe(50.00%),Southern Europe(12.00%).
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
1 year warranty for our products.
3.What can you buy from us?
Signal Booster, VCO, Anti Drone Jammer Module, Power Amplifier, Gain Block and so on
