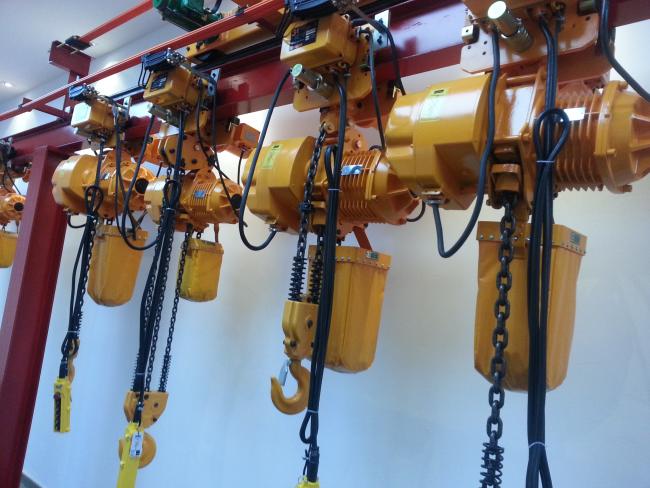

Double Speed Electric Chain Hoist 2ton 5m With Motorized Trolley

Electric Chain Hoist Brief Description

The electric chain hoist is a compact and efficient lifting device designed for precise load handling.

Durable Alloy Chain: High-strength, heat-treated chain for long service life.

Smooth Lifting: Single-speed or dual-speed options for precise control.

Compact Design: Saves space compared to wire rope hoists.

Low Maintenance: No lubrication needed for the chain.

Safe & Reliable: Equipped with overload protection and thermal motor protection.

Versatile Traveling Options: Single-speed or variable frequency drive (VFD) for smooth traversing.

1,Lifting Motor:

Power & Performance

Rated Capacity: 2 tons (compatible with standard 220V/380V or customized voltage).

Duty Class: S3 (15-40%) – Suitable for intermittent operation with frequent starts/stops.

Insulation Class: F-grade (heat-resistant, ensuring long service life).

Speed Control Options

Single-speed: Standard fixed-speed operation (e.g., 6.6 m/min).

Dual-speed: Dual-winding motor for precision lifting (e.g., 2.2/6.6 m/min).

Optional VFD Control: Smooth acceleration/deceleration for sensitive loads.

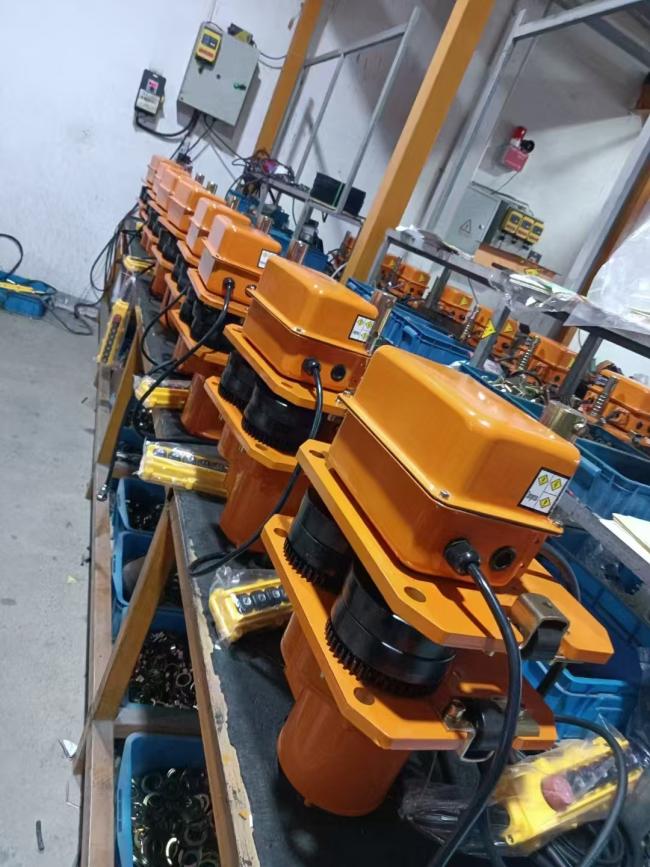

2,Electric Trolley

Endurance-tested bearings for smooth movement.

Adjustable wheel gap to fit different beam widths (e.g., 100–300mm).

Control Options:

Pendant control (standard) or radio remote control (optional).

Limit switches for automatic travel stop at beam ends.

Protection & Durability:

IP54 / IP55 protection against dust and moisture.

Overload protection for motor safety.

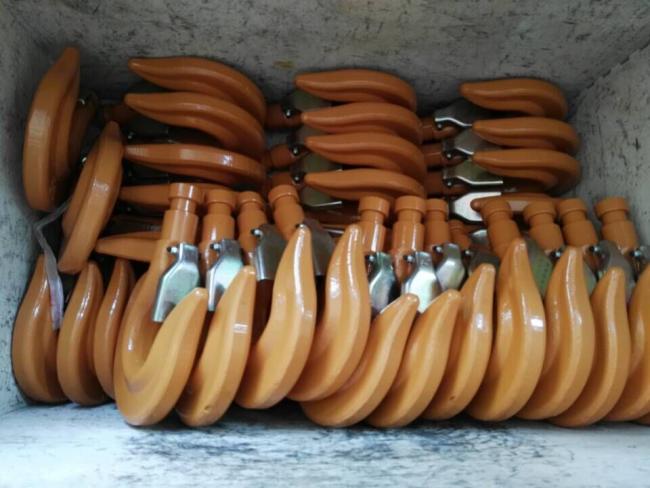

3,Hook

Forged hook, 360 degree rotation
