Double Speed Electric Chain Hoist 7.5ton 3m With Motorized Trolley

Electric Chain Hoist Brief Description

The electric chain hoist is a compact and efficient lifting device designed for precise load handling.

Durable Alloy Chain: High-strength, heat-treated chain for long service life.

Smooth Lifting: Single-speed or dual-speed options for precise control.

Compact Design: Saves space compared to wire rope hoists.

Low Maintenance: No lubrication needed for the chain.

Safe & Reliable: Equipped with overload protection and thermal motor protection.

Versatile Traveling Options: Single-speed or variable frequency drive (VFD) for smooth traversing.

1,Lifting Motor:

Power & Performance

Rated Capacity: 7.5 tons (compatible with standard 220V/380V or customized voltage).

thermally protected induction motor designed for reliable performance in industrial lifting applications.

Duty Class: S3 (15-40%) – Suitable for intermittent operation with frequent starts/stops.

Insulation Class: F-grade (heat-resistant, ensuring long service life).

Speed Control Options

Single-speed: Standard fixed-speed operation (e.g., 1.8 m/min).

Dual-speed: Dual-winding motor for precision lifting (e.g., 1.8/0.6 m/min).

Optional VFD Control: Smooth acceleration/deceleration for sensitive loads.

2,Electric Trolley

Adjustable wheel gap to fit different beam widths (e.g., 100–300mm).

Control Options:

Pendant control (standard) or radio remote control (optional).

Limit switches for automatic travel stop at beam ends.

Protection & Durability:

IP54 / IP55 protection against dust and moisture.

Overload protection for motor safety.

Single-speed / Dual-speed / Variable Frequency Drive (VFD) options for flexible speed control.

Geared motor with thermal protection for reliable long-term operation.

Alloy steel wheels (or optional polyurethane-coated wheels for noise reduction).

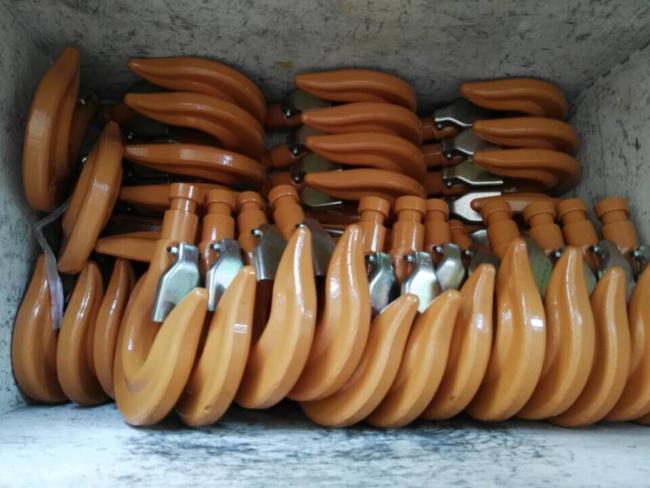

3,Hook

Forged hook, 360 degree rotation
