China XCMG 130T Hydro Crawler Crane Convenient And Fast Choice for sale

XCMG 130T Hydro Crawler Crane Convenient And Fast Choice

Price Negotiable

Price: Negotiable Price

MOQ: One Crane

Delivery Time: According to Order Confirmation

Brand: XCMG

Product Description

XCMG 130T Hydraulic Crane Is A Convenient And Fast Choice

XGC130 Hydraulic crawler crane

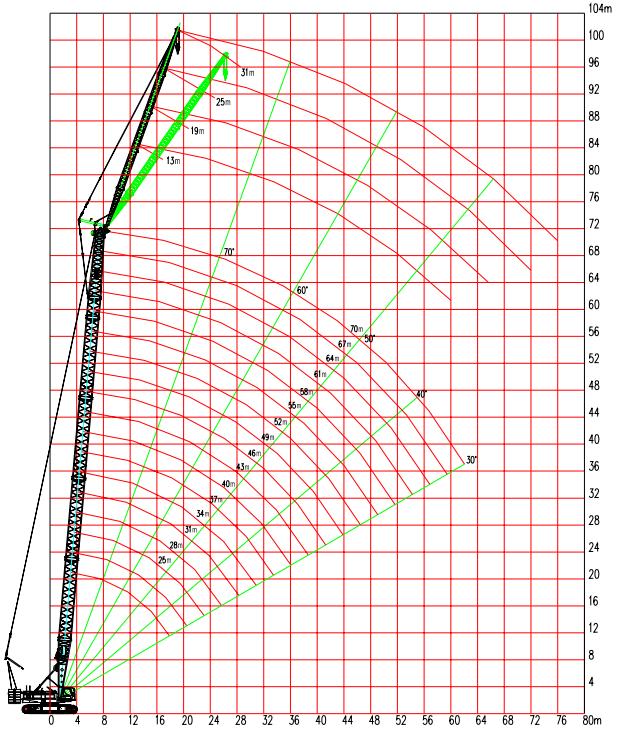

Fixed jib working range diagram

Working range of fixed jib

Fixed jib load table

Load table for fixed jib condition when jib angle is 15°(load unit:t)

Jib angle	15°
Boom(m)	37				40				43				46
Jib(m)	13	19	25	31	13	19	25	31	13	19	25	31	13	19	25	31
Radians(m)
13	20.0
14	20.0				18.0				18.0
16	18.5	15.7			18.0	15.0			18.0				17.0
18	17.0	15.2	11.3		17.0	15.0			17.0	15.2			16.5	15.3
20	16.7	14.7	11.0		16.5	14.5	10.9		16.5	14.8	11.0		16.5	14.9	11.2
22	16.7	14.0	10.5	7.0	16.5	13.9	10.4	7.0	16.5	14.3	10.7	7.1	16.5	14.5	10.9
24	15.9	13.4	9.8	6.8	15.8	13.2	9.7	6.8	15.6	13.2	9.7	6.8	15.4	13.9	10.5	7.0
26	14.2	12.1	9.2	6.5	14.1	11.9	9.1	6.5	13.9	12.6	9.1	6.6	13.7	13.2	9.8	6.6
28	12.8	11.5	8.6	6.2	12.7	11.4	8.5	6.2	12.5	11.9	8.8	6.3	12.5	11.9	9.2	6.3
30	11.7	10.8	8.3	5.8	11.8	10.7	8.3	5.8	12.0	11.1	9.1	6.0	11.3	11.1	8.6	6.2
32	11.5	10.2	8.3	5.7	11.8	10.1	8.2	5.7	11.3	10.4	9.0	5.7	10.2	10.4	8.3	5.8
34	10.4	9.5	8.0	5.4	10.7	9.4	8.0	5.4	10.2	9.5	8.7	5.5	9.9	9.4	8.3	5.7
36	9.7	8.9	7.4	5.2	9.6	8.8	7.3	5.2	9.6	8.7	8.3	5.3	9.4	8.6	8.0	5.4
38	8.8	8.3	7.3	5.1	8.8	8.3	7.3	5.1	8.6	8.1	8.0	5.2	8.6	7.9	7.4	5.2
40	8.3	7.7	7.3	4.9	8.1	7.6	7.3	4.9	8.1	8.1	7.3	5.0	7.9	7.3	7.1	5.1
42	7.5	7.2	6.6	4.8	7.5	6.9	6.6	4.8	7.3	7.6	7.2	4.8	7.2	7.2	6.7	4.9
44	7.0	6.7	6.6	4.6	7.0	6.4	6.6	4.6	6.8	7.0	6.6	4.7	6.6	6.8	6.3	4.8
46		6.2	6.3	4.4		5.9	6.3	4.4	6.2	6.5	6.4	4.6	6.2	6.3	6.2	4.6
48		5.6	5.9	4.3		5.6	5.9	4.3	5.9	5.9	5.9	4.4	5.8	5.9	5.7	4.5
50		5.3	5.5	4.1		5.3	5.5	4.1		5.6	5.5	4.3	5.4	5.5	5.5	4.4
52			5.5	4.1			5.3	4.1		5.3	5.3	4.1		5.1	5.1	4.3
54			5.1	3.9			4.9	3.9		4.9	4.9	4.1		4.7	4.8	4.1
56			4.8	3.9			4.6	3.9			4.6	3.9		4.4	4.4	4.1
58				3.8				3.8			4.2	3.9			4.0	3.9
60				3.5				3.5				3.8			3.7	3.7
62				3.5				3.5				3.5			3.5	3.5
64												3.4				3.2
66																3.0
68																2.9
Counter weight	46	46	46	46	46	46	46	46	46	46	46	46	46	46	46	46

Jib angle	15°
Boom(m)	49				52				55				58
Jib(m)	13	19	25	31	13	19	25	31	13	19	25	31	13	19	25	31
Radians(m)
16	16.5				16.5
18	16.5	15.4			16.5				16.0				15.8
20	16.5	15.0			16.5	15.0			16.0	15.0			15.8	15.0
22	16.5	14.6	10.9		16.4	14.6	10.8		16.0	14.8	11.0		15.8	14.9	11.0
24	15.4	13.9	10.4	7.0	15.1	14.2	10.6	7.0	15.1	14.4	10.7	7.1	14.8	14.5	10.7
26	13.7	13.2	9.7	6.8	13.4	13.5	10.0	6.8	13.4	13.5	10.3	7.0	13.3	13.2	10.3	6.3
28	12.3	12.3	9.1	6.5	12.2	12.2	9.7	6.6	12.0	12.1	9.7	6.6	12.0	11.9	9.7	6.1
30	12.1	11.2	8.5	6.2	11.0	11.1	9.0	6.3	11.8	10.9	9.0	6.4	11.7	10.8	9.4	5.9
32	11.0	10.2	8.3	6.0	11.0	9.9	8.4	6.1	10.8	9.9	8.4	6.2	10.6	9.8	9.0	5.7
34	10.0	9.2	8.3	5.7	9.9	9.1	8.2	5.8	9.5	8.9	8.4	6.0	9.7	8.9	8.4	5.4
36	9.2	8.6	8.0	5.5	9.2	8.4	8.2	5.7	9.0	8.4	8.2	5.7	8.8	8.2	8.1	5.3
38	8.5	8.5	7.7	5.3	8.3	7.7	7.6	5.5	8.3	7.5	7.4	5.5	8.1	7.4	7.4	5.1
40	7.7	7.9	7.2	5.2	7.7	7.0	7.0	5.3	7.5	7.0	6.8	5.3	7.3	6.9	6.8	5.0
42	7.2	7.2	6.5	5.1	7.0	6.5	6.5	5.2	7.0	6.4	6.3	5.2	6.8	6.2	6.2	4.8
44	6.6	6.6	6.2	4.9	6.4	6.0	6.0	5.0	6.4	5.9	5.8	5.1	6.2	6.1	5.7	4.7
46	6.0	6.1	6.1	4.8	5.9	6.1	5.5	4.9	5.9	5.4	5.4	4.9	5.8	5.7	5.2	4.6
48	5.6	5.7	5.7	4.6	5.6	5.6	5.0	4.8	5.4	5.1	5.0	4.8	5.2	5.2	5.0	4.5
50	5.2	5.3	5.3	4.4	5.2	5.2	5.0	4.6	5.0	5.1	4.6	4.6	4.8	4.8	4.8	4.3
52	4.8	4.9	4.9	4.4	4.7	4.6	4.6	4.4	4.7	4.7	4.6	4.6	4.5	4.5	4.5	4.1
54		4.6	4.6	4.3	4.3	4.2	4.2	4.2	4.3	4.4	4.4	4.4	4.1	4.1	4.1	3.8
56		4.2	4.2	4.1	4.1	4.0	4.0	4.0	3.9	4.0	4.0	4.0	3.7	3.7	3.5	3.5
58		4.0	3.9	3.9		3.8	3.6	3.6	3.5	3.8	3.7	3.7	3.3	3.3	3.3	3.2
60			3.7	3.7		3.6	3.5	3.5		3.5	3.5	3.4	3.2	3.2	3.2	3.2
62			3.3	3.4			3.3	3.3		3.1	3.1	3.1		3.1	3.0	2.9
64			3.2	3.2			3.0	3.0		2.9	2.9	2.9		2.6	2.6	2.6
66				2.9			2.8	2.6			2.6	2.6		2.5	2.5	2.5
68				2.7				2.5			2.5	2.5			2.3	2.2
70				2.5				2.4			2.3	2.3			2.1	2.1
72								2.2				2.0			1.9	1.9
74												1.8				1.7
Counter weight	46	46	46	46	46	46	46	46	46	46	46	46	46	46	46	46

Jib angle	15°
Boom(m)	61				64
Jib(m)	13	19	25	31	13	19	25	31
Radians(m)
18	15.5				15.6
20	15.5	15.4			15.4
22	15.0	15.0			15.1	13.6
24	14.6	14.5	10.8		14.5	13.4	10.9
26	13.1	13.0	10.6	7.0	12.9	12.8	10.7	6.3
28	11.8	11.7	10.3	6.8	11.7	11.6	10.3	6.3
30	11.7	10.6	9.7	6.6	10.5	10.4	9.7	6.0
32	10.4	9.6	9.0	6.3	9.5	9.4	9.0	5.9
34	9.6	8.8	8.4	6.2	8.7	8.6	8.5	5.7
36	8.6	8.0	7.9	6.0	7.9	8.0	7.8	5.4
38	7.9	7.8	7.3	5.7	7.2	7.2	7.1	5.3
40	7.2	7.2	6.6	5.6	6.5	6.5	6.5	5.1
42	6.6	6.5	6.0	5.3	5.8	6.3	6.0	5.0
44	6.0	6.1	5.5	5.2	5.3	6.1	5.5	4.8
46	5.6	5.7	5.0	5.2	5.1	5.6	4.9	4.7
48	5.0	5.3	5.3	5.0	4.6	5.3	4.6	4.4
50	4.6	4.5	4.7	4.7	4.2	4.5	4.3	4.1
52	5.2	4.4	4.4	4.2	3.9	4.1	3.8	4.0
54	3.9	4.0	4.0	3.9	3.4	3.8	3.3	3.9
56	3.5	3.8	3.7	3.5	3.3	3.4	3.3	3.4
58	3.2	3.5	3.3	3.2	3.0	3.1	3.0	3.0
60	3.0	3.1	3.0	2.9	2.8	2.9	2.8	2.7
62	2.6	2.7	2.6	2.7	2.4	2.6	2.6	2.5
64		2.5	2.5	2.5	2.3	2.4	2.3	2.4
66		2.4	2.3	2.2	2.0	2.2	2.1	2.2
68		2.2	2.1	2.1		2.0	2.0	1.9
70			1.9	1.9		1.9	1.8	1.7
72			1.8	1.7		1.7	1.7	1.6
74			1.7	1.6			1.5	1.5
Counter weight	46	46	46	46	46	46	46	46
