Used XGC Xcmg 300 Ton Crawler Crane Heavy Equipment
300t Crawler Crane In Good Working Condition, With A Jib Single Pulley, Main Arm Pulley Block, And High Durability.
XGC 300t(-I)Crawler Crane Technical Specifications
Crawler crane models: XGC 300t(-I)
Max rated lifting capacity: 300t
Maximum lifting moment: 1865t.m
Fixed jib working condition_ Single pulley hook characteristics without main arm pulley block and jib single pulley (HFS/2)

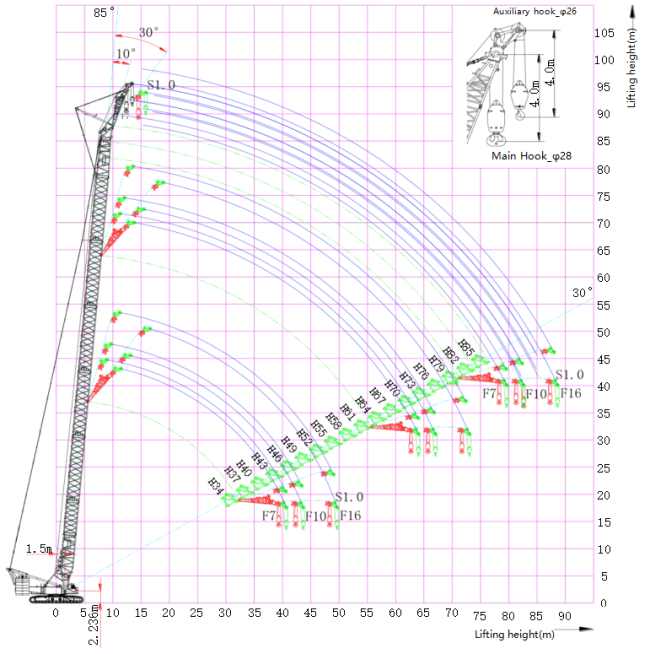

Working range of single pulley hook with single pulley of jib (HFS/2) without main arm pulley block
Working range of single pulley hook with single pulley of jib (HFS/2) without main arm pulley block
Fixed jib working condition_No main arm pulley block with jib single pulley (HFS16/2_10 °_115t+40t) single pulley hook performance
|
Fixed jib |
16m |
||||||||
|
HFS16/1 |
Main boom length(m) |
||||||||
|
Radians |
34 |
40 |
46 |
52 |
58 |
64 |
70 |
76 |
*82 |
|
(m) |
t |
t |
t |
t |
t |
t |
t |
t |
t |
|
12 |
28.0 |
28.0 |
|
|
|
|
|
|
|
|
13 |
28.0 |
28.0 |
28.0 |
28.0 |
|
|
|
|
|
|
14 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
|
|
|
|
16 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
|
|
18 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
|
20 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
|
22 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
|
24 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
|
26 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
|
28 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
|
30 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
|
32 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
|
34 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
28.0 |
27.6 |
27.0 |
|
36 |
28.0 |
27.6 |
27.1 |
26.6 |
26.2 |
25.7 |
25.3 |
24.8 |
24.4 |
|
38 |
25.6 |
25.1 |
24.7 |
24.2 |
23.7 |
23.2 |
22.9 |
22.4 |
21.8 |
|
40 |
23.4 |
23.0 |
22.6 |
22.0 |
21.5 |
21.0 |
20.6 |
20.1 |
19.5 |
|
42 |
21.4 |
20.9 |
20.5 |
20.0 |
19.4 |
18.9 |
18.6 |
18.0 |
17.6 |
|
44 |
19.5 |
19.1 |
18.7 |
18.2 |
17.7 |
17.2 |
16.8 |
16.3 |
15.8 |
|
46 |
17.9 |
17.5 |
17.1 |
16.6 |
16.1 |
15.6 |
15.2 |
14.7 |
14.2 |
|
48 |
|
16.0 |
15.6 |
15.1 |
14.6 |
14.1 |
13.7 |
13.2 |
12.7 |
|
52 |
|
13.4 |
13.1 |
12.6 |
12.1 |
11.5 |
11.1 |
10.5 |
10.0 |
|
56 |
|
|
10.7 |
10.2 |
9.7 |
9.2 |
8.8 |
8.3 |
7.8 |
|
60 |
|
|
|
8.3 |
7.8 |
7.3 |
6.9 |
6.4 |
5.9 |
|
64 |
|
|
|
|
6.2 |
5.7 |
5.3 |
4.8 |
4.3 |
|
68 |
|
|
|
|
4.7 |
4.2 |
3.9 |
3.4 |
|
Notes:
1. “*”--Indicates that the main boom combination needs to use a 1.31m waist rope.
2. The tower arm rear pull plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the main boom reducer section.
3. When raising the boom, please place the crawler drive wheel behind the vehicle body. If the main boom length exceeds 73m, use an auxiliary crane or inclined wedge to assist in raising the boom.
