T8 glass tube glue dispensing machine, automatic glue dispenser for T8 glass tube, 400pcs/h capacity

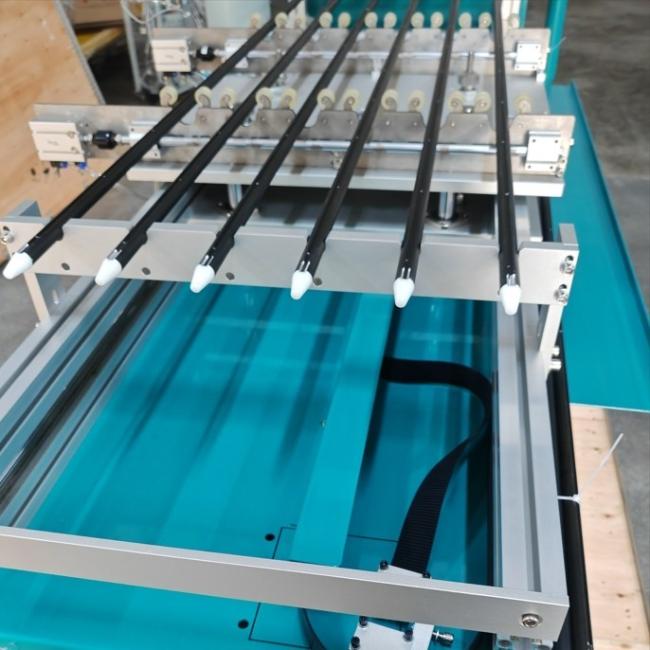

GDS basic glue dispensing machine for T8 glass tube working theory is as following. Put six PCB strips downside on the fixture sticks. Six PCB strips on the fixture sticks are being glued while being inserted to the glass tube. The tubes press down for few seconds and stick with PCBs. The whole process is finished when the sticks are pulled out and tubes are transferred to the next work station. That's how T8 glass tube glue dispensing machine works. GDS automatic glue dispenser can perfectly replace manual operation to get glass tube and PCB strip sticked together tightly.


Machine Features

• Specially designed for T8/T5 glass tube, glue valves are working at the same time, the designed capacity is 400 pcs/h;
• Standard model is suitable for tubes in length of 600mm,900mm,1200mm(bigger size needs customization);

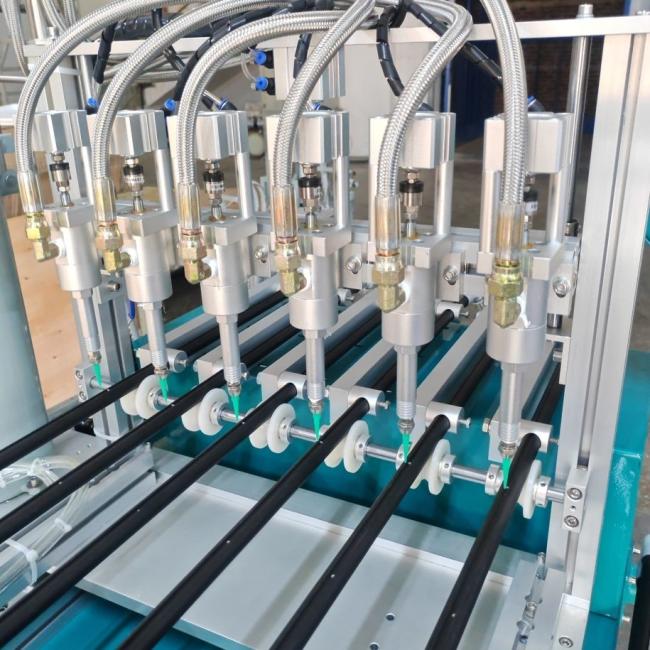

• Equipped independent dispensing valve for each of six glue tracks. Glue dispensing volume is accurate and fast without glue drawing, drops or leakage;
• Operation steps include: paving strips/placing tubes, glue dispensing/tubes coating, pressurization, separation, tubes picking and upside down placing;
• Pressurizing time can be set on the touch screen of controller according to glue nature


Technical Parameters



Machine Details
