ED-Type Silicon Carbide (SiC) Heating Elements 1450°C Rated for Industrial Stove & Furnace Use with Customized Sizes
Price:
200-500 yuan/kg
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
KEGU
Product Description
ED-Type Silicon Carbide (SiC) Heating Elements
High-performance non-metallic electric heating components rated for 1450°C operation in industrial stoves and furnaces.
Product Overview
ED-Type (Equal Diameter) Silicon Carbide Heating Elements are engineered for extreme temperature environments. Manufactured from high-purity green silicon carbide and sintered at 2400°C, they deliver exceptional thermal stability and mechanical strength. Designed for continuous operation from 600°C to 1450°C, these elements are perfect for electric stoves, kilns, and industrial heating systems across glass manufacturing, chemical processing, and electronic materials synthesis.
Key Features
- High-temperature resistance up to 1450°C
- Low thermal expansion for minimal deformation
- Excellent chemical and oxidation resistance
- Long service life with easy installation & maintenance
- Custom diameters, lengths, and shapes available
Technical Data & Sizing Examples
Standard ED-Type SiC heating element configurations. All specifications can be customized to meet your requirements.
| Diameter (mm) | Hot Zone (mm) | Cold End (mm) | Total Length (mm) | Surface Area (cm²) | Voltage (V) | Power (W) | Resistance (Ω) |
|---|---|---|---|---|---|---|---|
| 12 | 150 | 200 | 450 | 56 | 41 | 896 | 1.85 |
| 14 | 200 | 200 | 600 | 88 | 41 | 1408 | 1.22 |
| 16 | 300 | 250 | 800 | 150 | 62 | 2400 | 1.75 |
| 20 | 300 | 400 | 1100 | 188 | 59 | 3008 | 1.45 |
Surface Load Recommendations
For optimal performance and extended service life, follow these maximum surface load values relative to operating temperature:
| Furnace Temperature (°C) | 1100 | 1200 | 1300 | 1350 | 1400 | 1500 |
|---|---|---|---|---|---|---|
| Max. Surface Load (W/cm²) | 17 | 13 | 9 | 7 | 5 | 4 |
Customization & Ordering
We support comprehensive customization options including:
- Diameter (8mm - 60mm)
- Length (300mm - 450mm+)
- Shape (Equal Diameter, U-Shaped, Groove-Type, and more)
Contact us today with your specifications for a tailored solution.

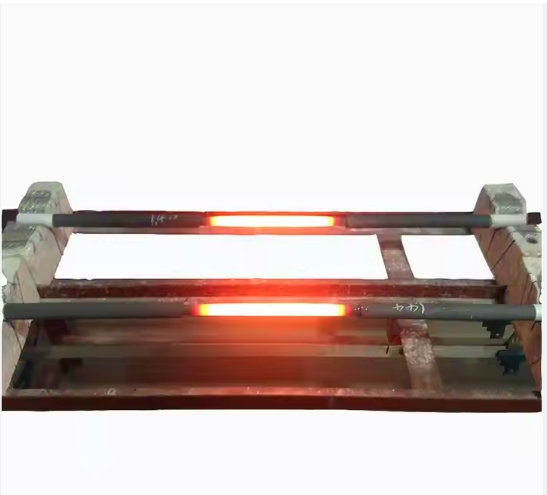

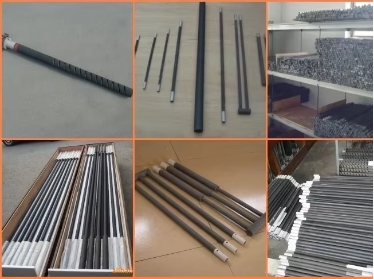

Product Images

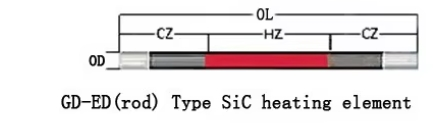

Dimension Specifications
- Outer Diameter: OD, (mm)
- Hot Zone Length: HZ, (mm)
- Code Zone Length: CZ, (mm)
- Overall Length: OL, (mm)
- Shank Spacing: A, (mm)
- Bridge: D, (mm)
Applications
Our silicon carbide heating elements are engineered for extreme-temperature environments and are ideal for a wide range of industrial and research applications:
- High-Temperature Laboratory & Industrial Furnaces: Ensuring precise and stable heating for R&D and quality control
- Advanced Ceramics & Powder Metallurgy: Providing consistent high heat for sintering, debinding, and processing
- Magnetic Material Production: Delivering reliable performance in heat treatment of permanent magnets and ferrites
Packaging & Shipping
We ensure your products arrive safely and reliably, anywhere in the world.
Packaging
To guarantee safe transit, each heating element is meticulously packaged:
- Inner Protection: Individually wrapped with protective plastic film to prevent moisture and corrosion
- Robust Outer Case: Securely housed in custom, fumigated wooden crates designed to withstand long-distance international shipping
Delivery & Shipping Options
We offer flexible global shipping solutions tailored to the size and weight of your order. Please note that the prices listed on our website are EXW (Ex-Works). We highly recommend contacting us for a precise shipping quote before ordering.
Contact us today for a detailed shipping estimate and delivery time to your destination.

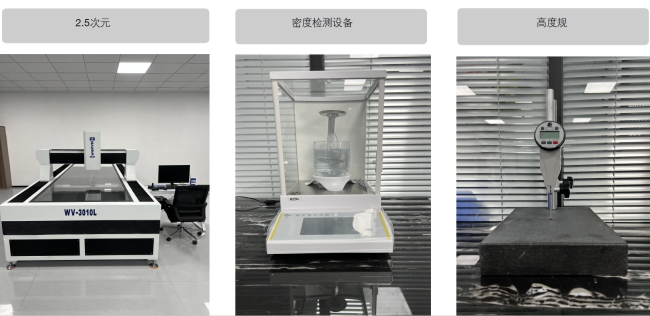

Quality Control
