High Temperature Resistant (1500℃) Customized Size Corrosion Resistant Silicon Carbide Heating Elements Sic Heater for Industrial Furnace
Price:
200-500 yuan/kg
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
KEGU
Product Description

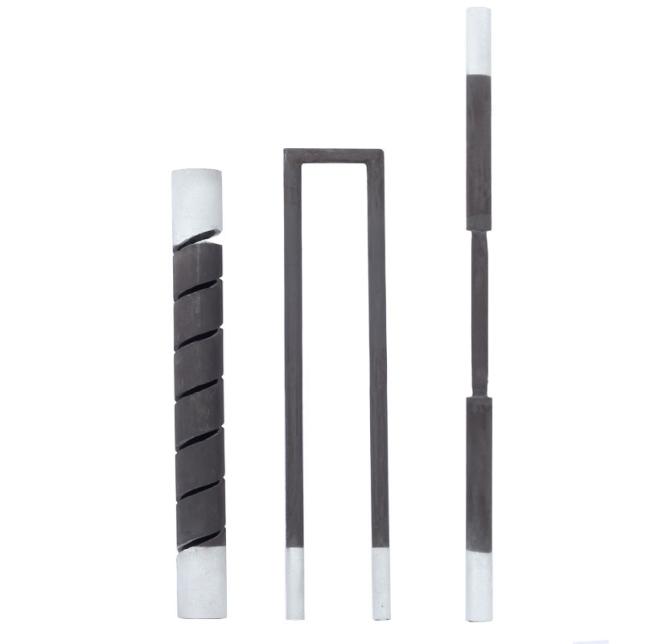

Silicon Carbide Heating Elements for Industrial Furnaces
Silicon carbide heating elements are non-metallic high-temperature heating components manufactured from high-quality green silicon carbide. These elements are formed into blanks, siliconized at high temperatures, and recrystallized to create the most popular economical heating solution for demanding industrial applications.
Key Applications
- High temperature industrial furnaces
- Dental furnace heating systems
- Refractory material processing
- Harsh and demanding thermal environments
Technical Specifications
| Outer Diameter (OD, mm) | Hot Zone (HZ, mm) | Cold Zone (CZ, mm) | Overall Length (OL, mm) | Resistance Range (ohms) |
|---|---|---|---|---|
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
Note: The specifications above represent a selection of our standard products. We can manufacture custom elements according to your specific requirements.
Product Details

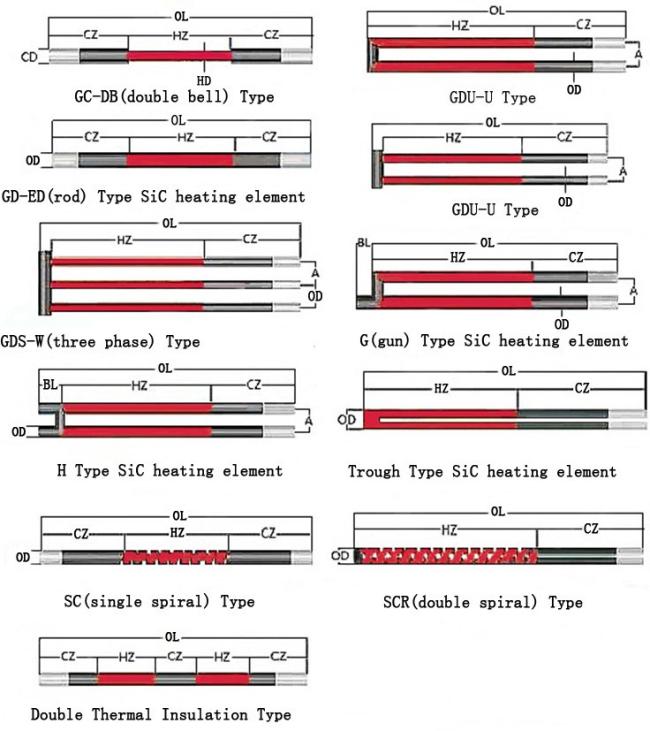

Available Types
Key Dimensions: Outer Diameter (OD, mm), Hot Zone Length (HZ, mm), Cold Zone Length (CZ, mm), Overall Length (OL, mm), Shank Spacing (A, mm), Bridge (D, mm)
Our Services
Timely Response
Quick response to inquiries with multiple solution recommendations based on your specific requirements. Prompt email responses and comprehensive solutions.
Professional Services
Expert high-temperature solutions and professional construction services based on extensive industry experience. Complete documentation including detailed order updates, delivery photos, export documentation, certificates, and comprehensive after-sales support.
Strict Quality Control
Precision production scheduling with rigorous quality assurance protocols.
Shorter Delivery Time
Priority booking of earliest available shipping to guarantee timely delivery.
Frequently Asked Questions
Do you accept customization?
Yes, we operate our own factory with an excellent technical team and accept OEM services.
Do you offer samples?
Yes, we can provide samples from our available inventory.
How do you handle quality problems?
If products do not conform to customer samples or have quality issues, our company will provide appropriate compensation.
What are your payment terms?
Standard payment terms: T/T with 30%-50% deposit after order confirmation, balance payment before shipping. We also accept L/C, Western Union for smaller amounts, and PayPal.
