400L/S High Volume BSF120B Oil Mist Filter Rotary Vacuum Pump Oil Mist Eliminator Filter
Price:
$25-＄580
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
KACO
Product Description
400L/s BSF120B oil mist filter, oil mist trap specially for oil rotary vacuum pump
Description:
When the oil rotary vacuum pump is operated at atmospheric pressure or under low vacuum, the oil is discharged together with the pumped gas.
This kind of exhaust gas is composed of many tiny oil droplets and is exhausted in the form of smoke through the pump outlet.
The oil mist filter is used to ensure a clean environment to protect the equipment from oil mist pollution.
Application :
Used with an oil rotary vacuum pump or a vacuum system.
Parameter:
| Model | BSF120 |
| Filter Specification | 120L |
| Maximum Processing Flow m³/h(L/s) | 1600(4*100) |
| Inlet | VF50 |
| Outlet | φ50 |

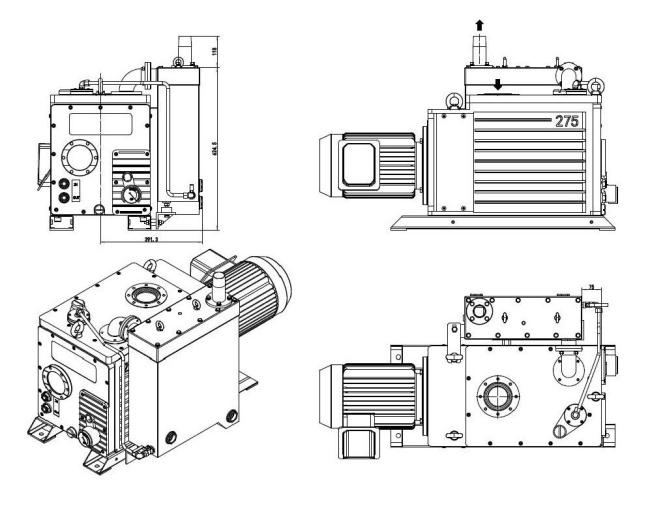

| Pump | DRV175/DRV275 |
| Weight(kg) | 30 |

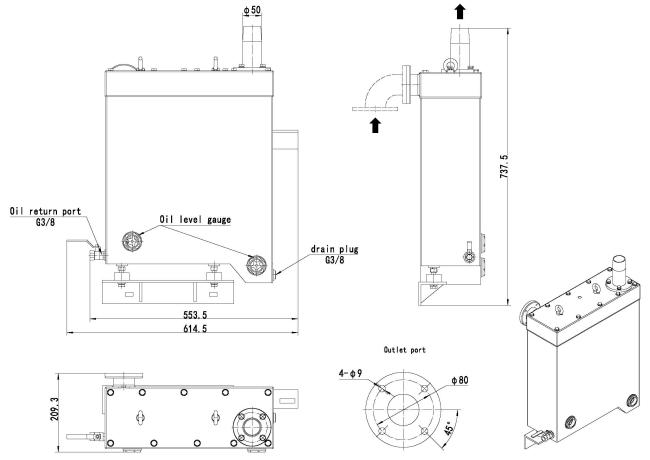

Outline Drawing:
Warranty
(1) The warranty period for this product is one full year from the date of B/L.
(2) During the warranty period, if the fault occurs under normal use conditions, the company is. responsible for free repair. Normal use conditions refer to the following conditions:
a. The ambient temperature of the oil mist filter is 10～40℃.
b. The type of exhaust gas and its temperature: dry air or dry nitrogen (0～40℃).
c. Use according to the instruction manual.
(3)During the warranty period, the following conditions will be repaired at a charge:
a. Failures that occur due to natural factors (earthquakes, typhoons, fires, etc.) or man-made.
b. Malfunctions that occur when used in a special environment, such as pollution.
c. Failures that occur when the product is used under the operating conditions described in the instruction manual (specification parameters, maintenance requirements, etc.).
d. Malfunctions that are judged by our company's technicians to be unsuitable for use conditions.
