Rotary vane low-pressure compressor,80m³/h, oil-free, air-cooled,KDE80
Rotary vane low-pressure compressor,80m³/h, oil-free, air-cooled,KDE80
Description
Our DE and KDE series are the counterparts to VE/KVE models,dry-running compression pumps.
The range here starts with an air displacement capability of 10 m³/h for our smallest compressors and reaches up to 140m³/h.
Our Eurovac dry-running rotary vane compressors are robust, durable, and ideal for medium-pressure applications. They are designed for longevity and low maintenance.
Technical Data
| TYPE | AIR FLOW(m³/h) | MOTOR POWER(kW) | MOTOR VOLTAGE (V) | Motor Speed(rpm) |
Pressure (mbar) |
Noise (dB) |
Weight (kgs) | |||
| 50HZ | 60HZ | 50HZ | 60HZ | 50HZ/60HZ | 50HZ | 60HZ | ||||
| KDE60 | 60 | 72 | 3 | 3.6 | 230/400V±10% | 1450 | 1740 | +1500 | 72 | 69 |
| KDE80 | 80 | 96 | 4 | 4.8 | 230/400V±10% | 1450 | 1740 | +1500 | 74 | 77 |
| KDE100 | 100 | 120 | 5.5 | 6.6 | 230/400V±10% | 1450 | 1740 | +1500 | 76 | 127 |
| KDE140 | 140 | 168 | 7.5 | 9 | 230/400V±10% | 1450 | 1740 | +1500 | 82 | 146 |

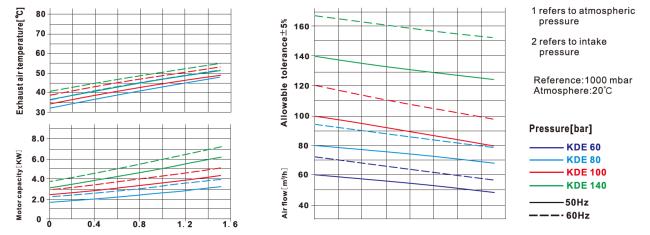

Performance Curve

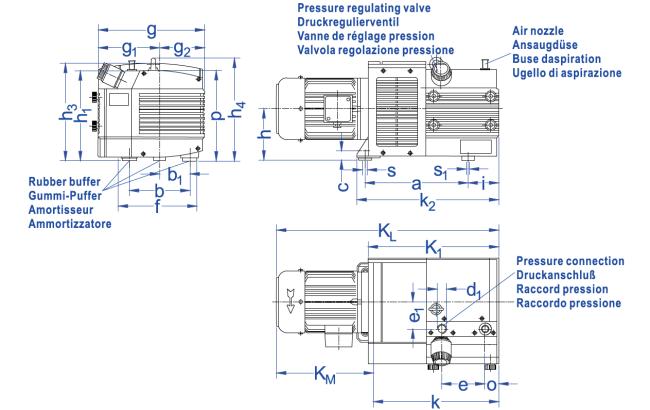

Dimensions
Feedback from clients
https://youtu.be/3ecsqle7bs4
Highlights of DE/KDE series:
- Low operation and maintenance costs
- Cool operation
- Quiet operation-no silence enclosures necessary
- No cycling times
- Straightforward construction for fast and easy service on-site to reduce downtime
Applications
