10mm Micro Geared Stepper Motor 3V 200 MA Frequency 660 Pps Min Drive

Price Negotiable

Price: 1~10 USD/PC

MOQ: 10000PCS

Delivery Time: 35DAYS

Brand: XM-Motor

Product Description

Micro Metal Gearmotor 10 Mm Geared Stepper Motor Model SM10-100G-18M5 Resistance 18 Ω±7% Voltage 3V Current Per Phase 200 MA Frequency 660 Pps Min Drive Method 2-2 Phase Gear Ratio 1:100

Product Details

Type	Gear Motor	Torque	High Torque
Construction	Permanent Magnet	Continuous Current(a)	Customized
Certification	ROHS	Voltage(v)	3V
Highlight	miniature dc gear motor , micro electric motor

Product Description

micro metal gearmotor dc gear motor with gear box precision geared stepper motor

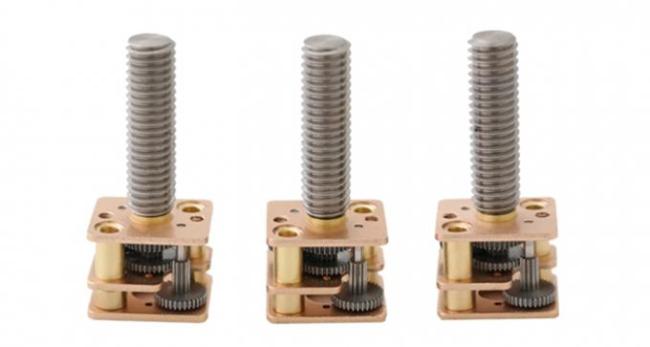

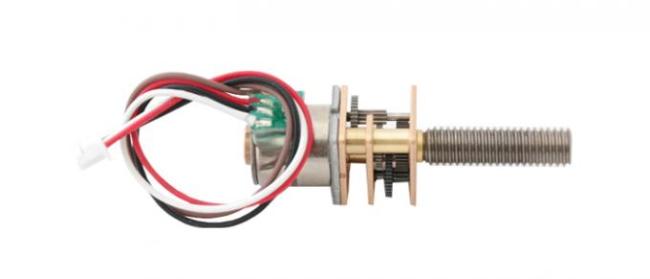

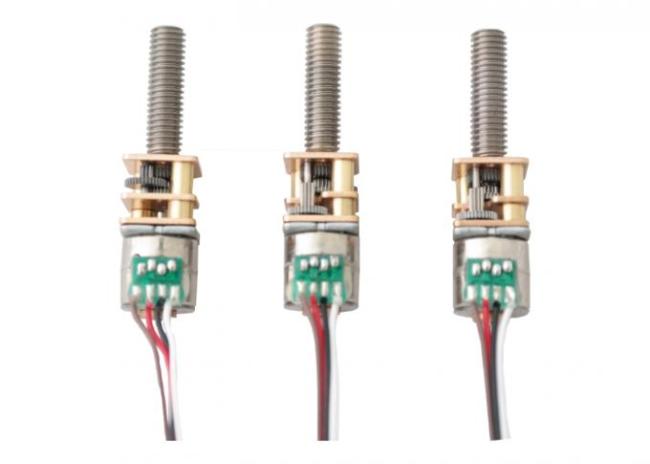

SM10-100G-18M5 geared stepepr motor is made up of 10mm micro stepper motor and the size of 10*12mm metal gear box.The diameter of the motor is 10mm,and the motor resistance is 18 Ω per phase.The step angle is 18° , 20 steps per revolution.The type of Wire Connect is lead wire,there are 4 wires(Red,White,Black and Brown)For motor lead wire housing,Red and White is Phase A,Black and Brown is Phase B.The voltage range of SM10-100G-18M5 micro geared stepper motor is from 3V to 5V ,and the resistance can be customize as your requirments.

For the size of metal gearbox,it is 10mm*12mm,and the metarial is brass.In this 10mm stepper motor,the gear ratio is 1:100,when use 2-2 phase driving method under 660 pps,the rated torque is more than 25 mN.m at 20 rpm.

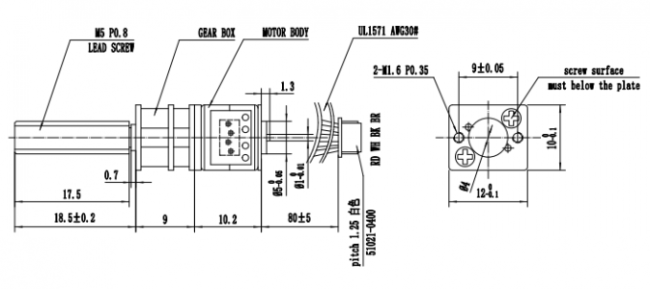

Mechanical Dimension:MM

Typical Applications

Saliva Analyzer
Blood Analyzer
Welding Machine
Intelligent Security Products
Fiber Fusion Splicer
Digital Electronics

Specifications

Product Name	10 mm geared stepper motor
Model	SM10-100G-18M5
Resistance	18 Ω±7%
Voltage	3 V
Current Per Phase	200 mA
Frequency	660 pps min
Drive Method	2-2 Phase
Gear Ratio	1:100
OEM & ODM SERVICE	AVAILABLE

Testing :3V	10mm 18Ω		10mm+100G 1		10mm+100G 2		10mm+100G 3
Frequency	Current	/Phase	Current	/Phase	Current	/Phase	Current	/Phase
200	0.271	0.141	0.276	0.136	0.297	0.146	0.282	0.138
300	0.273	0.135	0.266	0.129	0.278	0.139	0.269	0.13
400	0.251	0.122	0.243	0.122	0.256	0.127	0.246	0.121
500	0.231	0.117	0.228	0.109	0.237	0.114	0.229	0.115
600	0.211	0.106	0.209	0.102	0.216	0.106	0.209	0.103
660	0.198	0.098	0.197	0.097	0.204	0.099	0.197	0.097
700	0.188	0.093	0.189	0.093	0.195	0.094	0.189	0.092
800	0.169	0.084	0.169	0.082	0.174	0.086	0.169	0.084
900	0.15	0.073	0.15	0.074	0.154	0.075	0.149	0.075
1000	0.131	0.065	0.131	0.064	0.135	0.066	0.13	0.065
1100	0	0	0.113	0.055	0.116	0.056	0.112	0.056
1200	0	0	0	0	0.1	0.048	0.096	0.048
