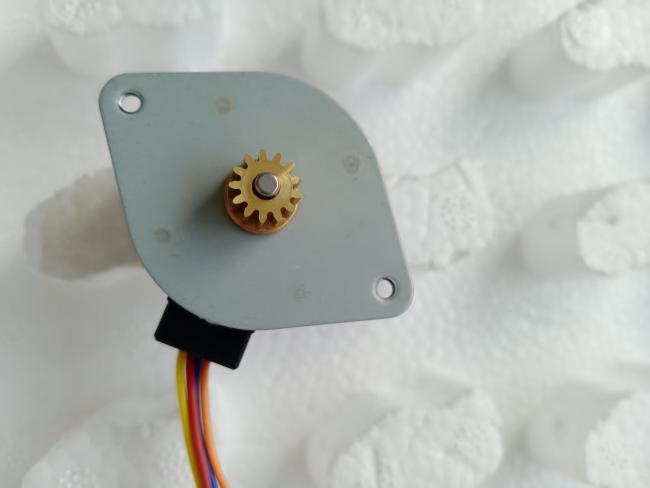

35BY48L Permanent Magnet Stepper Motor with 48 Steps per Rotation 350gf.cm Pulling Torque and 550gf.cm Holding Torque
35BY48L High Quality Stepper Motor 12V 5V 24V
Description:
Specifications:
- Low-cost small-size stepper motor
- Easy mounting (Come with Mounting Bracket)
- unipolar stepper motor
- Step angle: 7.5º per step
- Steps per rotation: 48
- Pulling Torque, at 12V 200pps (pulses per second): ~350gf.cm
- Holding Torque, at 12V: ~550gf.cm
- Voltage being applied and test: 6V to 12V, rated at 12VDC
- Motor dimensions (w x l x h) : 42.0mm x 40.0mm and 30.5mm
- 6 lead wires
- Suitable for student automation project
Key Advantages: Simple structure, cost-effectiveness, good dynamic performance, and maintenance-free operation.
Application Fields
It is widely used in equipment requiring precise motion control, including but not limited to:
Office Automation: Printers, scanners, and copiers (for paper feeding and precision positioning).
Industrial Equipment: Flow control valves, small conveyors, and automated testing instruments.
Home Appliances: Sewing machines, smart air conditioners, and small kitchen appliances.
Consumer Electronics: Smart door locks and small robotic toys.
Motor Voltage, Resistance, Torque etc Can be customized according to your requirements.
