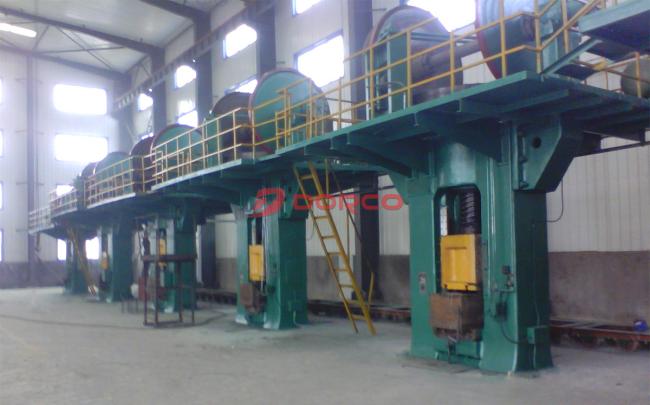

Double Disk Friction Screw Press 6300kN 55kw Forging Machine
Price:
60000-480000 USD Per Set
MOQ:
1 Set
Delivery Time:
45 - 75 Working Days
Brand:
Duolek
Product Description
Versatility Double Disc Friction Screw Press
Easy To Operate, Sensitive And Reliable
This versatile pressure processing machine is widely used across multiple industries for forging applications. In mechanical manufacturing, it efficiently performs tasks including forging, upsetting, bending, calibration, precision pressing, and stamping operations.
With its high versatility, simple structure, easy installation, low operational requirements, and cost-effectiveness, this press is extensively utilized in forging and die forging workshops across mechanical manufacturing, automotive, tractor, and aviation industries.
Key Features
- Combined mechanical, electrical, and pneumatic control system ensures sensitive operation and reliable performance with pre-selectable strike energy
- Translational brake device fixed on the platform provides large braking torque, sensitive and reliable braking at any stroke position
- Integral frame and pull rod structure delivers exceptional frame strength
- Two-cylinder direct push control system replaces fork operation for improved responsiveness
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal force | 6300kN | Die height | 470mm |
| Sports energy | 80kJ | Thickness of workbench pad | 180mm |
| Slide stroke | 600mm | Motor power | 55kw |
| Minimum sealing height | 650mm | Top material method | Pneumatic top material |
| Stroke times | 11min-1 | Maximum top material force | 100kN |
| Bottom size of slider (L/R) | 700mm | Workbench dimensions (L/R) | 820mm |
| Bottom size of slider (F/B) | 760mm | Workbench dimensions (F/B) | 920mm |
| Dimensions (L * W * H) | 4910 * 38005 * 6060mm | Maximum stroke | 100mm |
| Total weight | ≈42000kg |
