NF P92-505 EU95/28EC Melting Material Dripping Testing Machine

Price Negotiable

Price: USD3700-4000/set

MOQ: 1 set

Delivery Time: 30 days

Brand: GOLD

Product Description

NF P92-505 EU95/28EC Melting Material Dripping Testing Machine

This thermal radiation molten drip tester meets the technical specifications and requirements specified in international standards NF P92-505, EU 95/28/EC, and ECE R118 Annex 7. According to NF P 92-505, this test is an additional test for Class M building materials. It is suitable for testing the molten dripping and combustion performance of hot-melt materials under the action of a primary heat source. It can test flexible and thin materials, such as cellulose in thermal insulation wadding.

Compliance Standards

NF P92-505
EU 95/28/EC
ECE R118 Annex 7

Technical Specifications

Name	Thermal Radiation Dripping Test Apparatus
Power supply	220V, 50Hz
Base size	425*300mm
Maximum height of the instrument	680mm
Weight	13kg

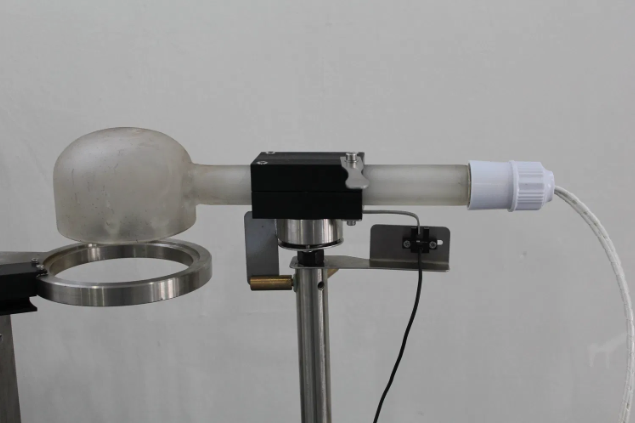

NF P92-505 Melting Material Dripping Testing Machine diagram

Key Features

All tooling is made of stainless steel, which is aesthetically pleasing and corrosion-resistant
The radiation support is rotatable, with a rotation angle greater than 90 degrees, facilitating sample installation
The sample installation height is adjustable
Electric radiator
The radiant heat output is linearly adjustable; the radiant heat is automatically adjusted via power control
The radiation hood is made of quartz glass with an opening diameter of 100mm ± 5mm
The thermal radiation at a distance of 30mm from the lower surface of the radiation hood is 3W/cm³
The sample holder is made of a stainless steel ring with an inner diameter of 118mm
The receiving tray has an inner diameter of 118mm and a depth of 12mm, and is stuffed with cotton
Automatic timing reminder for sample ignition
