UL 94 Foam Plastic Horizontal and Vertical Combustion Integrated Machine
Price:
USD 3300-3500/set
MOQ:
1set
Delivery Time:
30 days
Brand:
GOLD
Product Description

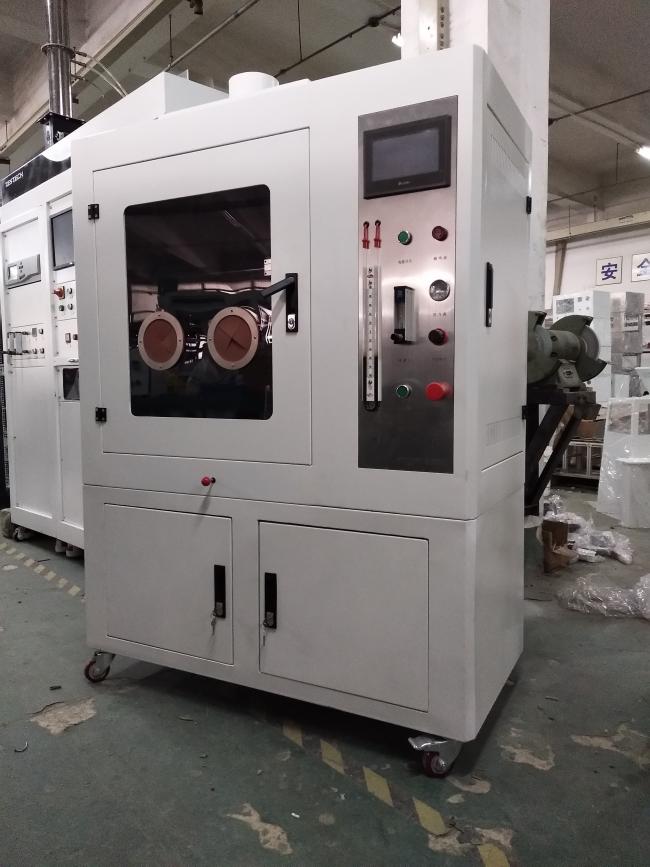

UL 94 Foam Plastic Horizontal and Vertical Combustion Integrated Machine
The UL94 horizontal and vertical flammability tester is designed for testing the flammability characteristics of plastic components used in electronic and electrical equipment. This comprehensive testing system evaluates key performance indicators including flammability, burning rate, flame spread, burning intensity, and flame retardancy.
Compliance Testing Standards
- Horizontal burning test standard: UL94HB (ASTM D 635, IEC 60695-11-10, IEC 60707, ISO 1210)
- Vertical burning test standard: UL 94 V-0, V-1, or V-2 (ASTM D 3801, IEC 60695-11-10, IEC 60707, ISO 1210)
- 500W (125mm) vertical burning test standard: 5VA or 5VB (ASTM D 5048, IEC 60695-11-20, IEC 60707, ISO 9772)
- Thin material vertical burning test standard: VTM-0, VTM-1, or VTM-2 (ASTM D 4804, ISO 9773)
- Combustion testing standards for horizontally expanded foam materials: HF-1, HF-2, or HBF (ASTM D 4986, ISO 9772)
- Burner standards: ASTM D 5025, ASTM D 5207, ISO 10093, ISO 103351
Advanced System Features
- Steel-structured test chamber with volume greater than 0.75 cubic meters for optimal clean air supply
- Large observation window with dark-colored inner wall providing illumination below 20 Lux for clear combustion observation
- Top-mounted exhaust system automatically vents test gases post-experiment
- Industrial design with ergonomic interface for convenient operation and user-friendly experience
- US-made HUMBOLDT flame source with 9.5±0.3mm inner diameter conforming to ASTM D5025 standards
- Adjustable burner angles at 0, 20, and 45 degrees with sliding mechanism for precise positioning
- Durable stainless steel horizontal and vertical sample holders with sliding rail structure
- High-pressure pulse automatic ignition system for stable and reliable operation
- Imported precision rotor flowmeter and differential pressure meter for accurate gas control
- Programmable logic controller (PLC) + touchscreen for automated control, detection, and data storage
- Automatic timing, calculation of linear combustion rate, and multiple test method switching
- Safety features including flame impact time reminder and automatic gas shut-off
- Optional 50W and 500W flame calibration packages with ±0.1℃ accuracy thermocouples
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 220V 50/60Hz |
| Socket | Equipped with grounding port |
| Gas Source | Methane or propane gas (user supplied) |
Standard Included Accessories
- 304 Stainless Steel Flame Height Gauge
- Horizontal and Vertical Combustion Sample Holder
- 0.5mm Accuracy Stainless Steel Ruler
- Gas Hose Clamps
- Product Instruction Manual
- Certificate of Conformity
- Wooden Crate Packaging for Safe Transportation
Optional Equipment
- Elevated Platform
- 50W Flame Calibration Device: Heating time from 100±2℃ to 700±3℃ is 44±2s
