Temperature Uniformity Less Than 2 Degrees Celsius Concrete Rapid Freeze Thaw Test Machine ASTM C666 Instrument Weight Approximately 200kg Durable Equipment
Price:
USD 2000-2355/set
MOQ:
1set
Delivery Time:
30days
Brand:
GOLD
Product Description

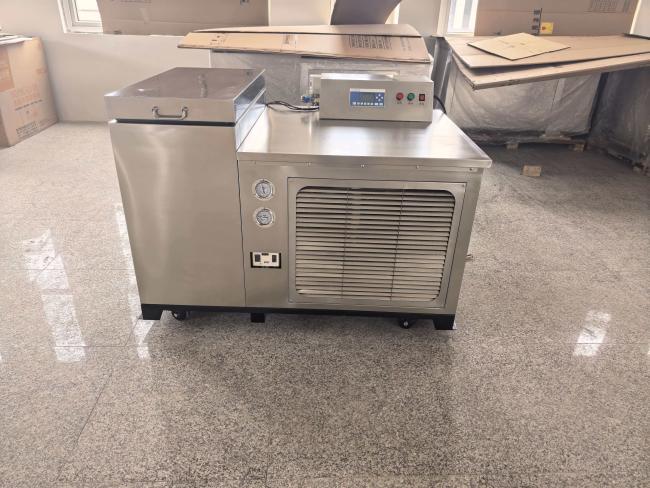

ASTM C666 Concrete Rapid Freeze Thaw Test Machine
The ASTM C666 Concrete rapid freeze thaw test machine uses the water-freeze-thaw method to test the freeze-thaw resistance of concrete specimens with an appearance requirement of 100×100×400 mm. It can hold three sets of specimens (10 specimens including one central specimen) at a time. During testing, specimens are placed in test rubber cylinders filled with water, which are then positioned in a specimen tank containing antifreeze. The machine relies on cooling or heating of the antifreeze to freeze and thaw specimens within the rubber cylinders, completing the freeze-thaw test cycle.
The equipment operates fully automatically without human intervention. It automatically stops after completing the set number of tests (default: 50 cycles) and issues an audible alert to indicate test completion. To continue testing, the cycle count can be incremented and the machine restarted.
Compliance Standards
- GB/T50081-2002 Standard for Test Methods of Mechanical Properties of Ordinary Concrete
- GB/T50082-2024 Standard for Test Methods of Long-Term Performance and Durability of Ordinary Concrete
- JGJ55-2000 Specification for Mix Proportioning Design of Ordinary Concrete
- JTJ053-4 Specification for Tests of Cement Concrete in Highway Engineering
- JTGE30-2005 Specification for Tests of Cement and Cement Concrete in Highway Engineering
- National Electric Power Industry Standard DL/T5150-2001 Specification for Tests of Hydraulic Concrete
- SL352-2006 Specification for Tests of Hydraulic Concrete
- JG/243-2009 Equipment for Testing the Freeze-Thaw Resistance of Concrete
- JGJ/T193-2009 Standard for Evaluation of the Durability of Concrete
- ASTM C666 Standard Test Method for the Rapid Freeze-Thaw Capacity of Concrete
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Voltage | AC380V/20A Three-phase Four-wire |
| Measurement Accuracy | ±0.1℃ |
| Display Resolution | 0.06℃ |
| Maximum Specimen Capacity | 3 groups + 1 central specimen (Total 10 specimens) |
| Temperature Range | -25℃ to 25℃ (User-adjustable) |
| Concrete Specimen Block Size | 100×100×400 mm |
| Rubber Bucket Size | 120×120×500 mm |
Key Features
- Low-power compressor with 3P imported refrigeration system for quiet operation indoors or outdoors
- Efficient heating system without traditional heating elements, reducing power consumption and extending component lifespan
- All-in-one unit design for easy mobility within laboratory environments
- Environmentally friendly operation with low noise, energy efficiency, and space-saving compact design
Test Parameters
The freeze-thaw cycle ranges from 2.5 to 4 hours, with thawing time not less than 1/4 of the freeze-thaw cycle. Specimen center temperature reaches -18±2℃ at freezing completion and 5±2℃ at thawing completion. Cooling time is 1.5 to 2.5 hours, heating time is 1.0 to 1.5 hours, temperature difference between specimen center and surface is less than 28℃, and standard cycle count exceeds 300 cycles.
Product Configuration
- Freeze-thaw unit: 1 unit
- Antifreeze concentrate: 22 kg (dilutable with 50% tap water)
- Specimen rack: 1 unit
- Rubber buckets: 10 units
- 18B20 sensors: 5 units (including one spare)
- Serial cable: 1 unit
- Software CD: 1 disc
- Instruction manual and warranty card: 1 copy
- Founder commercial PC: 1 unit (optional)
- DT-W18 motion meter: 1 unit (optional)
