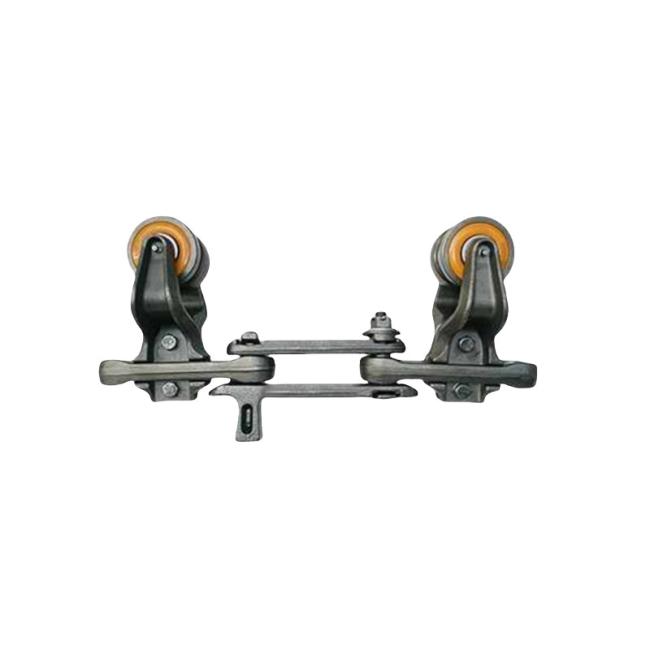

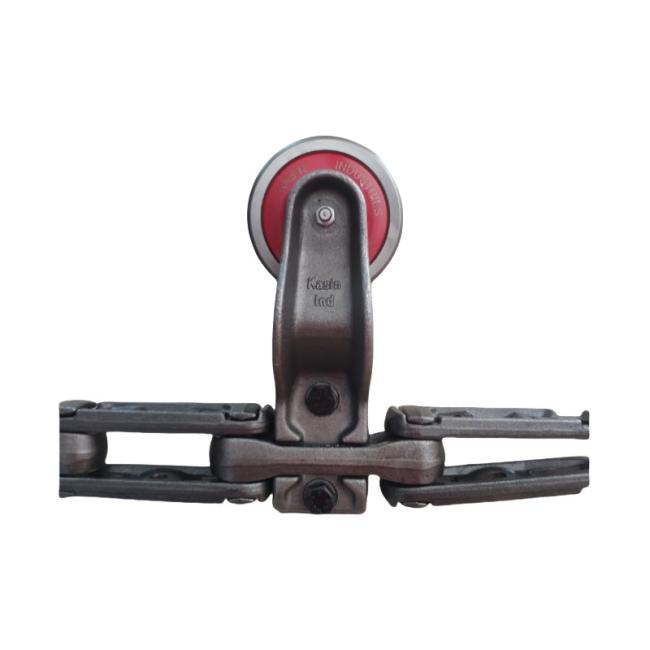

Precision Die Forged Parts Slide Frames / Conveyor Chains For Industrial Conveyors
Precision Die Forged Slide Frames & Conveyor Chains for Heavy-Duty Industrial Conveyors
Description :
Our precision die-forged slide frames and conveyor chains are engineered for extreme durability and reliable performance in heavy-duty industrial conveying systems. Manufactured using advanced die-forging technology, these components deliver superior strength, wear resistance, and longevity even in the most demanding material handling environments.
Key Features & Benefits :
✔ Premium Die-Forged Construction – High-strength alloy steel (4140, 4340, or custom grades) for maximum load capacity and impact resistance.
✔ Precision Engineered – Tight tolerances (±0.1mm) ensure smooth operation and minimal maintenance.
✔ Heavy-Duty Performance – Designed for mining, cement, steel plants, and bulk material handling.
✔ Extended Service Life – Heat-treated and surface-hardened for abrasion and fatigue resistance.
✔ Customizable Designs – Available in various sizes, shapes, and configurations to fit specific conveyor systems.
Product parameters :
1. Material Specifications
-
Base Materials:
-
Alloy Steel: 4140, 4340, 42CrMo4 (DIN 1.7225)
-
Carbon Steel: C45, 1045
-
Optional: Stainless Steel (304/316) for corrosive environments
-
-
Material Standards:
-
ASTM A668, DIN 17200, JIS G4105
-
Hardness: HRC 38-55 (heat-treated)
-
2. Manufacturing Process
-
Die Forging:
-
Closed-die forging under 10,000-ton press
-
Grain flow optimization for maximum strength
-
-
Machining:
-
CNC milling/turning (±0.1mm tolerance)
-
Boring/threading for precise assembly fit
-
3. Dimensional Specifications
|
Component |
Size Range |
Load Capacity |
|---|---|---|
|
Slide Frames |
100-2000mm (L) |
5-50 tons static load |
|
Conveyor Chains |
Pitch: 50-300mm |
3-30kN tensile strength |
|
Attachment Plates |
Thickness: 10-50mm |
Custom hole patterns |
Applications :
-
Mining & Quarrying: Ore/coal transport, crushing systems
-
Cement & Steel Plants: Clinker, slag, and raw material handling
-
Bulk Material Processing: Grain, fertilizer, and aggregate conveyors
-
Automotive & Manufacturing: Assembly line conveyor systems
Why Choose Our Forged Conveyor Components?
✅ High-Performance Materials – ASTM/EN compliant steel alloys
✅ Advanced Manufacturing – Precision die forging + CNC machining
✅ Rigorous Quality Control – UT, MPI, and hardness testing
How do I place an order?
You can contact us directly with your specifications, and our team will assist you through the ordering process.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
