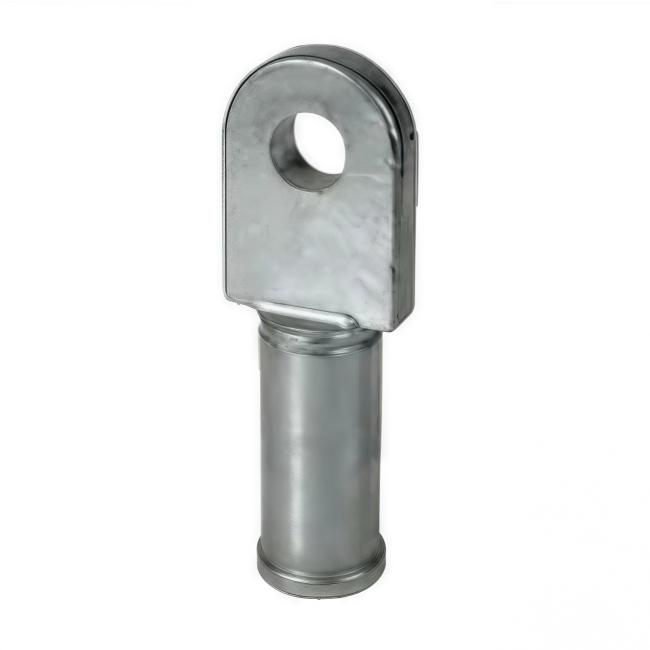

U-shaped tongue clips forged from carbon steel for composite insulators

Description :
Our hot-forged carbon steel U-shaped tongue clips are precision-engineered suspension components designed for composite polymer insulators in high-voltage transmission lines. These heavy-duty clamps provide secure mechanical anchoring while preventing insulator slippage, even under extreme wind and ice loads up to 100kN.

Key Features & Benefits :
✔ Superior Material - Forged from ASTM A105/A694 carbon steel with 345MPa yield strength
✔ Precision Fit - CNC-machined tongue-groove interface ensures ±0.2mm alignment accuracy
✔ Corrosion Protection - Standard hot-dip galvanizing (86μm) or optional Dacromet coating
✔ Load-Tested - 2.5x safety factor over rated mechanical load (RML) per IEC 61952
✔ Streamlined Design - U-shape reduces wind-induced vibration by 40% vs. traditional designs

Technical Specifications :

Applications :
• 110kV-1000kV transmission line dead-ends
• Railway catenary system suspensions
• Offshore wind farm insulator strings
• HVDC tower jumper supports

FAQ :

1. What makes your forged tongue clips superior to cast alternatives?

• 3x Longer Fatigue Life: Forged grain structure withstands 1 million+ load cycles (per IEC 61325)

• Higher Strength: 345MPa yield strength vs. 240MPa for typical cast steel

• Precision Fit: CNC-machined grooves maintain ±0.2mm tolerance vs. ±1.5mm for cast parts

2. Which carbon steel grades do you recommend for different environments?

3. How do you prevent insulator rubber damage?

• Radiused Edges: 2.5mm minimum radius on all contact surfaces

• Non-Mar Design: Electropolished grooves eliminate sharp edges

• Load Distribution: Optimized U-shape reduces point loading by 60%

4. What testing do your clips undergo?

• Mechanical:

  • 2.5x RML static load test (IEC 61952)

  • 50,000+ vibration cycles (IEEE 1523)

• Environmental:

  • 3000hr salt spray (ASTM B117)

  • -40°C impact toughness test

5. What's your production lead time?

• Standard: 4-6 weeks
