380V 3PH 50Hz MPI Magnetic Particle Inspection Equipment With Demagnetization

Price Negotiable

Price: Discount if Large Quantity

MOQ: 1 pcs

Delivery Time: 15-30 days

Brand: TESTECH

Product Description

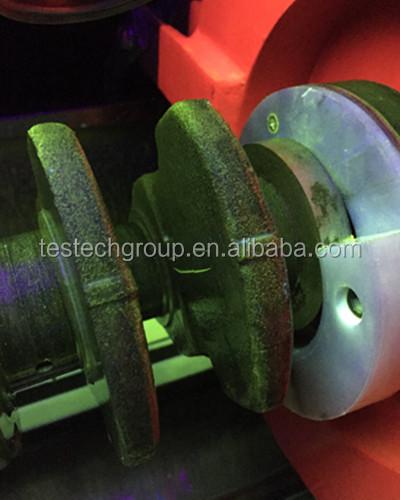

CDG-4000 Fluorescent Magnetic particle inspection(MPI)

Main Technical Parameters:

Circumferential magnetization current: AC 0-4000A effective value, continuously adjustable;
Longitudinal magnetization magnetic potential:AC 0-18000AT effective value, continuously adjustable;
Magnetization sensitivity: 15/50A 1 type specimen shows clearly;
Duty cycle: ≥25%;
Electrode spacing: 0-900mm, manually adjustable;
Way of working: manual / automatic;
Ways of magnetization: circumferential, longitudinal and compound magnetization;
Adjustment way of electrode spacing: manual;
Way of clamping: pneumatic;
Way of demagnetization: decay-type demagnetization;
Circumferential demagnetization current: AC 4000-0A, effective value, continuously adjustable; Longitudinal demagnetization magnetic potential: AC 18000-0AT, effective value, continuously adjustable;
Demagnetization effect: ≤240A/M (0.3mT);
UV radiation intensity: ≥1000μW/㎝² of workpiece surface away the light source 380mm;
Power supply: three-phase four-wire 380V±10% 50HZ instantaneous 80A;
Outline dimension: 2200 (length) *800(width) *1500(height) mm;
Weight: about 1600Kg.
