High Accuracy Car Paint Coating Thickness Tester Measuring Range 0-1250um
Price:
Bulk discount
MOQ:
1 Piece
Delivery Time:
3-7 days
Brand:
TESTECH
Product Description

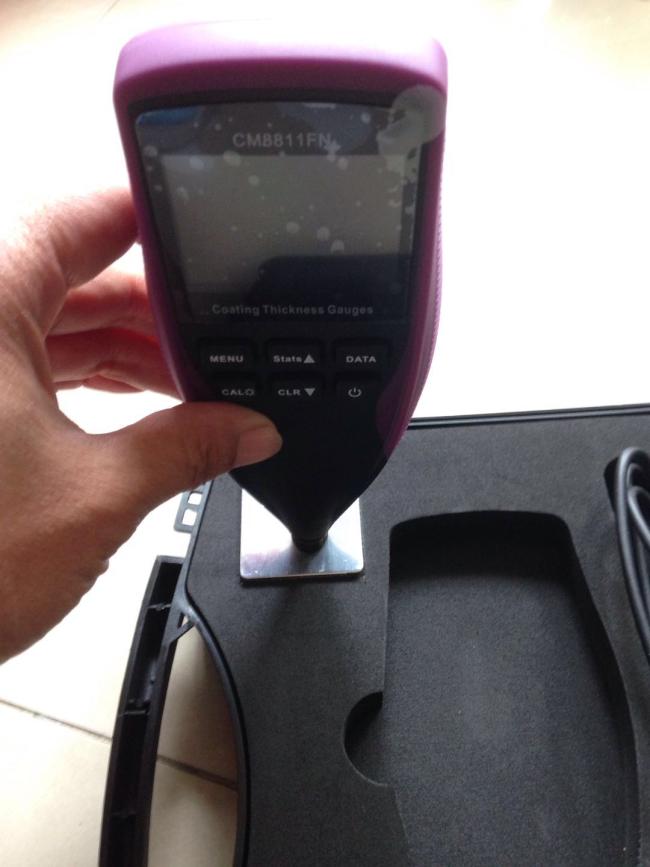

CM8811FN High Accuracy Car Paint Thickness Gauge Coating Thickness Meter Measuring Range 0-1250um
Specification
- Range:
- 0-1250μm /0-50mil
- Resolution:
- 0.1μm/mil
- Accuracy:
- ±(2%+2μm) / ±(2%+0.1mil)
- Display:
- TFT 320*240 LCD
- Test Limits:
- Surface curvature: convex 1.5 mm / concave 7 mm
- Minimum test surface:
- Φ8mm
- Minimum thickness of base material:
- 0.4mm
- Operation Condition(not in high magnetic field):
- Temperature: 0-40C
- Humidity: 20%RH-90RH
- Product Size:
- 166 x 68 x 30mm
- Weight:
- 180g (batteries included)
Function
- Measuring: Continuous and Single Measurement available
- Display: Simultaneously display Measuring Value, Average Value, Maximum Value, Minimum Value and Standard Deviation
- Memory: 80 data store
- Unit: Metric/Imperial switchable (mil/um selectable)
- Backlight: Brightness adjustable, clear and easy reading under any light condition
- Alarm: Set higher and lower alarm range for measuring
- Calibration: Zero-in, 2 points calibration and multi-point calibration selectable
- Battery: Low battery indication
- Language: English and Chinese selectable (customization for other languages available)
- Data Delete: delete a single data or clear all the data

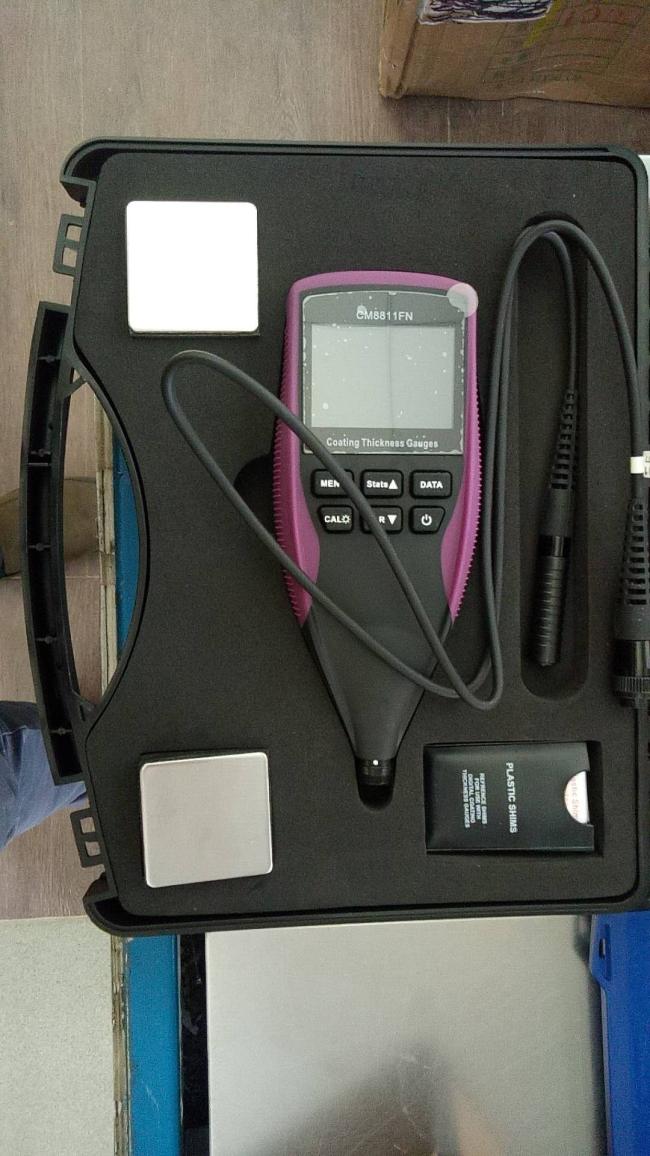

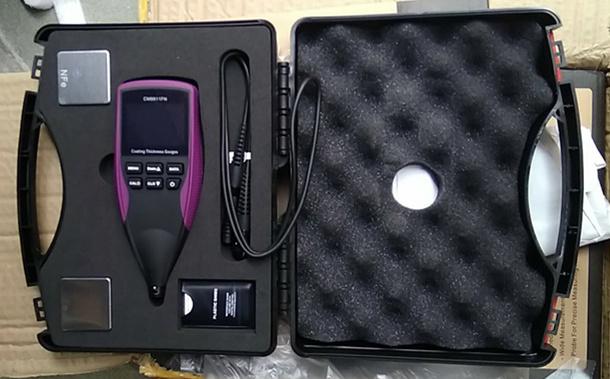

Standard Packing
- Fe / NFe 2 in one probe x1
- Plastic test shims x 1set
- Calibration plates (Steel and Aluminum).
- Instruction manual x 1

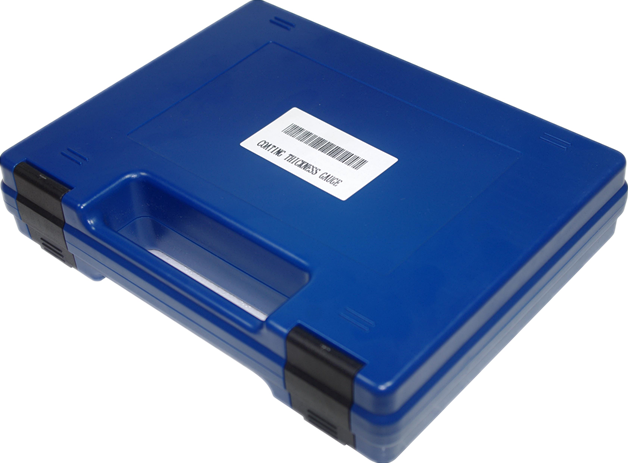

- Carrying tool case x 1
