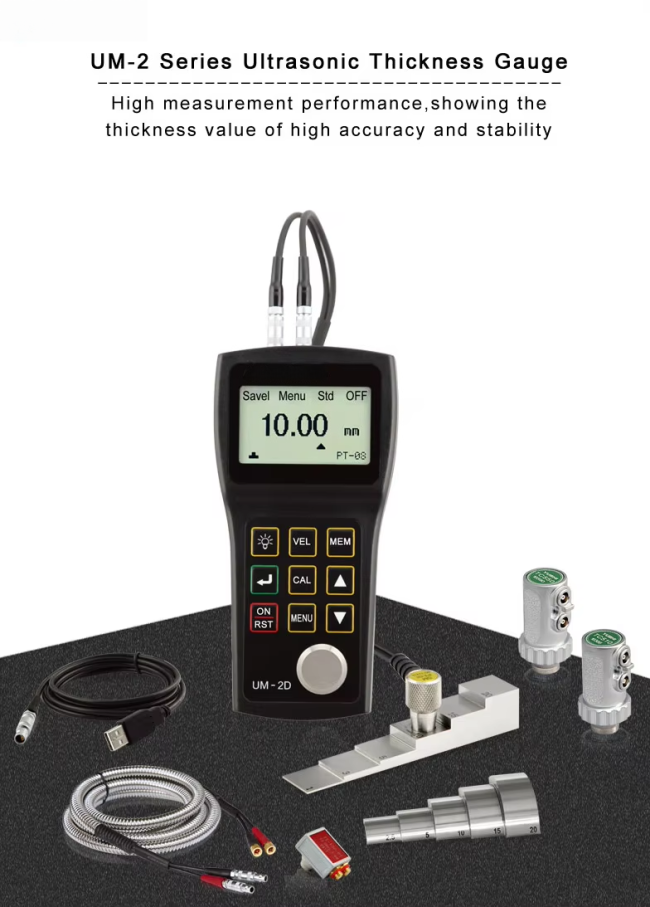

UM-2 Series Ultrasonic Through Coating Thickness Tester 0.8-300mm Measurement Range PT-08 Probe

Price Negotiable

Price: Bulk discount

MOQ: 1 Piece

Delivery Time: 3-7 days

Brand: TESTECH

Product Description

High Accuracy Thickness Tester Portable Ultrasonic Thickness Gauge for Metal

0.01mm or 0.001 inches resolution
Measuring range: 0.8-300mm
128×64 pixels display with backlit
500 thickness readings can be stored
Hi-Low alarm setting
Minimum thickness capture
V-sound path correction
7 types of built-in transducer compensation line
Through paint/coatings(UM-2D)

0.01mm/0.001inch Resolution, 500 Thickness Values can be stored, Alarm Mode, Minium Capture, Two-point Calibration, Automatic V-Path Correction and Thru Painting Function etc.

Application

UM-2 series ultrasonic thickness gauges is used for measuring Metal and Nonmetal Materials, include Plastic thickness measurement, Steel/Pipe thickness measurement, PVC thickness measurement and Glass Plates thickness measurement,etc. UM-2D has through coating function.

Display Screen	128×64 Dot Matrix LCD Display (EL Backlight)
Working Principle	Using dual crystal probe pulse-echo method, echo-echo method (UM-2D)
Standard Mode Measurement Range(Steel)	0.8mm~300mm (depending on the probe used and the material being measured)
Coating Mode Measurement Range(Steel)	3mm~20mm (using standard probe, UM-1D)
Measurement Lower Limit for Pipe (Steel)	Φ20mm×3.0mm(PT-08 probe) Φ15mm×2.0mm(PT-06 probe) The measuring error is up to ±0.1mm
Measurement Error	Low limit to 10mm: ±0.05mm 10mm to high limit: ± (0.5%H+0.01) mm Note: H is the actual thickness of the testing material
Repeatability	0.05mm
Measurement Resolution	0.01mm or 0.001in
Unit	Millimeters or Inches
Calibration Mode	Zero Calibration, Two-Point Calibration
V Path Correction	Automatic
Measurement Update Rate	4Hz
Material Sound Speed Range	1000~9999 m/s or 0.0394~0.3937 in/us
Memory Function	Divided into 5 arrays, can store 500 thickness values
Minimum Value Checking	Move the probe along the surface of the testing material, the gauge is able to find the thinnest point automatically.
Warning Function	Thickness limits can be set, with alarm sound prompts for measurements outside the limits.
Velocity Storage	Velocities of 5 different materials can be stored totally
Working Language	Can choose Chinese, English

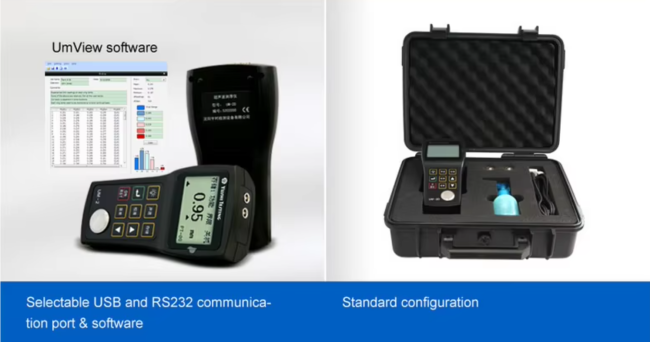

Communication Interface	USB interface or RS232 serial port (optional)
Application Software	UMView software for the transmission, storage, analysis, and editing of measurement data (optional).
Power Supply	Two 1.5V AA alkaline batteries (Warning with low battery voltage
Operating Time	Alkaline batteries can be used for 200 hours (without backlight)
Instrument Shut-off	Auto OFF after 5 minutes of inactivity
Working Temperature	-10℃~+50℃,-20°C in special requirements
Size	149mm×73mm×32mm (H×W×D)
Weight	210g (including battery)
